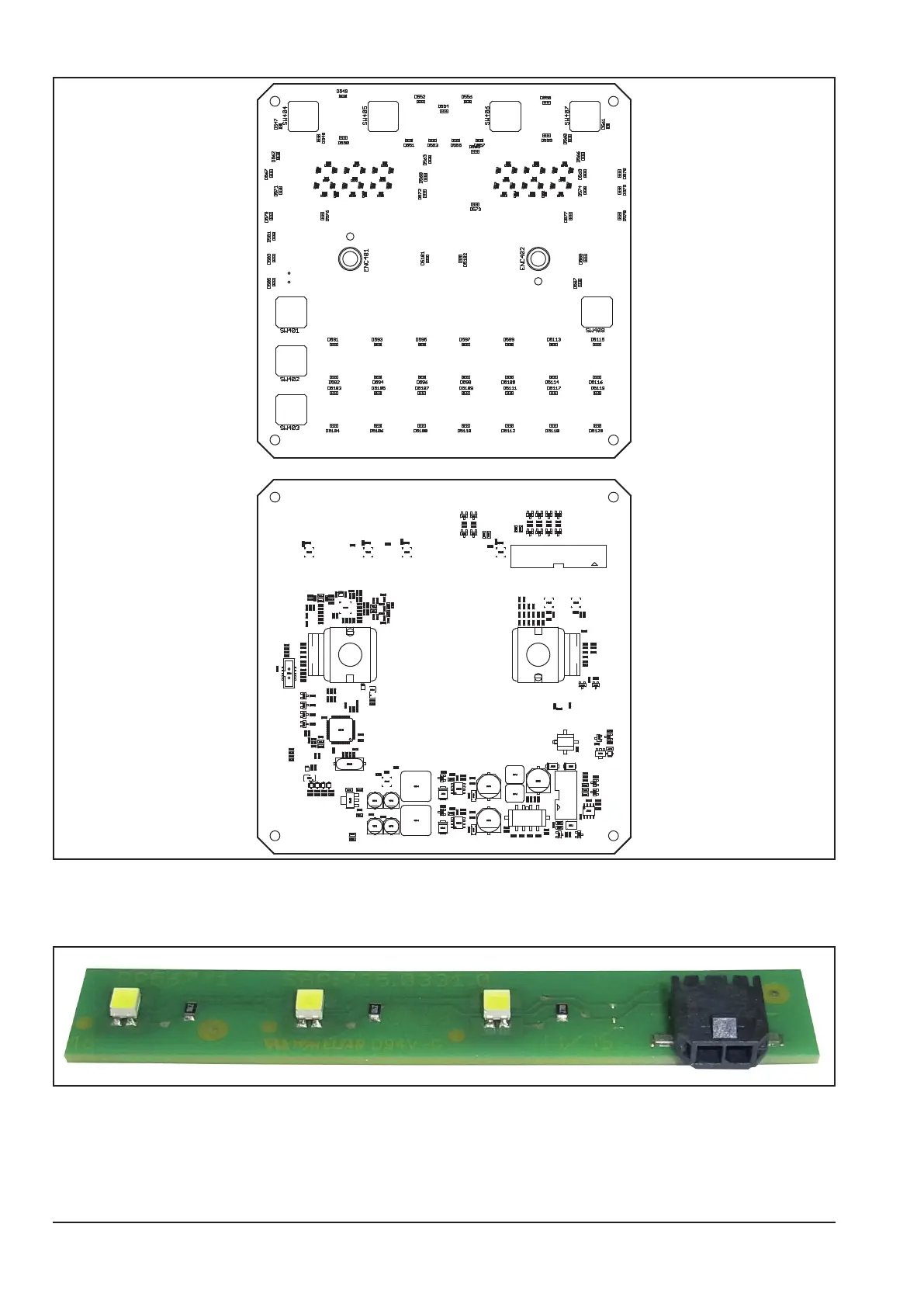

Picture pc-board BF07 (Basic Plus wire feeder)

X301

X401

X201

X701

Since week 10 in 2015 the front panels of the wire feeder are equipped with longer at ribbon cables. With this it

is possible to use the wire feeder horizontally in a lying way and turn the front panel by 90°.

Picture pc-board SF17

The pc-board SF17 is used for illuminating the interior of the MF08 wire feeder and is connected to the front panel

pc-board (connector X701).
