LORCH V27 - Pc-board DK-GLCL3; Compatibility; Picture pc-board DK-GLCL3

page 24
Pc-board DK-GLCL3
Since 02.12.2011 the pc-board DK-GLCL was replaced by the pc-board DK-GLCL3.
Since 09.03.2012 the secondary diodes 713.0298.0 were replaced by a new diode tyoe 713.0301.0.
The new diode types are NOT compatible with the “old” pc-board DK-GLCL.
Compatibility
diode type DK-GLCL DK-GLCL3
713.0298.0 ok ok
713.0301.0 X ok

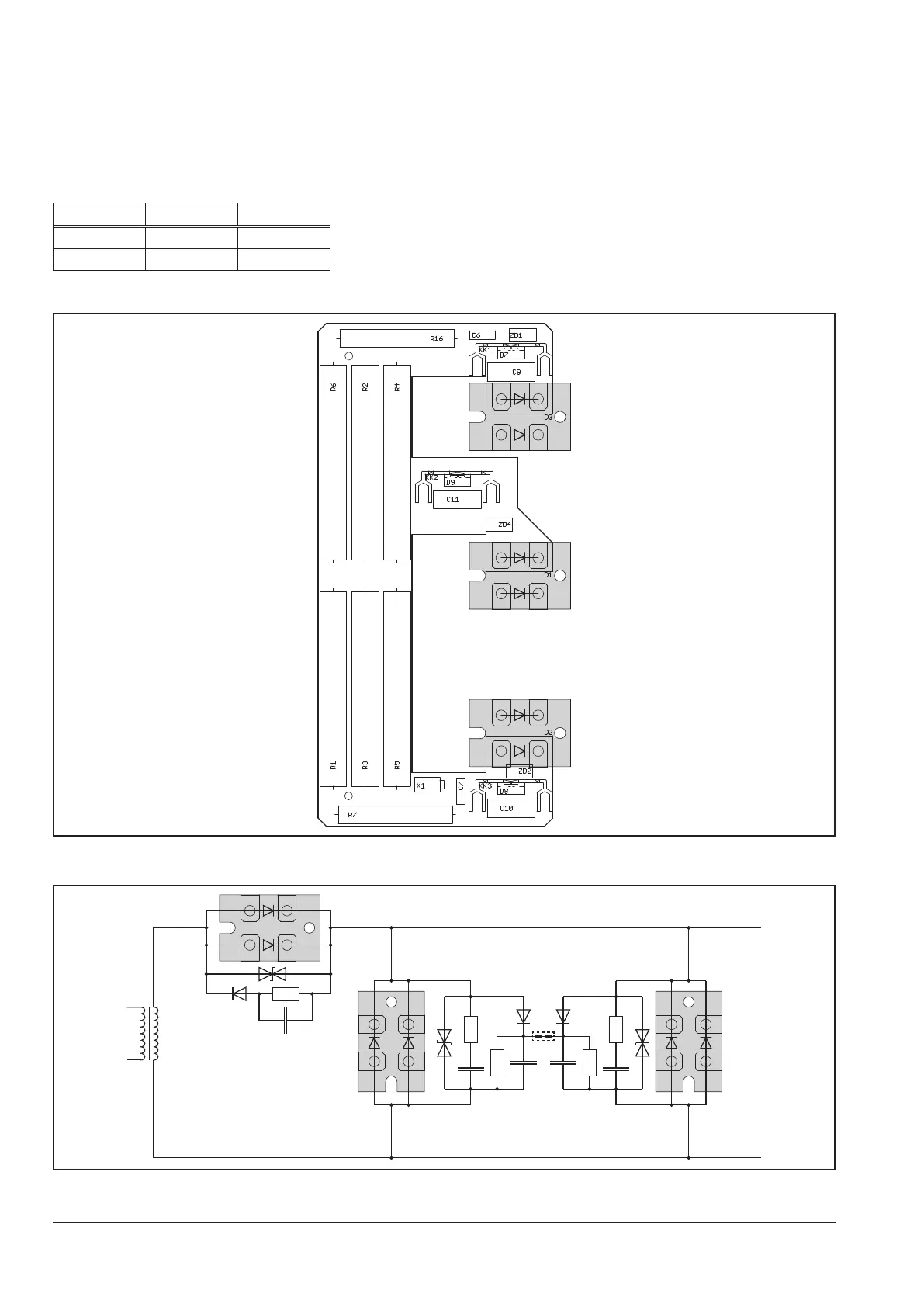

Picture pc-board DK-GLCL3
Schematic
D3
D2
D1
X1
