LORCH V27 - Inside diagram diodes; PE protection (optional); Schematic

page 45
Inside diagram diodes
PE protection (optional)
The PE protection is an optional feature. As sson as a current >15A is owing via the protective earth wire of the
mains cable, the machine stops immediately and the error code E16 “primary overcurrent protection 1” is dis-
played.

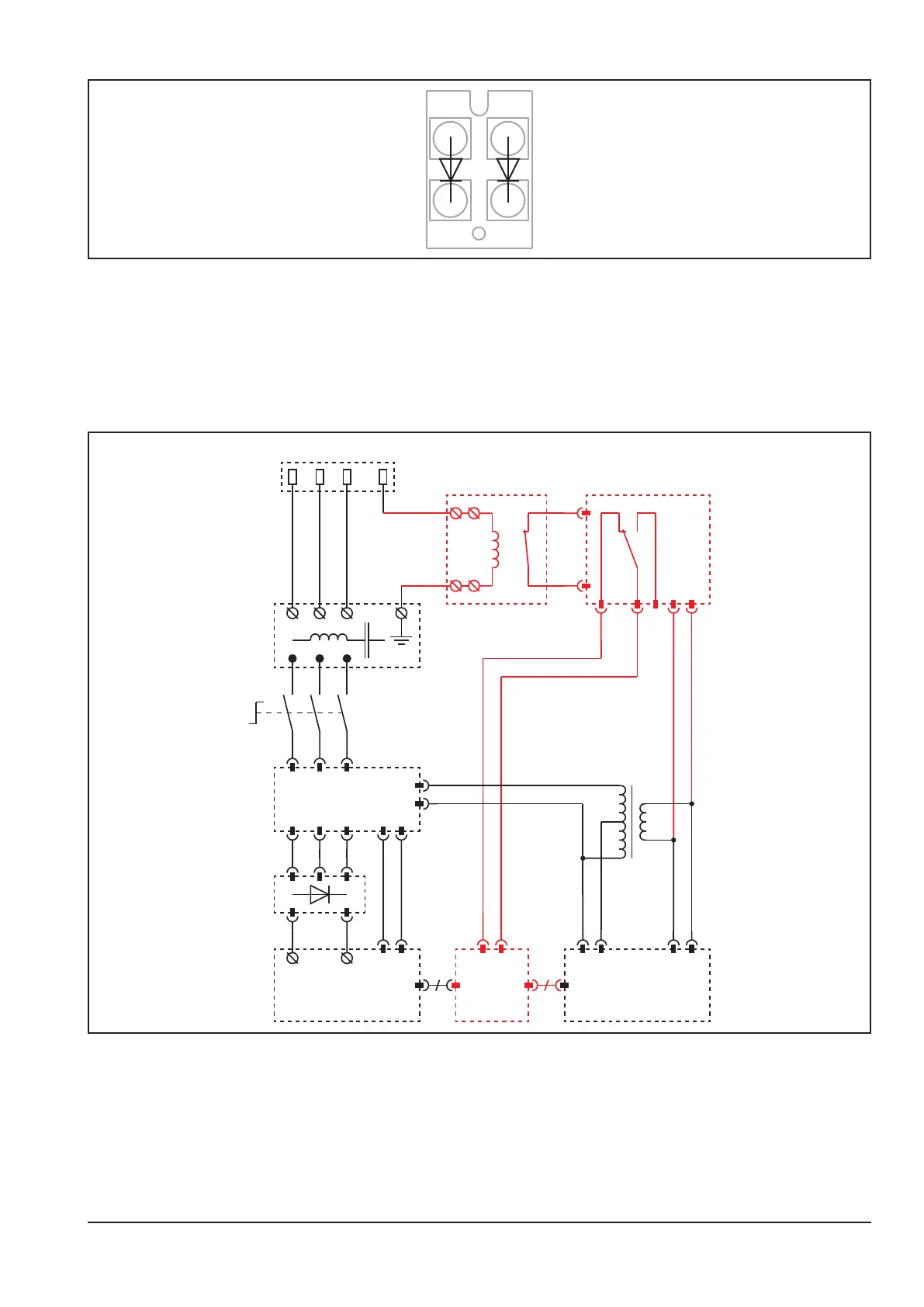

Schematic
L1 L2 L3 PE
16 16
MAPRODCDRV
ADP08
SF07
PWRUP
X4
X10
X6 X9
X2
X1
X2
X11
X1
X2
X3
X1
X2
