T
able 3: PS2 Controller dimensions for installation
Dimension in mm [in]
W
eight in kg [lbs]
W1
W2
W3
H1
H2
H3
D1
207
170
164
352
333
300
124
4.5
[8.15]
[6.69]
[6.46]
[13.86]
[13.11]
[11.81]
[4.88]
[9.9]

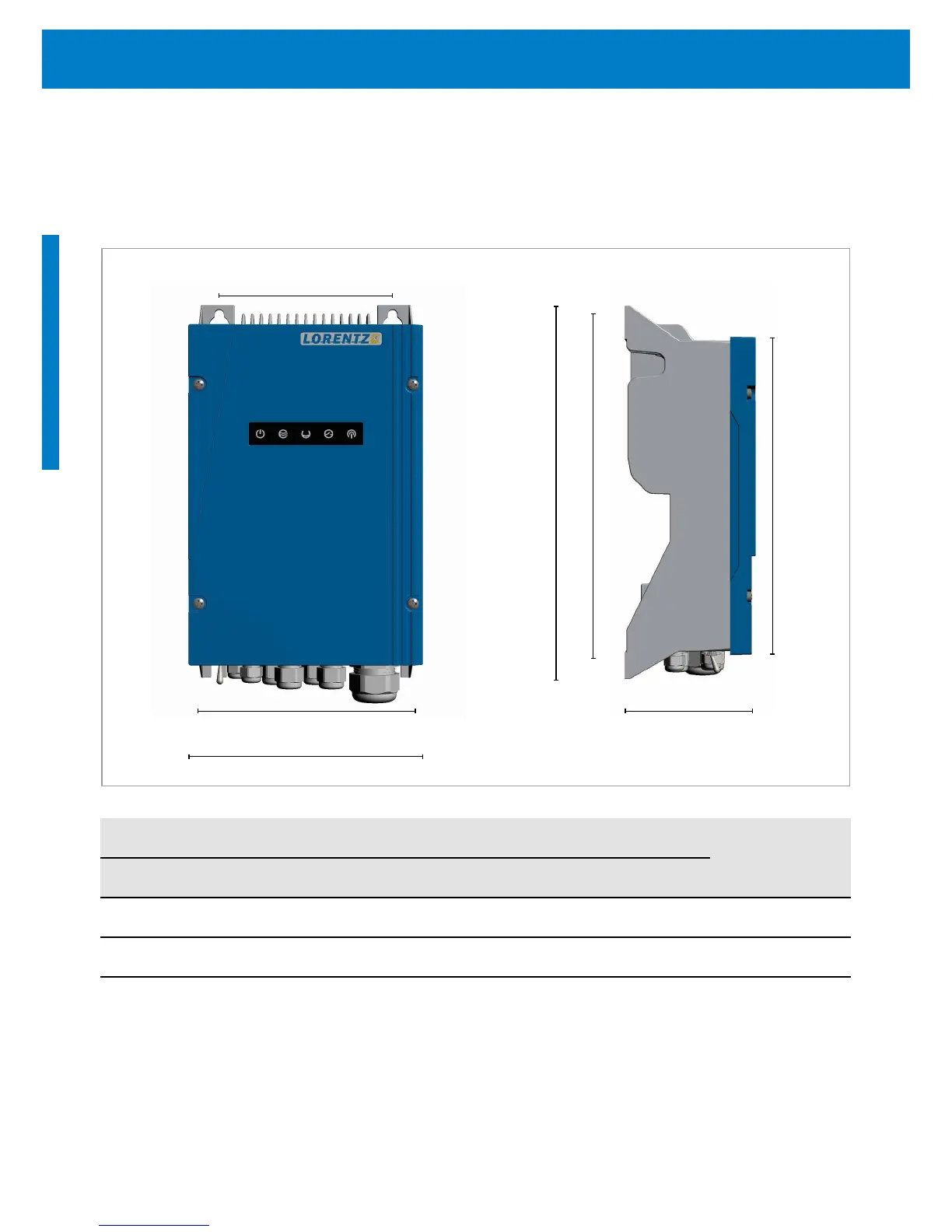

Figure 3:
PS2 Controller dimensions for installation
W1
W3
H3
H1
H2
D1
W2
20
Contr
oller Installation
21
23
Table of Contents
Default Chapter
6
Table of Contents
6
1 Declaration of Conformity
8
2 Receipt, Storage and Handling
8
3 Product Specification
9
General
9
Features
9
Approvals / Certification
9
Naming
10
4 Operating Conditions
11
5 Safety Instructions
12
6 Pump System Sizing & Layout Diagrams
14
Pump System Sizing
14
System Layout: Submersible Pumps
15
System Layout: Surface Pumps
16
System Layout: Surface Boost Pumps
17
7 Controller Installation
18
General
18
Controller Elements
20
Technical Data of the Controller
20
Controller Placement
21
Mounting, Space and Ventilation Requirements
21
Wiring the Controller
23
Terminal Descriptions
24
Pump Wiring
28
Pump Accessories Wiring
29
Input Wiring for Solar-Direct Systems
30
Input Wiring for Battery-Based Systems
31
Grounding
32
PS2 Pool Pump Systems
33
PS2 Boost Pump Systems
33
8 Pump Installation
34
General Instructions
34
Pipe Sizing
34
Cable Splicing
35
Pump System Type
35
Submersible Pumps
36
Wiring the Pump
36
Installation and Handling
38
Installation Depth
39
Removal
39
Additional Features
40
Safety Rope
40
Plastic Pipes
40
Flow Sleeve
40
CS-F Surface Pumps
41
Placement and Foundation
41
Pump Motor Wiring
42
Installation and Handling
43
Suction Head
44
Initial Start-Up
45
Filling Pump with Water
45
Rotary Direction
46
Final Check-Up
46
Pool Surface Pumps
47
Placement and Foundation
47
Pipe Sizing
48
Installation and Handling
49
Initial Start-Up
50
Filling Pump with Water
50
Rotary Directon
51
Final Check-Up
51
Service and Maintenance
52
General Maintenance
52
Cleaning the Strainer
52
Use with Salt Water or Sea Water
52
Replacement of the Mechanical Seal
53
Boost Surface Pumps
54
Placement and Foundation
54
Pump Motor Wiring
54
Installation Position
55
Filtering
56
Plumbing Design
57
Freeze Protection
58
9 Pump Accessories Installation
59
Well Probe
59
Float Switch (Full Tank Shut-Off)
61
Water Meter
62
Sacrificial Anode
62
Liquid Level Sensor
63
Pressure Sensor
63
Sun Sensor Module
64
Surge Protector
65
PV Disconnect with Lightning Surge Protection
65
10 Operating the Pump
66
LED Status
67
Starting the Pump
70
Time Delays
70
Parameter Setting
71
11 Pumpscanner / CONNECTED
72
Pumpscanner
72
Password Access
72
PS Communicator & Pumpmanager
73
12 Troubleshooting
74
Pump Does Not Run
74
Pump Attempts a Restart Every 120 Seconds
74
Flow Rate Is too Low
74
General Checklist
75
