Replacing the Hard Drive (LH160 Series)
24
24.2 Installing the Hard Drive
The steps to install a hard drive differ depending on the number of channels your DVR has.
24.2.1 8/12/16–Channel
WARNING
Make sure that the power cable has been disconnected before changing the hard drive.

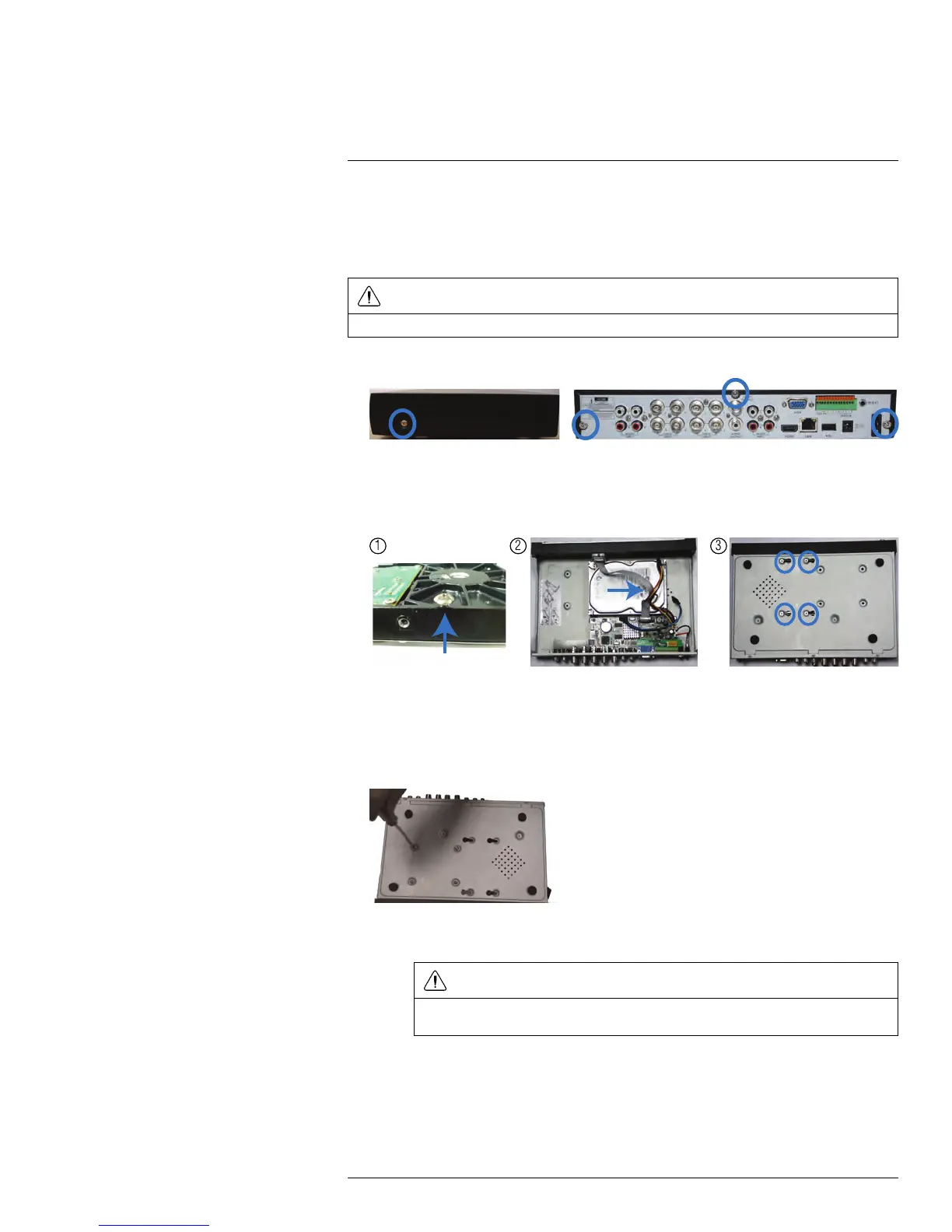

1. Remove the screw from each side panel and rear panel (x3) of the cover.
2. Gently slide the cover away from the rear panel and lift off. Be careful of sharp edges.
3. Next, install the hard drive. This step depends on if you are installing a 3.5” or 2.5” hard
drive.
If you are installing a 3.5” hard drive:
3.1. Insert 4 hard drive screws into the bottom of the hard drive and tighten them 1/2 of the way.
3.2. Place the hard drive in the screw slots with the power and data connectors facing left (if looking
at the DVR from the front), and slide the hard drive into place.
3.3. Tighten the hard drive screws to secure the hard drive in place.
If you are installing a 2.5” hard drive:
3.1. Place the hard drive over the screw holes. Hold the hard drive in place and turn the DVR over
carefully. Insert 4 screws to secure the hard drive. Turn the DVR back over.
WARNING
Make sure to hold the hard drive in place while inserting the hard drive screws and turning
the DVR to avoid damaging the DVR.
#LX400007; r. 1.0/12121/12123; en-US
142
