Connecting the Camera
3
2. Connect the camera to the PoE switch using the included Ethernet cable
(or a CAT5e Ethernet cable of up to 300ft (91m)). The PoE switch will pro-
vide power and video transmission the same way as your NVR.

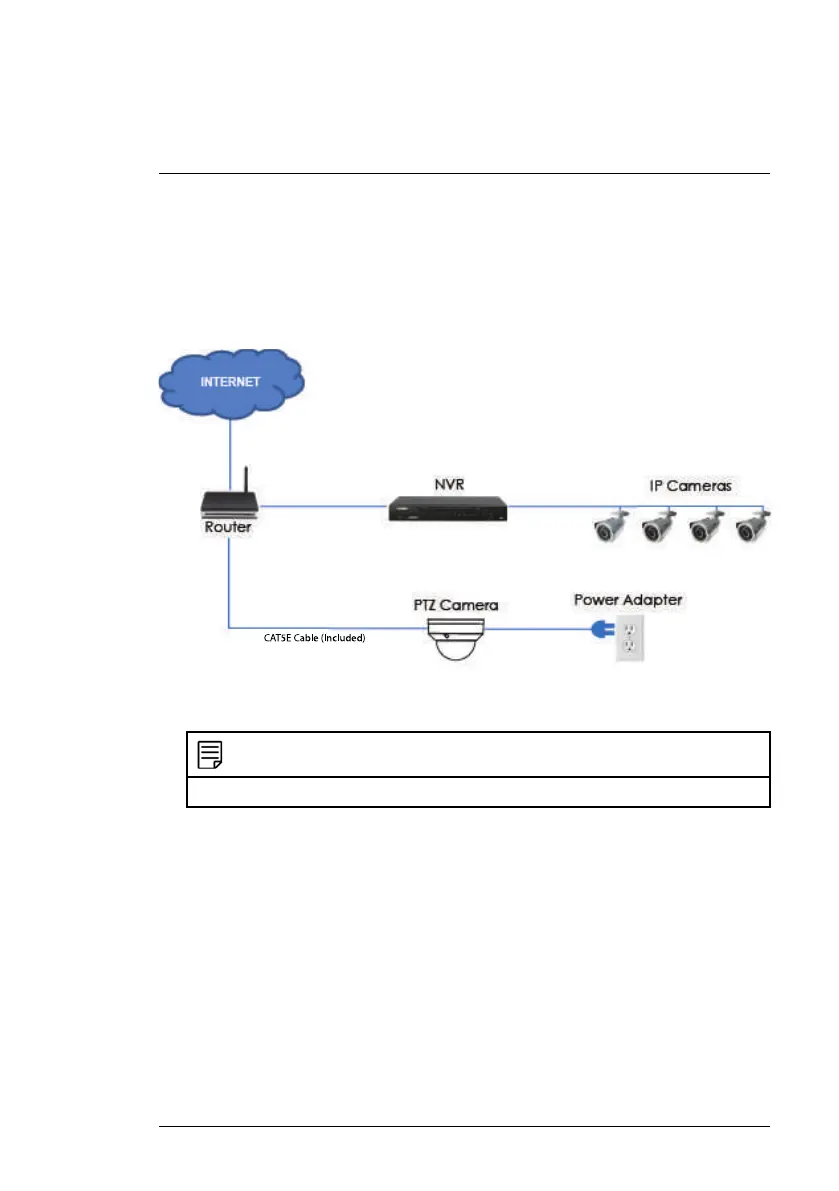

Step 1 of 2 — OPTION B: Connecting the camera to your local network
using a power adapter:
1. Connect the camera to a power adapter (not included).
NOTE
For power requirement specification, see 8 Technical Specifications.
2. Connect the camera to a router in the same network as your NVR using
the included Ethernet cable (or an Ethernet cable of up to 300ft (91m)
rated CAT5e or higher).
Step 2 of 2: Add the camera to your NVR:
• For instructions on adding the PTZ camera to the LNR / NR Series NVRs ,
see 3.3 Adding the PTZ Camera to the LNR / NR Series NVRs, page 6
• For instructions on adding the PTZ camera to the LNK Series NVRs, see
3.4 Adding the PTZ camera to the LNK Series NVRs, page 7
#LX400075; r.41474/41994; en-US
5
