4.2.2 Ceiling Mounting
To ceiling mount the camera:
1. Use the mounting template included with the camera mounting kit to mark
holes for the mounting screws (x3) and camera cable.

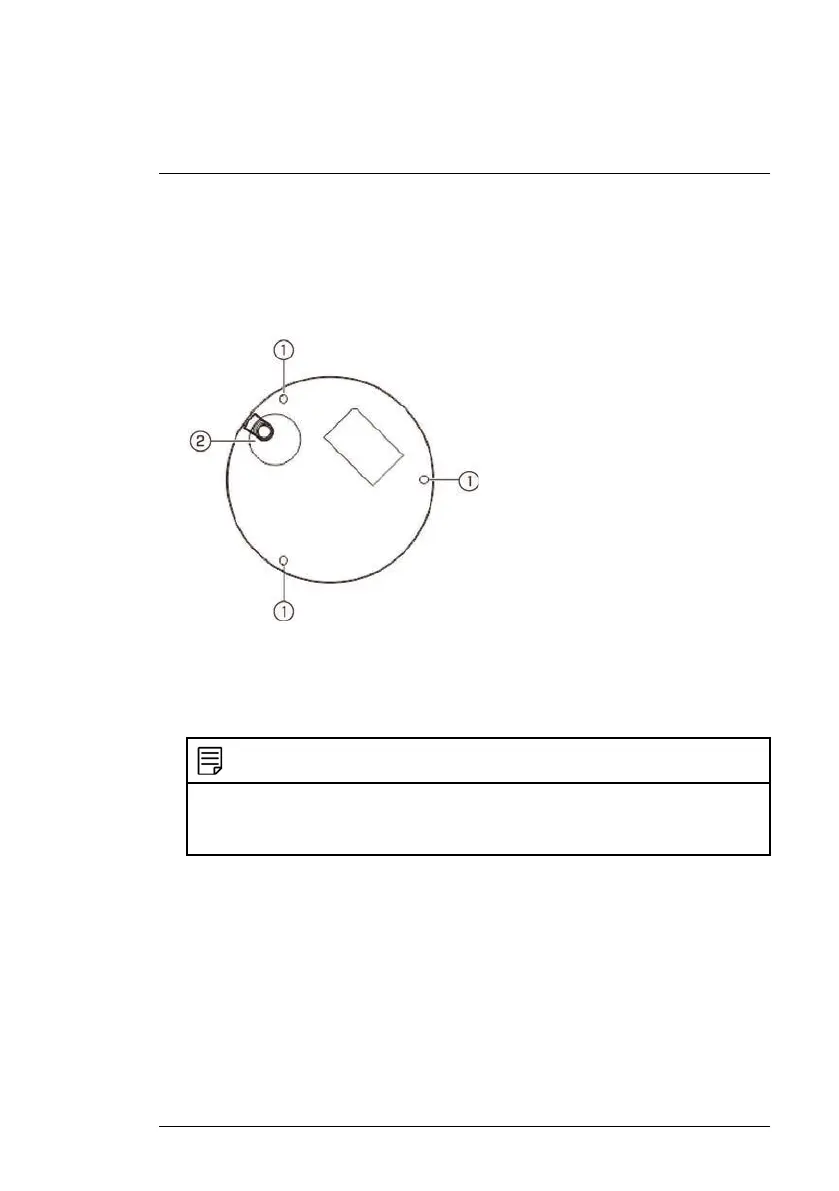

1. Mounting screw holes; 2. Camera cable hole (Optional)
2. Drill holes for the mounting screws, drywall anchors (optional) and camera
cable (optional).
NOTE
• Use the included drywall anchors if installing on a drywall surface.
• If you are planning on running the cables along the mounting surface, there is no
need to drill a hole for the camera cable.
3. Use the Allen key included with the camera mounting kit to loosen the
dome camera cover screws (x3). Remove the dome camera cover.
4. Connect the camera cables as shown in 3 Connecting the Camera.
5. Mount the dome camera base to the mounting surface using the mounting
screws (x3) and drywall anchors (x3) (optional) included with the camera
mounting kit.
6. Replace the dome camera cover and tighten the dome camera cover
screws using the included Allen key.
7. Remove the vinyl film from the dome cover once installation is complete.
