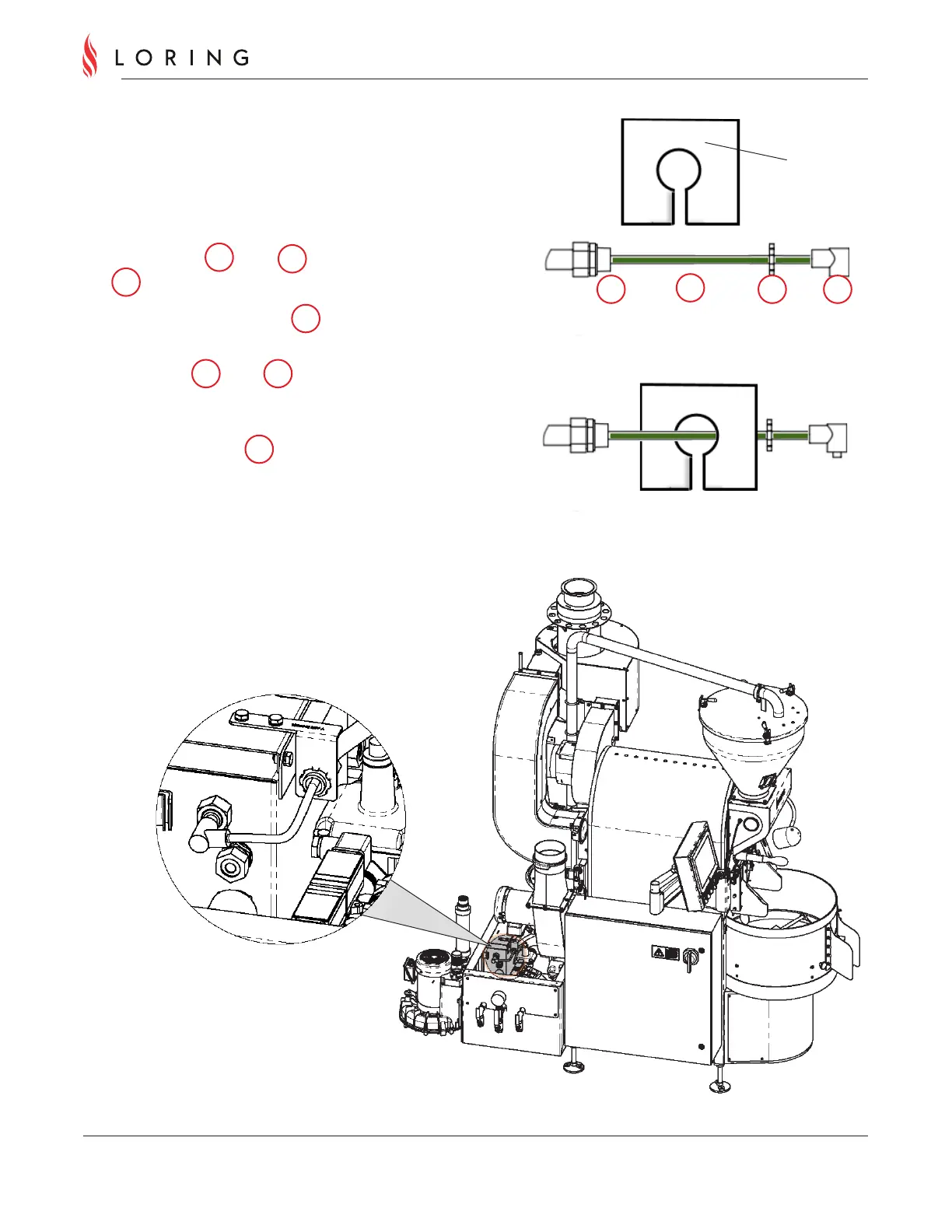

Routing the Ignition Wire
1. Locate the bulkhead hole in the ignition wire
support bracket.
2. Separate
3
from
2
exposing the green wire
1
between them .
3. Pass the green wire
1
through the slot in the
bulkhead hole in the bulkhead bracket.
4. Tighten
3
onto
2
around the bulkhead hole
securing the ignition wire assembly to the bracket.
5. Locate the ignition wire terminal and plug the
ignition wire boot
4
on it.
Ignition
wire
support
bracket
32
1
4
4
