Loring Falcon S15 - Air, Gas, and Water Connections

S15 Assembly and Installation Guide
Page 44 of 50
Loring Smart Roast Proprietary – This document is controlled by
Document Control. By printing this document, it will become a “Reference” copy.
Users are responsible for verifying that it is the latest revision available.
1008286 Rev B

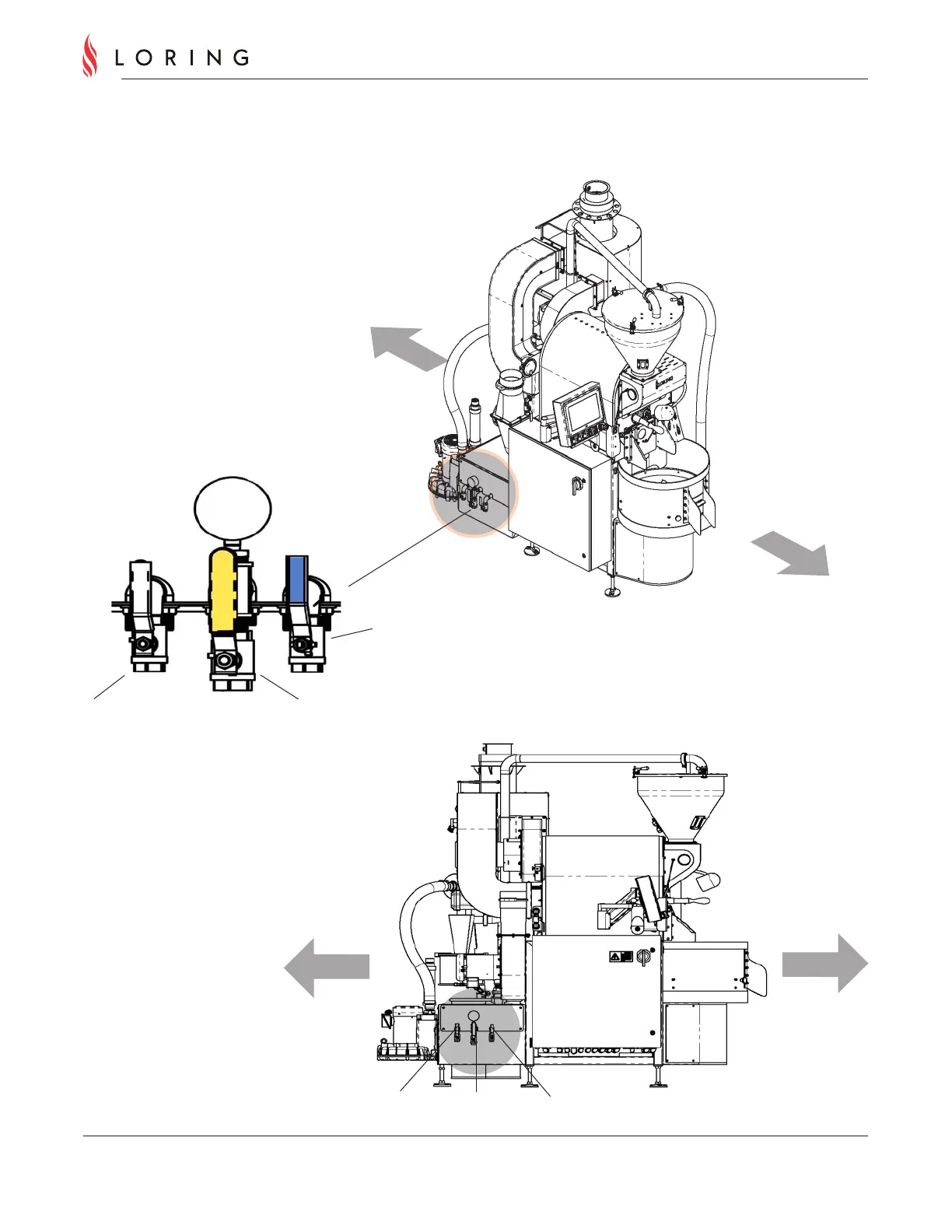

Air, Gas, and Water Connections
Front
Front
Back
Back
Air Water
Gas
Water Hookup
1/2" FNPT
Connection
Natural Gas or
Propane Hookup
3/4" FNPT
Connection
Compressed Air
Hookup
1/2" FNPT
Connection
