Tryer Handle
Move Roaster to Final Location
The Tryer is a small component that inserts into the front of the roaster, but is not attached. It is
used for sampling beans during the roasting process. The Tryer ships in the Small Parts Box, and
inserts in the Tryer Port in the front of the roaster.
At this point, the roaster is ready to be moved to its nal location in preparation for nal installation
(stack and utility hookups). Use a forklift and lift from the center of the roaster body. Do not place
fork lift points under the Cooling Tray area or far to the back under the Utility Tray. See Attach
Roaster Feet on page 15.
Position the roaster carefully in its nal location to align with stack openings, and ensure clearances
all the way around the roaster. Clearances are described in the Pre-Installation Guide.

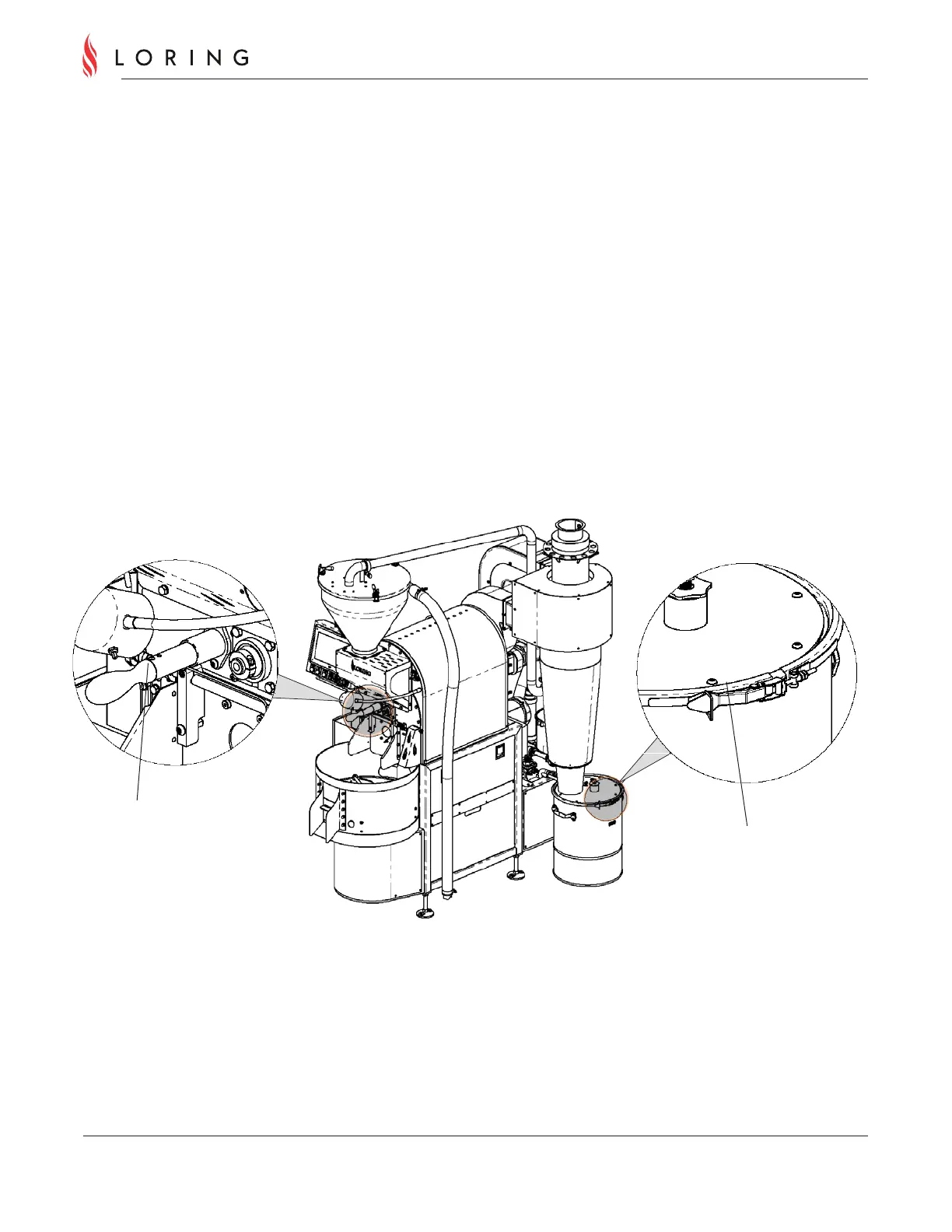

Tryer
Front Right View, fully assembled
Chaff Barrel Clamp
