Direct Spark Ignition (DSI)

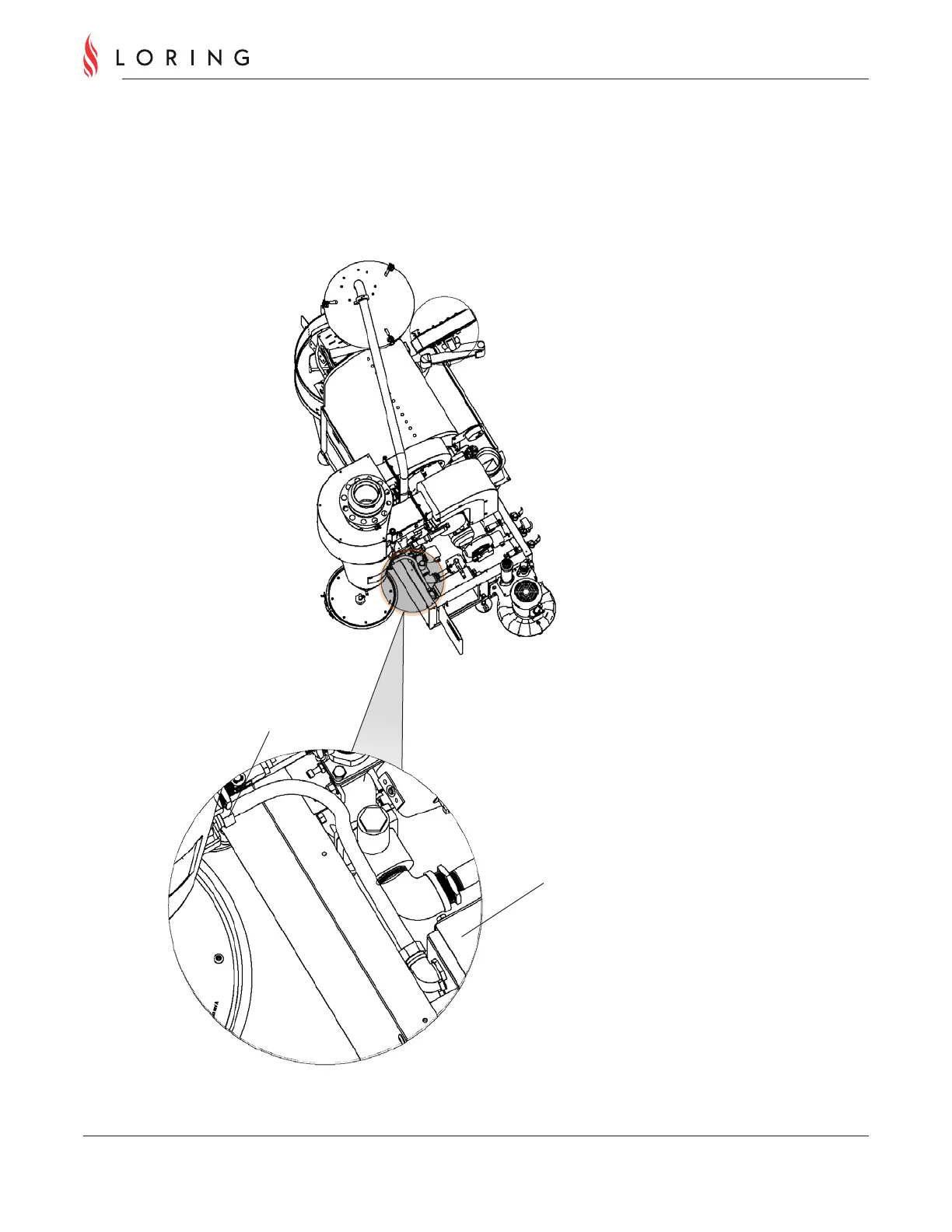

In this option, the DSI ignition wire is already terminated on the CBS. From the CBS, the ignition
wire is routed as shown below and passes through a bulkhead into the Utility Tray Electrical Cabinet
(UTEC) where it is connected, as shown in the diagram in the facing page.
CBS
Utility Tray
Electrical
Cabinet
(UTEC)
To Next Page
