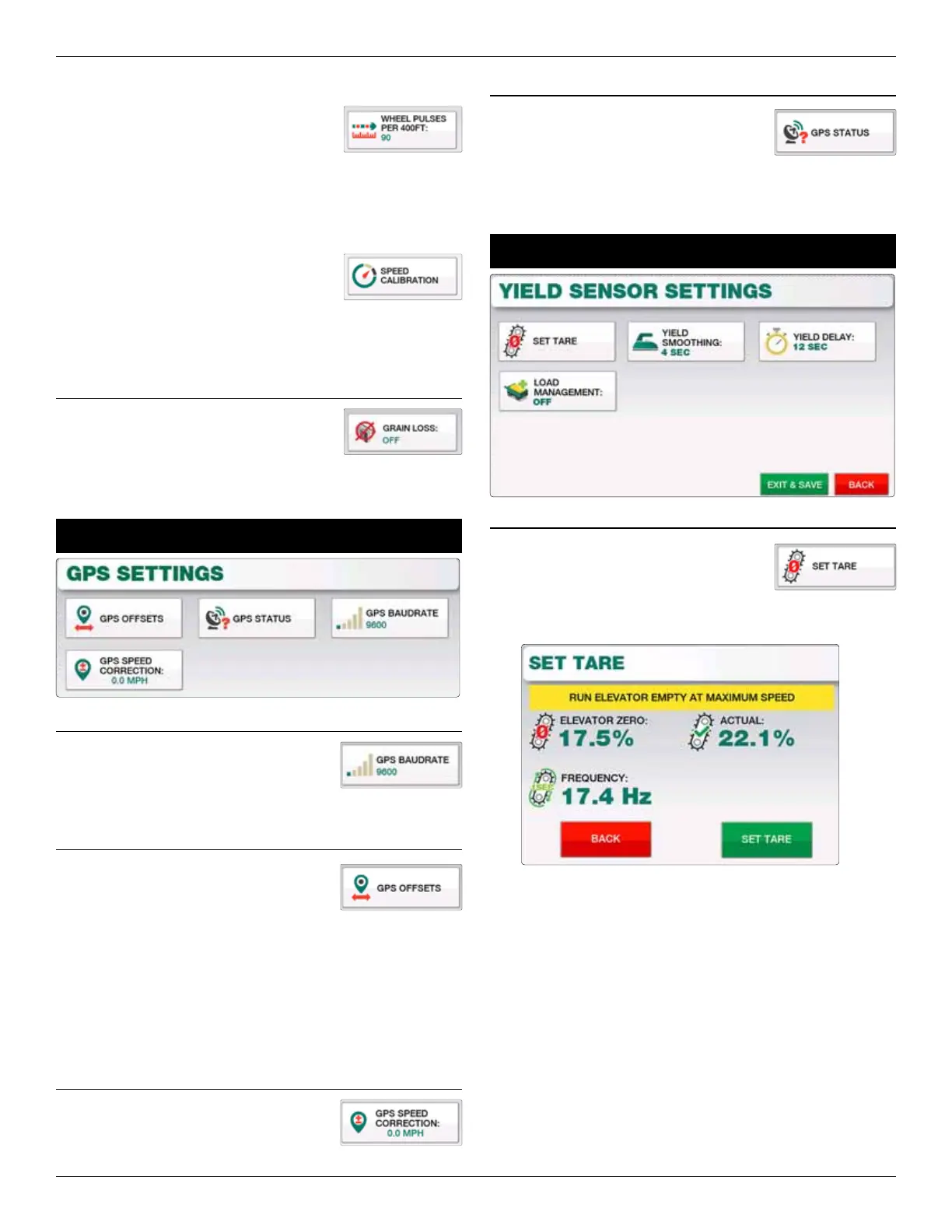

6.4.3 WHEEL puLsEs pER 400fT
is value directly aects the MPH reading
when a sha sensor is used. Perform a Speed
Calibration to properly calibrate the sensor to
your combine. is number may be changed by selecting it and
entering a new value from the numpad.
6.4.4 spEED CALIbRATION
To calibrate the proper Pulses Per 400, rst
measure o 400. Select “Start Calibration”
and drive the 400 distance. Wheel pulses
received will begin to accumulate, press “Stop Calibration” and
select “Exit & Save” to complete the calibration.
6.5 gRAIN LOss
If you have an optional grain loss sensor,
toggle this option to “ON”. When enabled,
use the “Set Zero” button to zero the sensor.
7.0 gpS SeTTingS
7.1 gps bAuDRATE
From the popup select the appropriate
baudrate for your GPS receiver (4800, 9600,
19200, 38400, or 115200).
7.2 gps OffsETs
On rare occasion a GPS receiver may dri
from the center point of the header. Use the
Le/Right and Front/Rear osets to correct
for GPS dri.
Le/Right Oset: Negative (-) values represent a Le Oset.
Positive (+) values represent a Right Oset.
Front/Rear Oset: Negative (-) values represent a Front Oset.
Positive (+) values represent a Rear Oset.
7.3 gps spEED CORRECTION
If on rare occasion the GPS speed is
incorrect, use this option to apply a Positive
or Negative speed correction.
7.4 gps sTATus
Use this page to conrm communication to
your GPS receiver. Information for current
Latitude, Longitude, Number of connected
Satellites, GPS Messages, and GPS Fix Quality are displayed.
8.0 yield SenSor SeTTingS
8.1 sET TARE
Setting the Tare of your combine’s clean grain
elevator should only need to be done once.
Run the elevator at maximum speed while
empty. Once at full speed select the “Set Tare” button, note the
“Elevator Zero, and “Actual” values should now match in value.
Elevator Zero = e currently set zero/tare value of the elevator
Actual = Live elevator reading. Under normal operating
conditions this value should be equal to the zero or above the
zero when harvesting.
Frequency = Displayed in Hz, this represents the Paddles per
Second rate of the elevator.
