cation that shot through the hull the best and follow the instructions on
the following pages for a shoot-thru-hull mounting.
Shoot-thru-hull transducer locations for
high speed or trolling speed operation.
Shoot-thru-hull Installation
1. Make sure the area is clean, dry and free of oil or grease, then sand
both the inside surface of the hull and the face of the transducer with
100 grit sandpaper. The surface of the hull must be flat so the entire
transducer face is in contact with the hull prior to bonding.
Epoxy transducer to hull.
2. Follow the instructions on the epoxy package and mix it thoroughly.
Do not mix it too fast, because it will cause bubbles to form in the ep-
oxy. Apply a small amount on the face of the transducer as shown
above, then spread a small amount onto the sanded area on the hull.

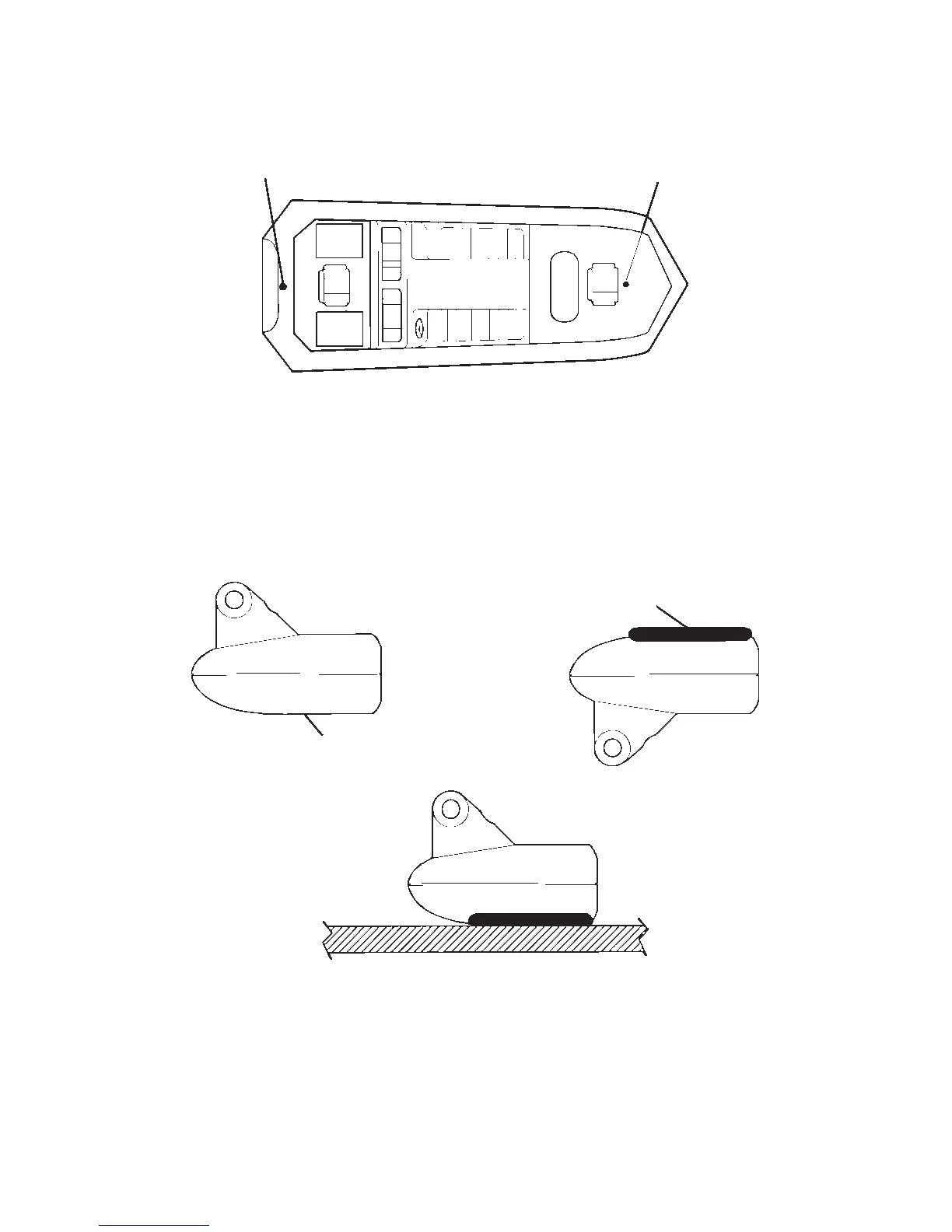

Transducer location
(trolling speed)
Transducer location
(high speed)
Spread epoxy here
Sand this surface
