174

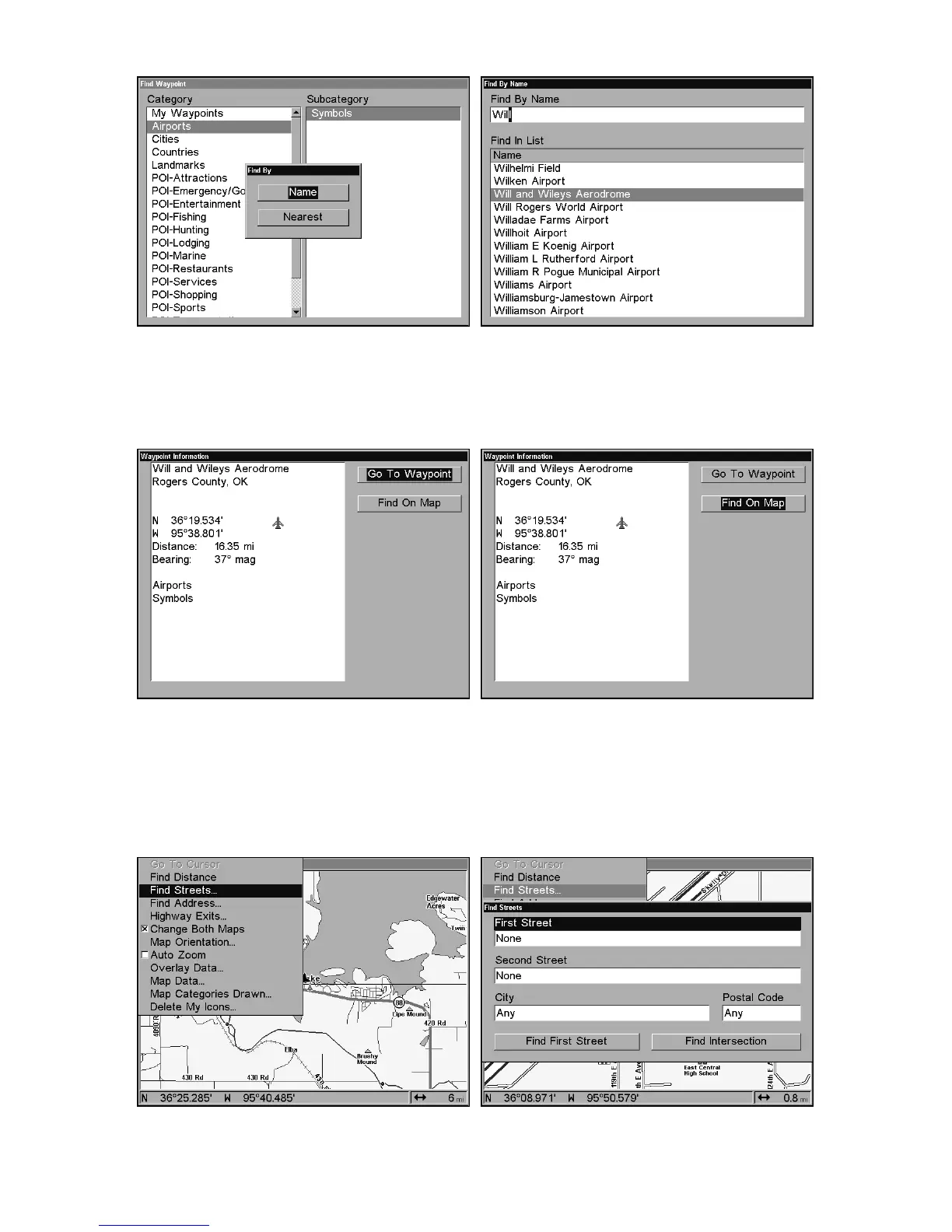

Find by Name option, left, Find by Name menu, right.
4. When the POI's Waypoint Information screen is displayed, you can
choose to "Go To" the POI waypoint by pressing
ENT
or find it on the
map by pressing
→
|
ENT
.
Go To Waypoint POI option, left; Find on Map POI option, right.
Find Streets or Intersections
Find a Street
1. From the Map Page, press
MENU
|
↓
to
F
IND
S
TREETS
|
ENT
and the Find
Streets Menu appears.
Find Streets command, left, Find Streets menu, right.
181
183
Table of Contents
Operation Instructions
1
Table of Contents
3
Sec. 1: Read Me First
9
Capabilities and Specifications: LCX-18C and LCX-19C
11
How Your Sonar Works
13
How Your GPS Works
14
Introduction to GPS and WAAS
16
How to Use this Manual: Typographical Conventions
18
Sec. 2: Installation & Accessories
21
Preparations
21
Transducer Installation
21
Recommended Tools and Supplies
22
Selecting a Transducer Location
22
Shoot-Thru-Hull Vs. Transom Mounting
24
Transom Transducer Assembly and Mounting
24
Trolling Motor Bracket Installation
30
Shoot-Thru-Hull Preparation & Installation
31
Speed/Temperature Sensors
34
Sensor Chart
35
Optional Speed Sensor Installation
36
GPS Antenna/Receiver Module
37
Power Connections
38
NMEA/DGPS Cable Connections
39
NMEA/DGPS Wiring
40
Mounting the Unit: Bracket or In-Dash
41
MMC or SDC Memory Card Installation
44
Other Accessories
45
MMC and Mapcreate
45
Switch Boxes
45
External Speaker
46
Face Cover
47
Sec. 3: Basic Sonar Operation
49
Keyboard
49
Main Menu
50
Power/Lights (Turn Unit on and Off)
50
Satellite Status Page
52
Navigation Page
53
Map Page
53
Sonar Page
54
Sonar Quick Reference
57
Sonar Operations
58
Fish Symbols Vs. Full Sonar Chart
60
Other Free Training Aids
60
Pages
52
Sec. 4: Sonar Options & Other Features
63
ASP (Advanced Signal Processing)
63
Alarms
64
Depth Alarms
64
Zone Alarm
65
Fish Alarm
66
Calibrate Speed
66
Chart Speed
67
Colorline
68
Depth Cursor
70
Depth Range - Automatic
70
Depth Range - Manual
71
Depth Range - Upper and Lower Limits
71
Fastrack
73
Fish I.D. (Fish Symbols & Depths)
73
Fishtrack
75
Frequency (Change Transducer Frequency)
75
Hyperscroll
76
Log Sonar Chart Data
76
Noise Rejection
77
Overlay Data
77
Ping Speed & Hyperscroll
79
Reset Options
81
Reset Water Distance
81
Set Keel Offset
82
Sensitivity & Auto Sensitivity
83
Sonar Color Mode
84
Sonar Page & Sonar Chart Display Options
85
Full Sonar Chart
85
Split Zoom Sonar Chart
86
Split Frequency Sonar Chart
86
Digital Data/Chart
88
Flashgraf
89
Map with Sonar Split Screen
90
Sonar Simulator
90
Surface Clarity
93
Stop Chart
93
Upper and Lower Limits
94
Zoom & Zoom Bar
94
Zoom & Zoom Pan
95
Sec. 5: Sonar Troubleshooting
97
Sec. 6: Basic GPS Operations
101
Keyboard
101
Power/Lights (Turn Unit on and Off)
102
Main Menu
102
Pages
104
Satellite Status Page
104
Sonar Page
104
Navigation Page
106
Map Page
108
GPS Quick Reference
113
Find Your Current Position
114
Moving Around the Map: Zoom & Cursor Arrow Keys
114
Selecting any Map Item with the Cursor
115
Searching
115
Set a Waypoint
117
To Create and Save a Waypoint
117
Navigate to a Waypoint
119
Set man Overboard (MOB) Waypoint
120
Navigate Back to MOB Waypoint
120
Navigate to Cursor Position on Map
121
Navigate to a Point of Interest
123
Creating and Saving a Trail
123
Displaying a Saved Trail
125
Navigating Trails
125
Visual Trailing
126
Navigate a Trail (Forward)
126
Navigate a Back Trail (Backtrack, or Reverse)
128
Transfer Custom Maps and GPS Data Files
129
Custom Maps
129
GPS Data Files
129
Cancel Navigation
131
Sec. 7: Advanced GPS Operations
133
Find Distance from Current Position to Another Location
133
Find Distance from Point to Point
133
Icons
133
Create Icon on Map
134
Create Icon at Current Position
134
Delete an Icon
134
Navigate to an Icon
135
Routes
135
Create and Save a Route
136
Delete a Route
138
Edit a Route
138
Navigate a Route
139
Navigate a Route in Reverse
140
Trails
141
Delete a Trail
141
Edit a Trail Name
141
Edit a Trail Color
141
Edit a Trail Pattern
141
Utilities
142
Alarm Clock
142
Sun/Moon Rise & Set Calculator
142
Trip Calculator
142
Trip down Timer
142
Trip up Timer
142
Waypoints
142
Delete a Waypoint
142
Edit a Waypoint (Name, Symbol or Position)
143
Waypoint Name
143
Waypoint Symbol
143
Waypoint Position
143
Selecting a Waypoint
143
Set a Waypoint by Average Position
143
Set a Waypoint by Projecting a Position
144
Sec. 8: System & GPS Setup Options
145
Alarms
145
Auto Satellite Search
146
Check MMC Files and Storage Space
147
Communications Port Configuration
147
Configure DGPS
148
Configure NMEA
149
Coordinate System Selection
149
To Setup Loran TD
150
Map Fix
150
Customize Page Displays
152
DGPS Status
152
GPS Simulator
152
Hide GPS Features
154
Initialize GPS
154
Pop-Up Map Info
155
Show Map Data
155
Map Auto Zoom
155
Map Data
155
Map Boundaries
156
Fill Water with White
156
Map Overlays (Range Rings; Lat/Long Grid)
156
Map Datum Selection
157
Map Detail Category Selection
157
Map Orientation
158
Navionics Charts
159
To Display a Navionics Chart
159
Port Information
160
To View Port Services Information
160
Tidal Current Information
161
To View Tidal Current Information
161
Tide Information
162
To View Tide Information
163
Pop-Up Help
164
Position Pinning
164
Reset Options
165
Require DGPS
165
Screen Contrast and Brightness
166
Set Language
167
Set Local Time
167
Show WAAS Alarm
168
Software Version Information
168
Sounds and Alarm Sound Styles
169
Track Smoothing
170
Trail Options
170
Delete All Trails
170
Update Trail Option
170
Delete Trail
172
New Trail
172
Trail Visible/Invisible and Other Trail Options
172
Units of Measure
173
Sec. 9: Searching
175
Find Addresses
175
Find any Item Selected by Map Cursor
178
Find Interstate Highway Exits
179
Find Map Places or Points of Interest (POI)
181
Find Streets or Intersections
182
Find Waypoints
186
Sec. 10: Supplemental Material
189
Fcc Compliance
193
Databases Limited Warranty
196
How to Obtain Service
198
Visit Our Web Site
200
