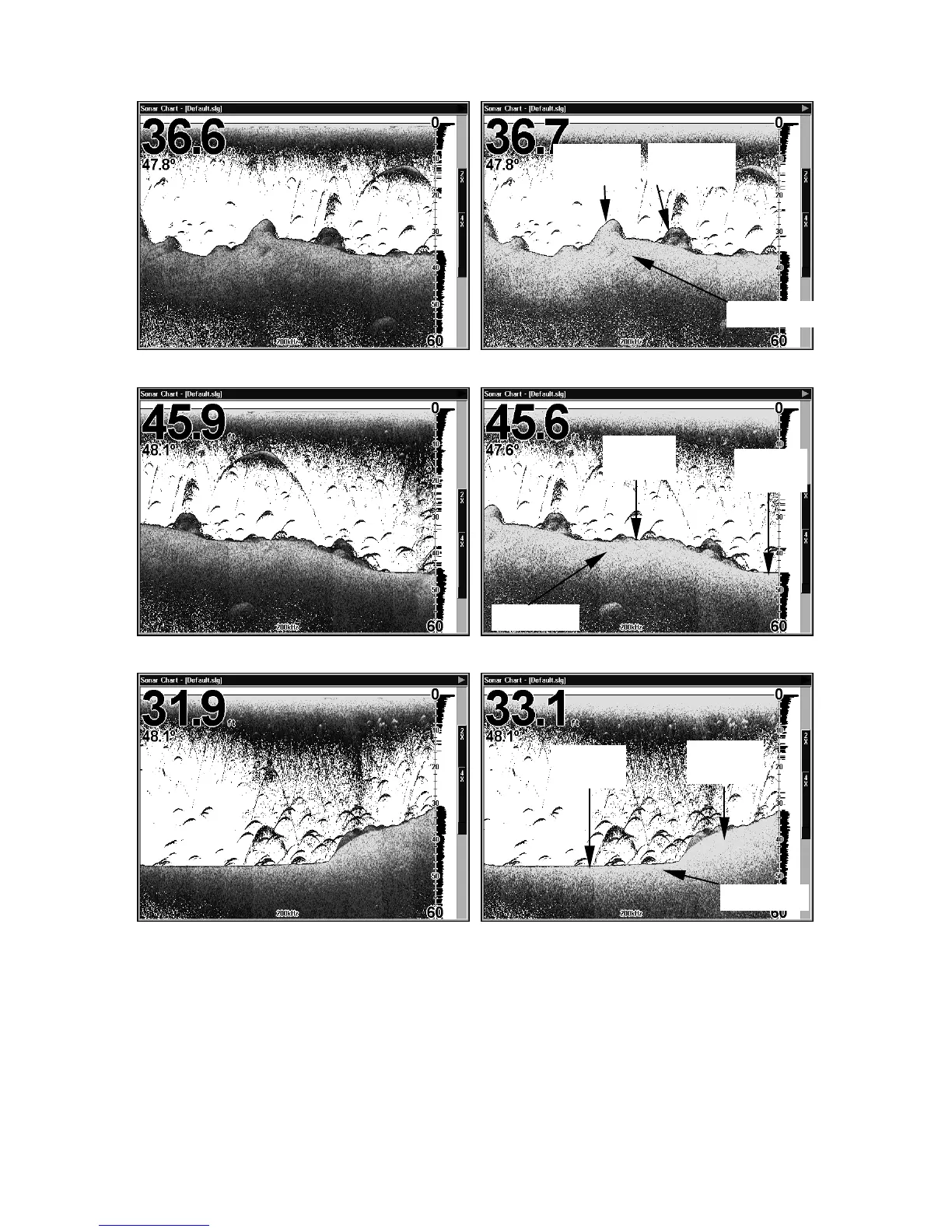

This series of figures shows how different ColorLine settings can reveal
more information. The "A" figures to the left show locations with Color-
Line set at the factory level of 70 percent. At right, the "B" figures show
the same locations with ColorLine increased to 84 percent. In Figure 1B,
no fish are near the left structure, but the right structure shows fish
holding next to the structure. Notice in figures 2B and 3B how Color-
Line displays a hard, rocky bottom (the drop-offs) with a wider yellow
line. (The yellow is gray in this black and white illustration.) The mud-
dier bottom below those drop-offs appears as a narrower yellow line.
ColorLine
Muddy
bottom
Hard
bottom
Muddy
bottom
Fish near
structure
Hard
bottom
Hard
structure
Colorline
Colorline
Fig. 2A
Fig. 3A
Fig. 2B
Fig. 3B
Fig. 1A
Fig. 1B
