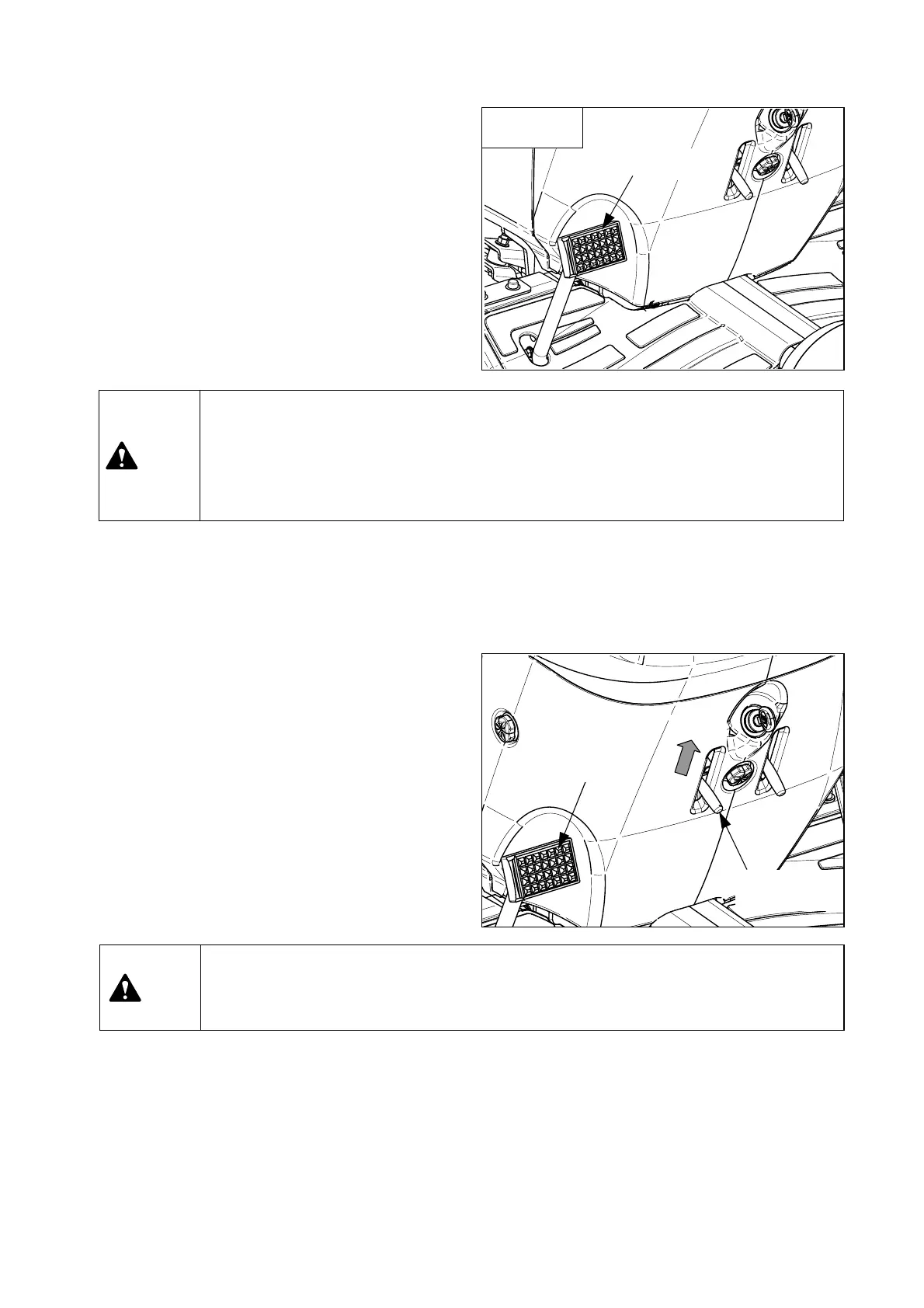

(8) Brake pedal
z Press this brake pedal to stop the tractor.
z If 4WD is disengaged, the braking force is only
applied on rear wheels.
z Brake pedal is located at the left-hand side of the
front console.
Caution
▶ For HST model, when releasing HST pedal(s), the pedal(s) shall be return to
NEUTRAL and HST brake begins to work. But, HAVE TO PRESS the brake pedal
additionally in an emergency state.
▶ DO NOT ride your foot on the brake pedal while driving. If so, it may cause failure
of the brake device.
HST
Brake pedal
(9) Parking brake lever
z To apply parking brake, press the brake pedal,
and lift the parking brake lever upward to engage
the parking brake ratchet.
z Release the brake pedal slowly with checking the
slippage of the tractor.
z To release the parking brake, press the brake
pedal little bit harder, and then the parking brake
lever shall be released by spring.
Caution
▶ DO NOT drive the tractor while the parking brake is engaged. It may cause
damage to the brake or parking brake device.
Parking brake
lever
PARK
Brake pedal
