(3) Hydraulic lift control
① Position control

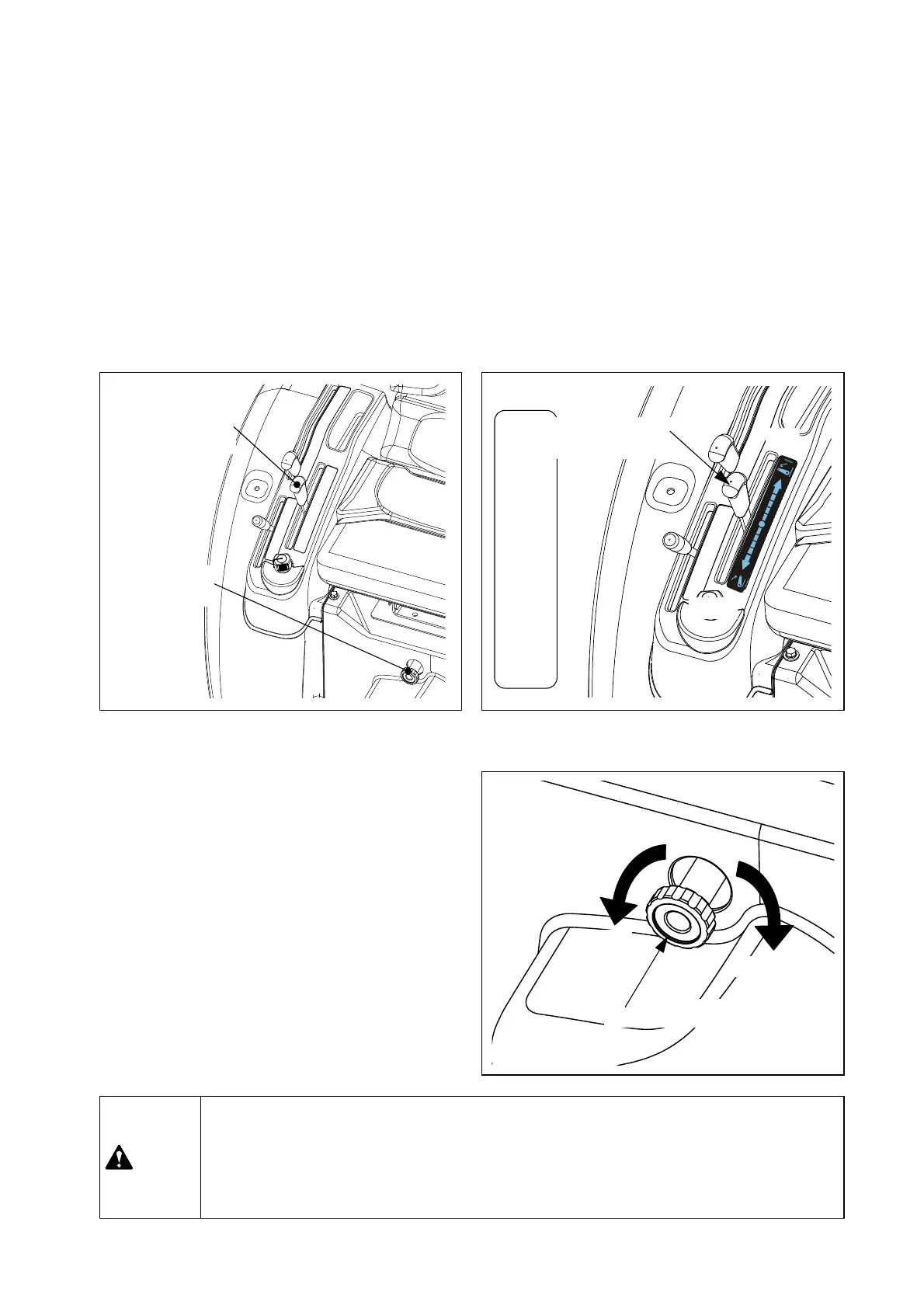

z The 3-point linkage can go up/down by using the position control lever as below.
1. Push the position control lever forward, the 3-point linkage goes down.
2. Pull the position control lever backward, the 3-point linkage goes up. The raising speed is depend on
the engine speed. If it does not raised at the low rpm, increase the engine speed.
3. If releasing position control lever, the lever goes to neutral automatically and the 3-point linkage shall
be stopped.
Down speed
control knob
Position control
lever
② Down speed control knob
z Turn the knob to the clockwise to lower the
implement slowly and to the counter-clockwise
to rise speed faster. If turning clockwise fully, the
implement is fixed and even If lowering down the
position control lever, the implement does not let
down.
z Tiller : Slow in down speed
z Plough : Fast in down speed
z When working in hard ground, slow down the
down speed to avoid the bounding of the
implements.
▶When driving on the road, turn right the down speed control knob slightly to lock.
▶When changing the blades of tiller or removing grass, stop the engine and turn the
down speed control knob to right slightly to lock. (The knob will be rotated about two
revolutions.)
Warning
Fast
Slow & Lock
Down speed control knob
Position control
lever
UP
Down
