Removing a
Drive
www.lsi.com/channel/products
131
2
Locate the drive yo
u want
to remove and click the
Remove D
rive
link
(Figure
66).

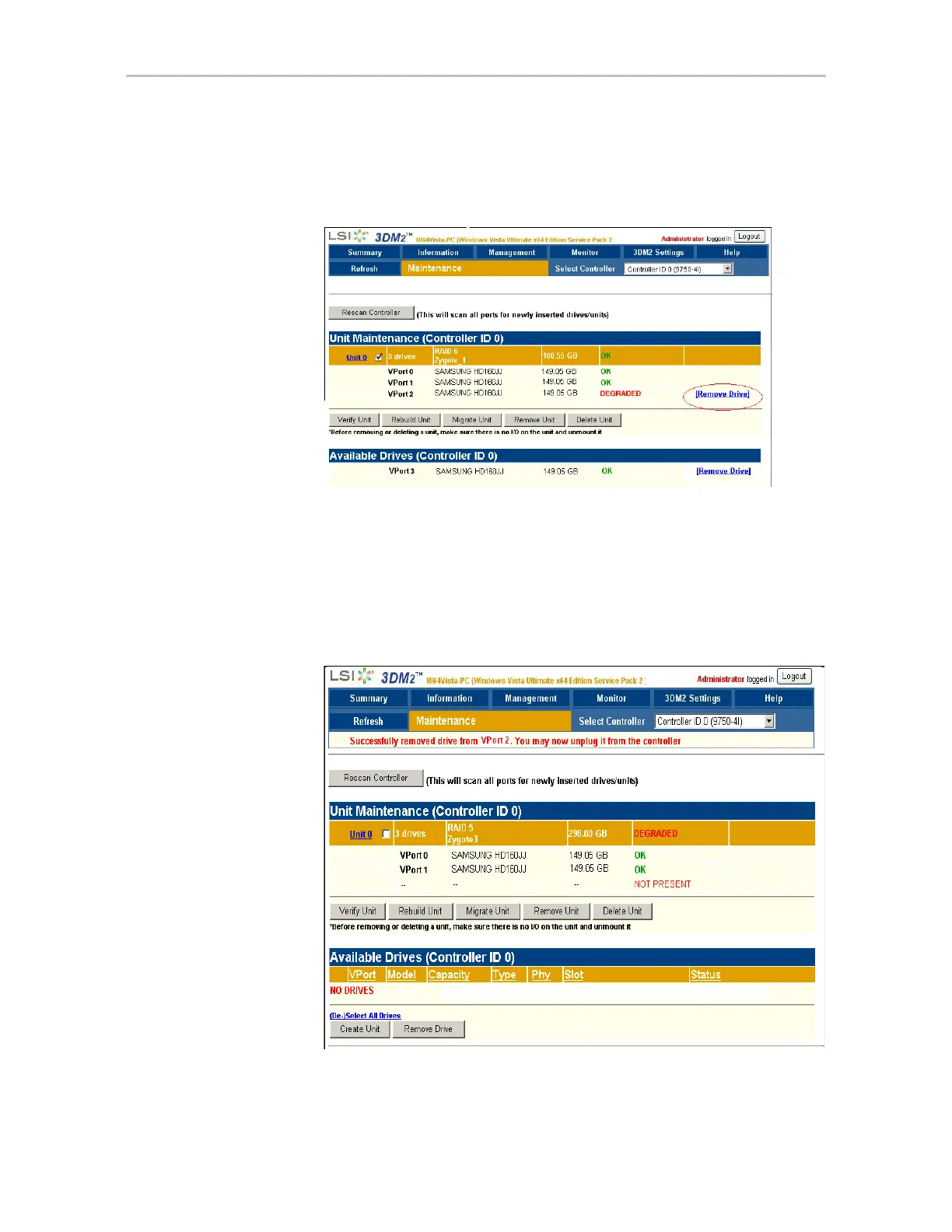

Figure 66.
Removing a Drive in 3DM2
3
When 3DM2 asks
you to confirm that
you want to remove the drive, click
OK
.
Y
ou can now remove the drive from your system.
If you removed a drive that was part
of a unit, the unit will become
degraded, as shown in (Figure
67).
Figure 67.
Result of Removing Drive from Unit in 3DM2
142
144
