Characteristics of the LSI PCIe to SAS Host Adapters 3-3

Activity LED Header (J3) – 4-pin, right angle, 0.1-inch pitch, pin header

for driving external activity LEDs.

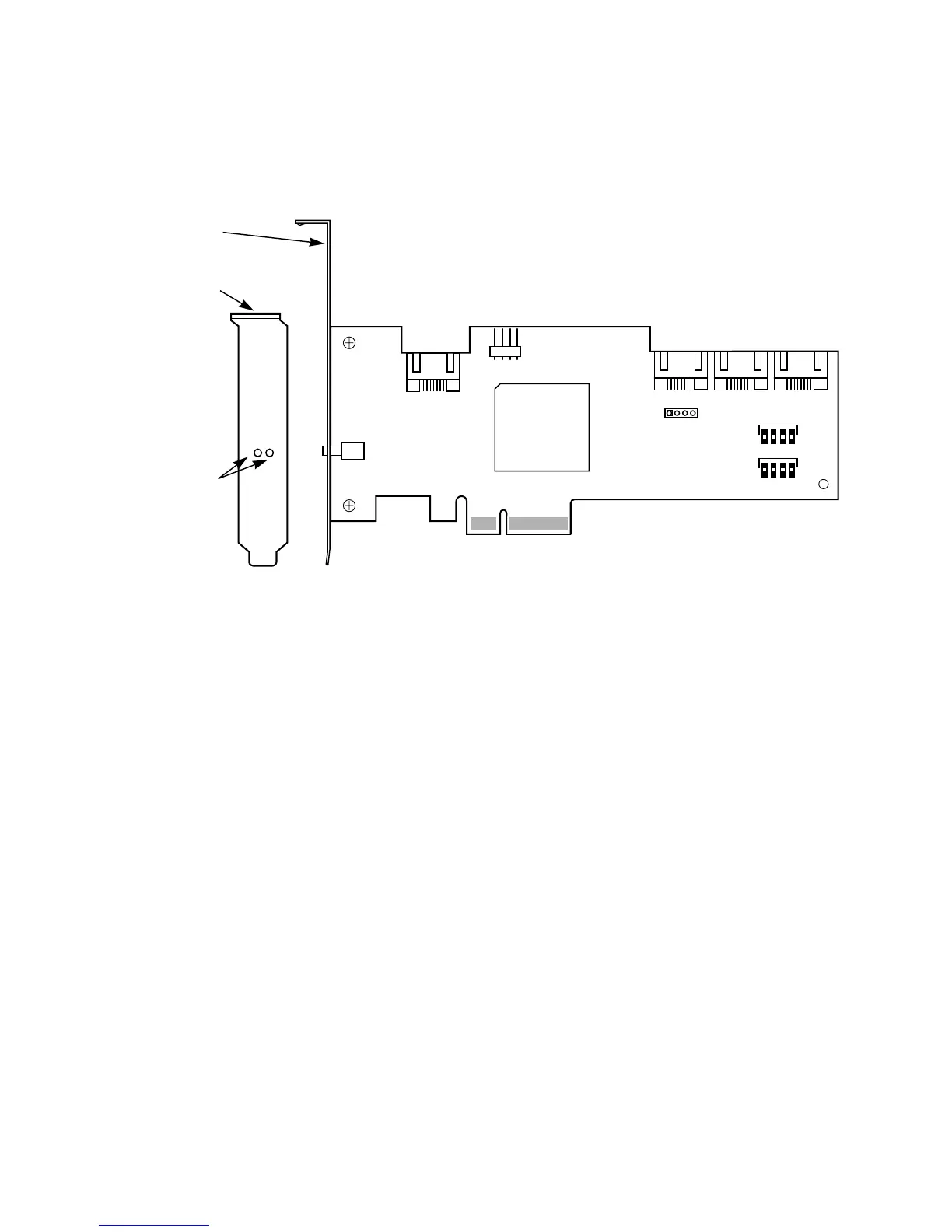

Figure 3.1 LSISAS3041E and LSISAS3041EL Board Layout

• J1: PCI Express x4 lane board edge connector

• J2, J5–J7: SATA internal right-angle connectors

• J3: 4-pin, right angle, 0.1” pitch, pin header for driving external

activity LEDs

3.1.1.3 Physical Characteristics

The LSISAS3041E and LSISAS3041EL boards are 6.6 inches x

2.713 inches. PCI Express x4 connection is made through the edge

connector J1. The component height on the top and bottom of the

LSISAS3041E and LSISAS3041EL boards follows the PCI Express

speciﬁcations.

J5 J6 J7

Standard PCI Bracket

(LPPCI)

Low-Proﬁle

PCI Bracket

LSISAS3041E

LSISAS3041EL

Two Light Pipes,

One Green and

One Bi-color

LSISAS1064E

Activity LEDs

Link Not Present LEDs

Port 0

Port 1

Port 3 Port 2
