Characteristics of the LSI PCIe to SAS Host Adapters 3-15
Version 1.0 Copyright © 2006 by LSI Logic Corporation. All rights reserved.

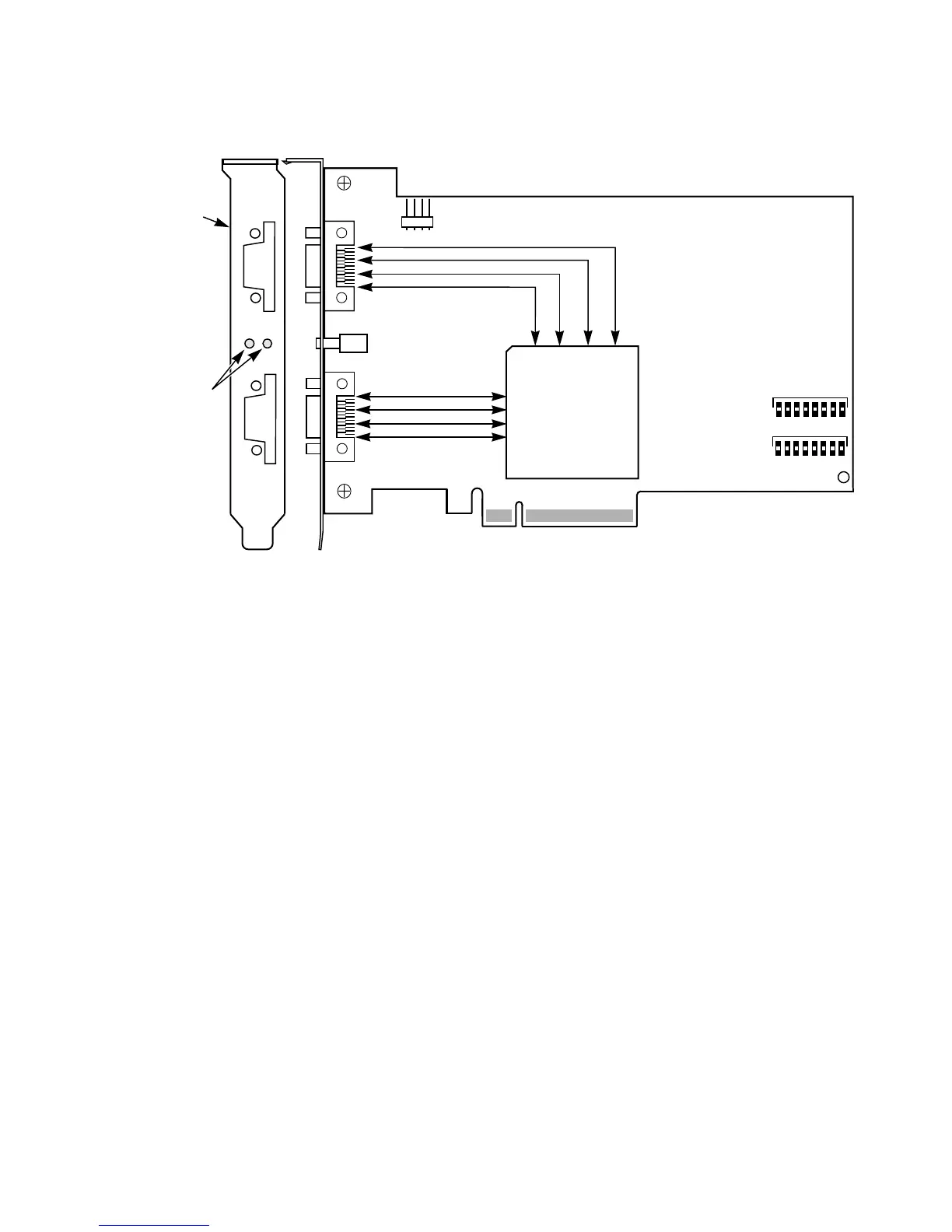

Figure 3.7 LSISAS3800E Board Layout
• J1: PCI Express x8 lane board edge connector
• J2 and J3: SFF-8470 SAS external right-angle connector
• J4: 4-pin, right angle, 0.1” pitch, pin header for driving external
activity LED
3.1.7.3 Physical Characteristics
The LSISAS3800E is 6.6 inches x 4.375 inches. PCI Express connection
is made through the edge connector J1. The component height on the
top and bottom of the LSISAS3800E board follows the PCI Express
specifications.
J3
J2
LSISAS1068E
Standard
PCI Bracket
LSISAS3800E
Two Light Pipes,
One Green and
One Bi-color
J4
Activity
LEDs
Link Not
LEDs
Present
J1
