Characteristics of the LSI PCIe to SAS Host Adapters 3-9
Version 1.0 Copyright © 2006 by LSI Logic Corporation. All rights reserved.
Activity LED Header (J6) – 4-pin, right angle, 0.1-inch pitch, pin header
for driving external activity LEDs.

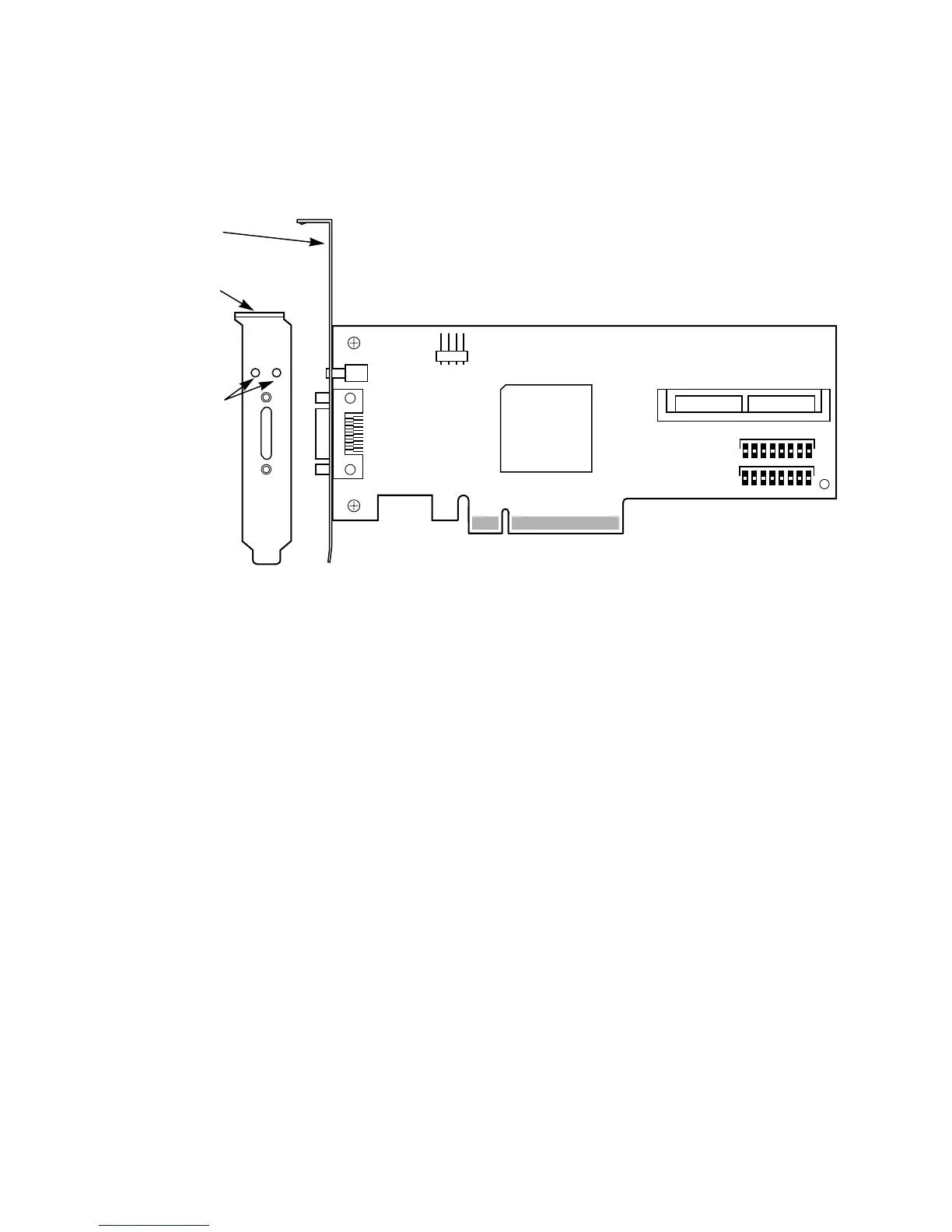

Figure 3.4 LSISAS3442E and LSISAS3442EL Board Layout
• J1: PCI Express x8 lane board edge connector
• J2: SFF-8470 SAS external right-angle connector
• J5: SFF-8484 SAS internal right-angle connector with four sideband
lines
• J6: 4-pin, right angle, 0.1” pitch, pin header for driving external
activity LED
3.1.4.3 Physical Characteristics
The LSISAS3442E and LSISAS3442EL boards are 6.6 inches x
2.713 inches. PCI Express x8 connection is made through the edge
connector J1. The component height on the top and bottom of the
LSISAS3442E and LSISAS3442EL boards follows the PCI Express
specifications.
J1
J6
J2
J5
Standard PCI Bracket
(LPPCI)
Low-Profile
PCI Bracket
LSISAS3442E
LSISAS3442EL
Two Light Pipes,
One Green and
One Bi-color
LSISAS1068E
Link
Activity
LEDs
LEDs
Not Present
