Characteristics of the LSI PCIe to SAS Host Adapters 3-17
Version 1.0 Copyright © 2006 by LSI Logic Corporation. All rights reserved.
Activity LED Header (J4) – 4-pin, right angle, 0.1-inch pitch, pin header
for driving external activity LEDs.

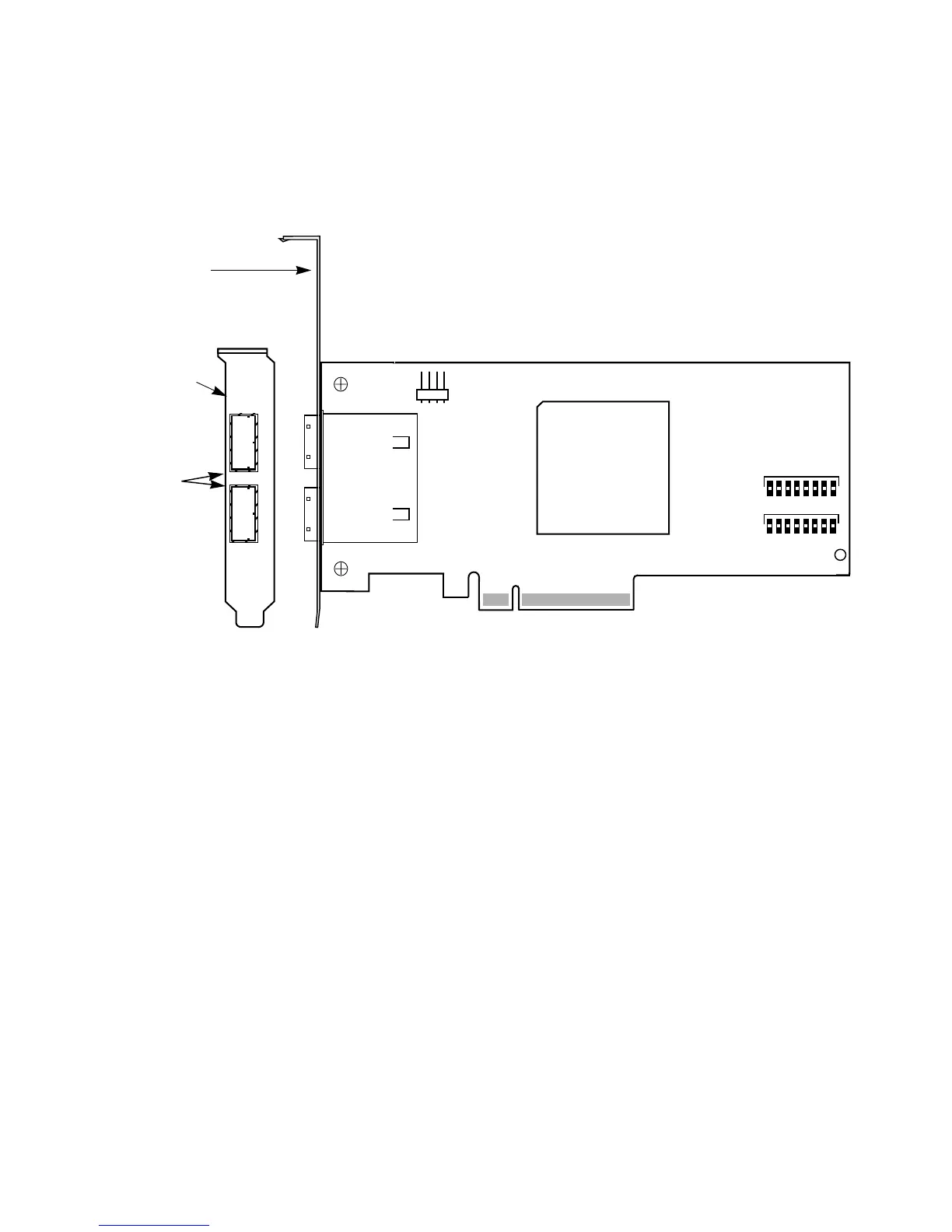

Figure 3.8 LSISAS3801E and LSISAS3801EL Board Layout
• J1: PCI Express x8 lane board edge connector
• J2 and J3: SFF-8088 mini-SAS external right-angle connectors
• J4: 4-pin, right angle, 0.1” pitch, pin header for driving external
activity LED
3.1.8.3 Physical Characteristics
The LSISAS3801E and LSISAS3801EL boards are 6.6 inches x
2.713 inches. PCI Express x8 connection is made through the edge
connector J1. The component height on the top and bottom of the
LSISAS3801E and LSISAS3801EL boards follows the PCI Express
specifications.
LSISAS1068
Link Not Present
Activity
J2
J4
J3
SFF-8088
Mini-SAS
Connectors
(LPPCI)
Low-Profile
PCI Bracket
LSISAS3801EL
J1
Standard
PCI Bracket
LSISAS3801E
