Characteristics of the LSI PCIe to SAS Host Adapters 3-11
Version 1.0 Copyright © 2006 by LSI Logic Corporation. All rights reserved.
Activity LED Header (J6) 4-pin, right angle, 0.1-inch pitch, pin header
for driving external activity LEDs.

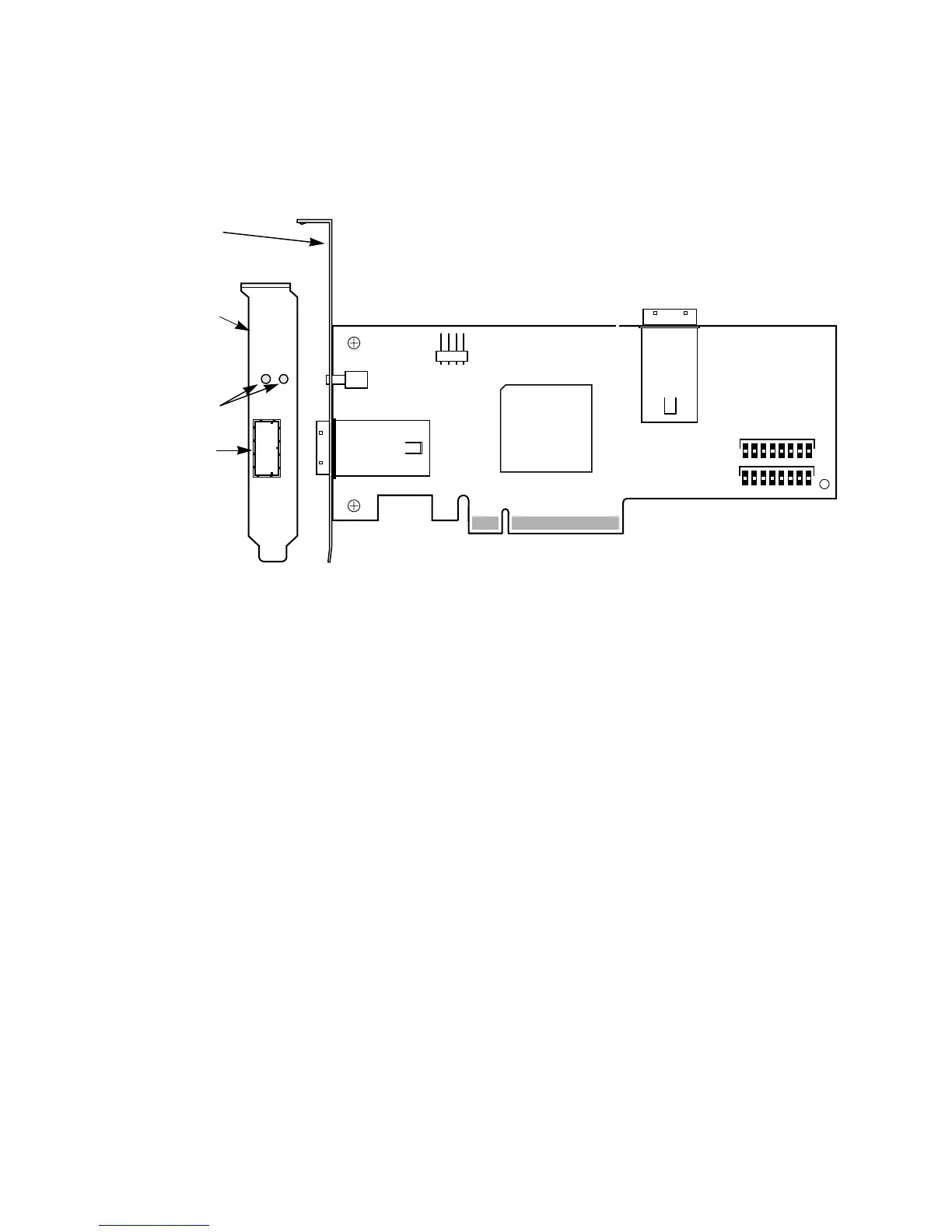

Figure 3.5 LSISAS3443E and LSISAS3443EL Board Layout
J1: PCI Express x8 lane board edge connector
J2: SFF-8088 mini-SAS external right-angle connector
J5: SFF-8087 mini-SAS internal right-angle connector with four
sideband lines
J6: 4-pin, right angle, 0.1” pitch, pin header for driving external
activity LED
3.1.5.3 Physical Characteristics
The LSISAS3443E and LSISAS3443EL boards are 6.6 inches x
2.713 inches. PCI Express x8 connection is made through the edge
connector J1. The component height on the top and bottom of the
LSISAS3443E and LSISAS3443EL boards follows the PCI Express
specifications.
J1
J6
Standard PCI Bracket
LSISAS3443E
LSISAS1068E
J5
J2
SFF-8088
Mini-SAS
Connector
(LPPCI)
Low-Profile
PCI Bracket
LSISAS3443EL
Two Light Pipes,
One Green and
One Bi-color
Link
Activity
LEDs
LEDs
Not Present
