Characteristics of the LSI PCIe to SAS Host Adapters 3-5
Version 1.0 Copyright © 2006 by LSI Logic Corporation. All rights reserved.
Activity LED Header (J6) – 4-pin, right angle, 0.1-inch pitch, pin header
for driving external activity LEDs.

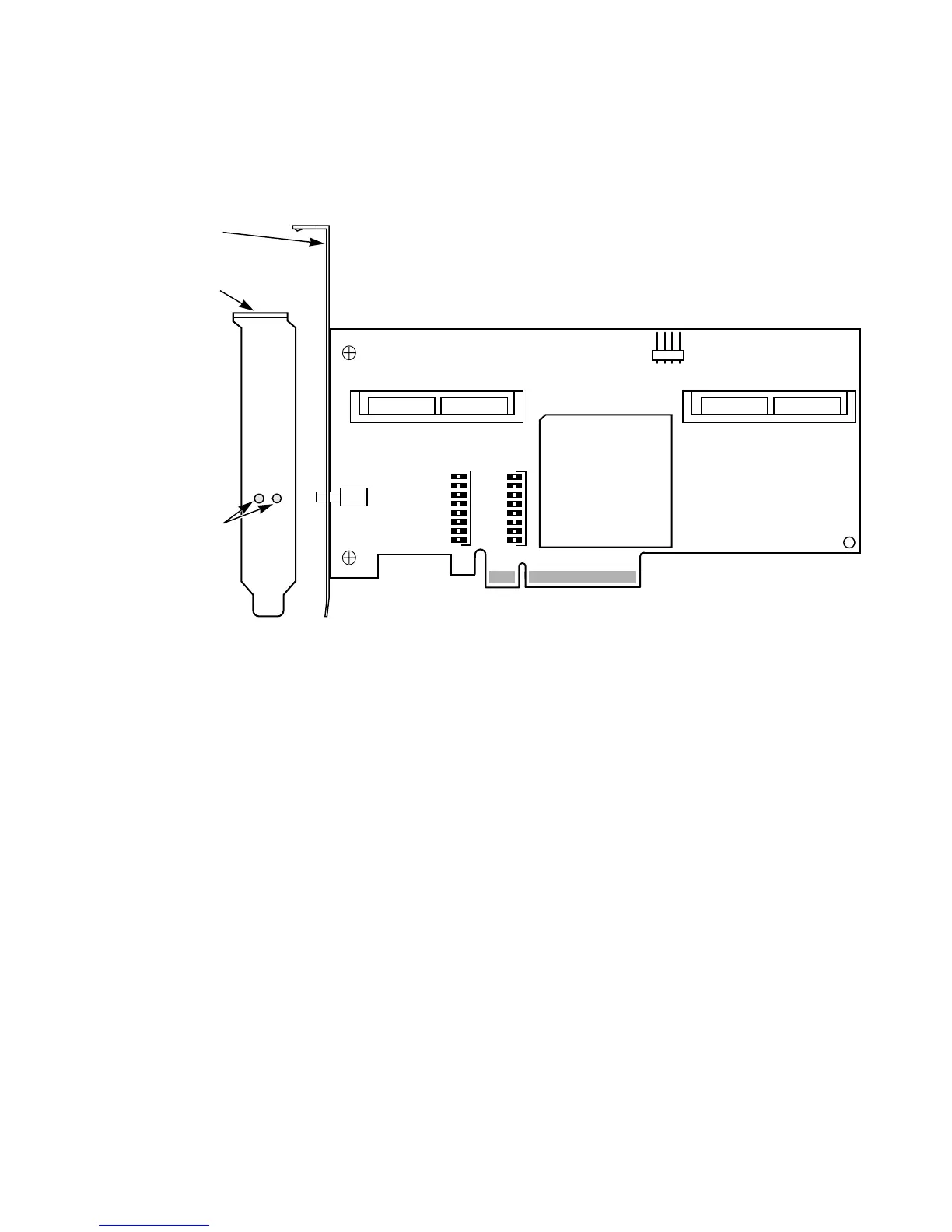

Figure 3.2 LSISAS3080E and LSISAS3080EL Board Layout
• J1: PCI Express x8 lane board edge connector
• J2, J5: SFF-8484 SAS internal right-angle connectors with four
sideband lines
• J6: 4-pin, right angle, 0.1” pitch, pin header for driving external
activity LED
3.1.2.3 Physical Characteristics
The LSISAS3080E and LSISAS3080EL boards are 6.3 inches x
2.713 inches. PCI Express connection is made through the edge
connector J1. The component height on the top and bottom of the
LSISAS3080E and LSISAS3080EL boards follows the PCI Express
specifications.
J5
J2
LSISAS1068E
Standard PCI Bracket
(LPPCI)
Low-Profile
PCI Bracket
LSISAS3080E
LSISAS3080EL
Two Light Pipes,
One Green and
One Bi-color
J1
J6
Link
Activity
LEDs
LEDs
Not Present
