MegaRAID SAS 9271-4i and SAS 9271-8i RAID Controllers Quick Installation Guide
June 2012
MegaRAID SAS 9271-4i and MegaRAID SAS 9271-8i RAID Controllers
4.2 Attaching the CVFM02 Module Directly to the MegaRAID SAS 9271 RAID Controller
Perform the following tasks to attach the CVFM02 module directly to your MegaRAID SAS 9271 RAID controller.
1. Remove the RAID controller from the computer. See Removing the RAID Controller from the Computer.
2. Attach the CVFM02 module directly to the RAID controller. See Attaching the CVFM02 Module Directly to the
RAID Controller.
4.2.1 Removing the RAID Controller from the Computer
Follow these steps to remove the RAID controller from the computer.
1. Turn off the power, and unplug the power cords.
2. Ground yourself, and make sure that the system is grounded.
3. Remove the cover from the computer, according to the instructions in the system user’s manual, to allow access
to the controller.
4. Unplug all cables from the controller, remove the screw that attaches the bracket to the computer chassis, and
carefully remove the controller from the slot.
5. Place the controller on a flat, clean, static-free surface, and continue with the next procedure.
4.2.2 Attaching the CVFM02 Module Directly to the RAID Controller
Follow these steps to attach the CVFM02 module to the front of the RAID controller.
1. Ground yourself, and make sure that the system is grounded.
2. Remove the CVFM02 module from the package.
3. Place the CVFM02 module front-side-up on a flat, clean, static-free surface.
4. Place the RAID controller on a flat, clean, static-free surface.
5. Hold the CVFM02 module so that the top side faces upward. Align the J3L1 connector on the CVFM02 module
with the J4B1 connector on the RAID controller, as shown in the following figure.

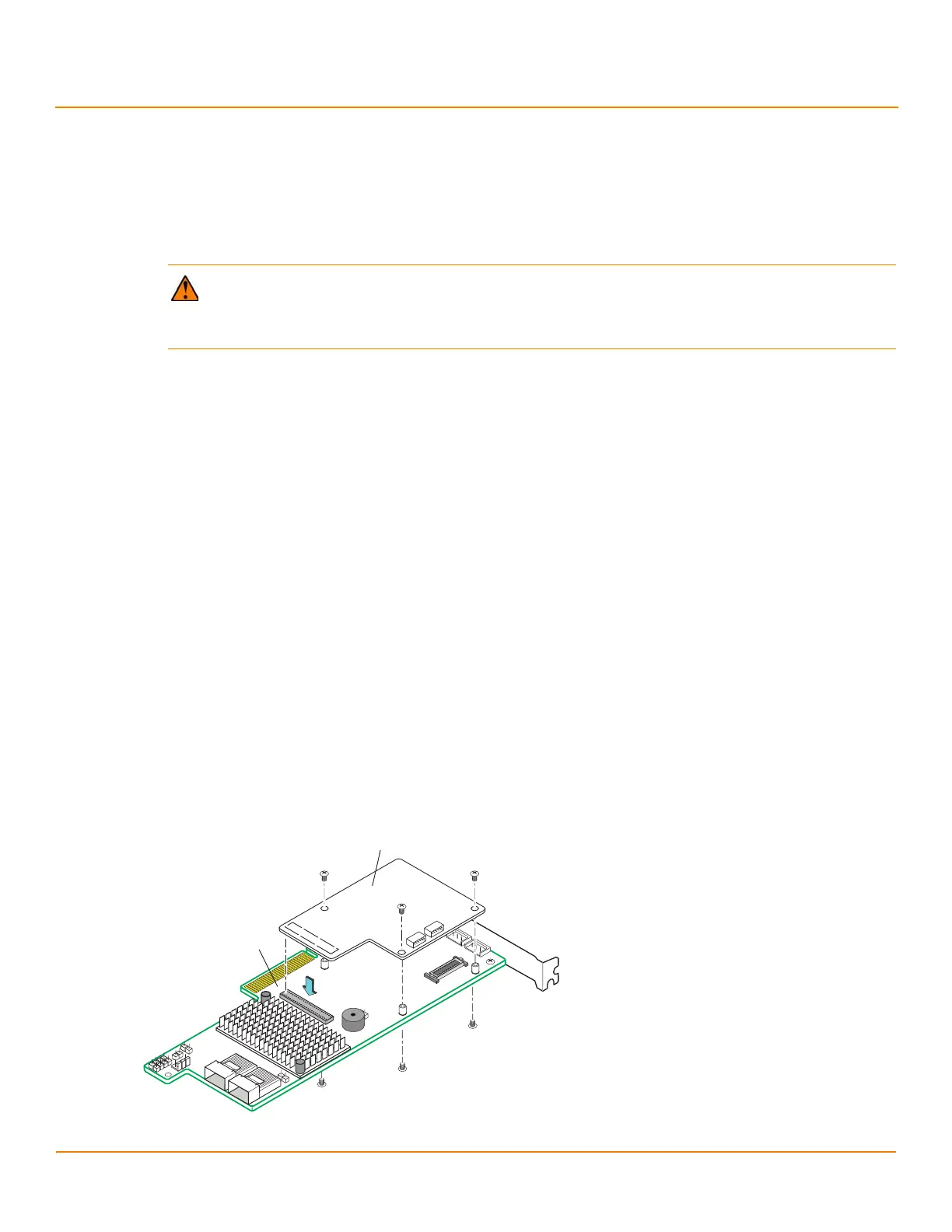

Figure 5 Attaching the CVFM02 Module Directly to the MegaRAID SAS 9271 RAID Controller
CAUTION Electrostatic discharge (ESD) can damage the CVFM02 module and the RAID controller. Make
sure that you install the CVFM02 module at an ESD-safe workstation that meets the EIA-625 standard.
When you install the CVFM02 module, follow the ESD-recommended practices in the latest revision of the
IPC-A-610 standard.
3_00893-00
J4B1
CacheVault
Flah Module
To Next Page
