LSI Corporation
- 12 -
MegaRAID SAS 9271-4i and SAS 9271-8i RAID Controllers Quick Installation Guide
June 2012
MegaRAID SAS 9271-4i and MegaRAID SAS 9271-8i RAID Controllers

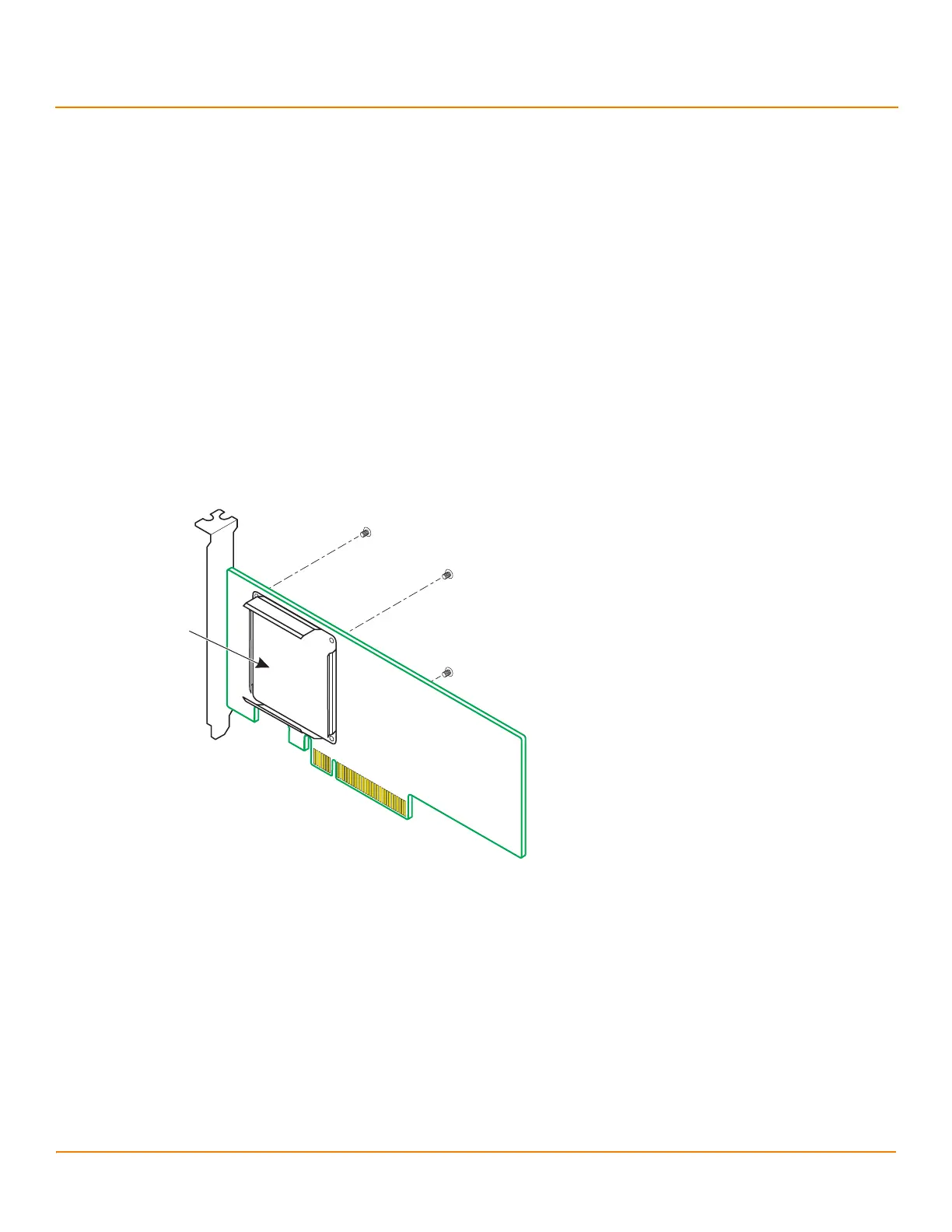

6. Carefully press the CVFM02 module onto the RAID controller so that the two connectors are firmly joined.
7. Secure the CVFM02 module to the RAID controller with the screws and the standoffs in the three screw holes.
The standoffs are threaded at both ends, and a screw goes into each end. The screw threads from the back of the
controller board into the board-to-board standoffs on the bottom of the CVFM02 module.
Center the screwdriver carefully to avoid stripping the screw heads. Do not over-tighten the screws.
4.3 Installing the Clip Directly on the Remote Mount Board
Follow these steps to install the clip directly on the BBU-BRACKET-05 remote mount board.
1. Place the remote mount board on a flat, clean, static-free surface.
2. Ground yourself, and make sure that the system is grounded.
3. Remove the clip and the remote mount board module from the package.
4. Place the clip and the remote mount board module front-side-up on a flat, clean, static-free surface.
5. Hold the clip to line up the screw holes on the clip with the screw holes on the remote mount board, as shown in
the following figure.
Figure 6 Installing the Clip Directly on the Remote Mount Board
6. Secure the clip to the remote mount board in three screw holes with the screws and the nuts.
The screws thread through the front of the clip and the remote mount board.
Center the screwdriver carefully to avoid stripping the screw heads. Do not over-tighten the screws.
