MegaRAID SAS 9271-4i and SAS 9271-8i RAID Controllers Quick Installation Guide
June 2012
MegaRAID SAS 9271-4i and MegaRAID SAS 9271-8i RAID Controllers
Figure 9 Reinstalling the RAID Controller
4.7 Installing the Remote Mount Board in the System
Follow these steps to install the remote mount board in the system.
1. Make sure that the power to the chassis is still turned off, the power cords are unplugged, and the chassis is
grounded and has no AC power.

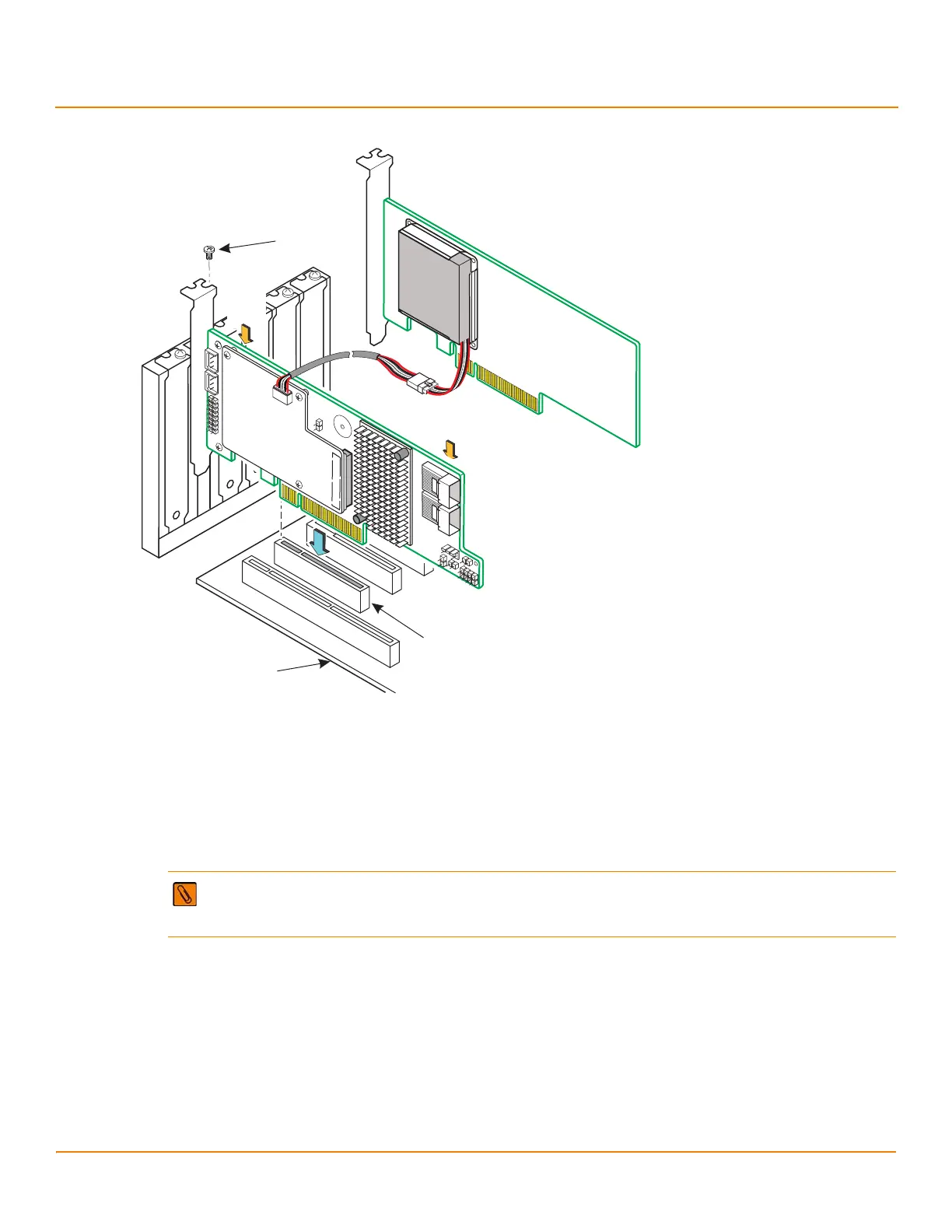

2. Insert the remote mount board in a PCI Express slot on the motherboard, as shown in the following figure.
3. Press down gently, but firmly, to seat the board correctly in the slot.
4. Use the bracket screw to secure the remote mount board to the system chassis.
NOTE Some PCI Express slots support only PCI Express graphics cards. If a RAID controller is installed in
one of these slots, the controller does not function. Refer to your computer documentation for
information about the PCI Express slot.
Edge of
Motherboard
PCI Express
Bracket
Screw
Press
Here
Press
Here
3_00899-00
