MegaRAID SAS 9271-4i and SAS 9271-8i RAID Controllers Quick Installation Guide
June 2012
MegaRAID SAS 9271-4i and MegaRAID SAS 9271-8i RAID Controllers

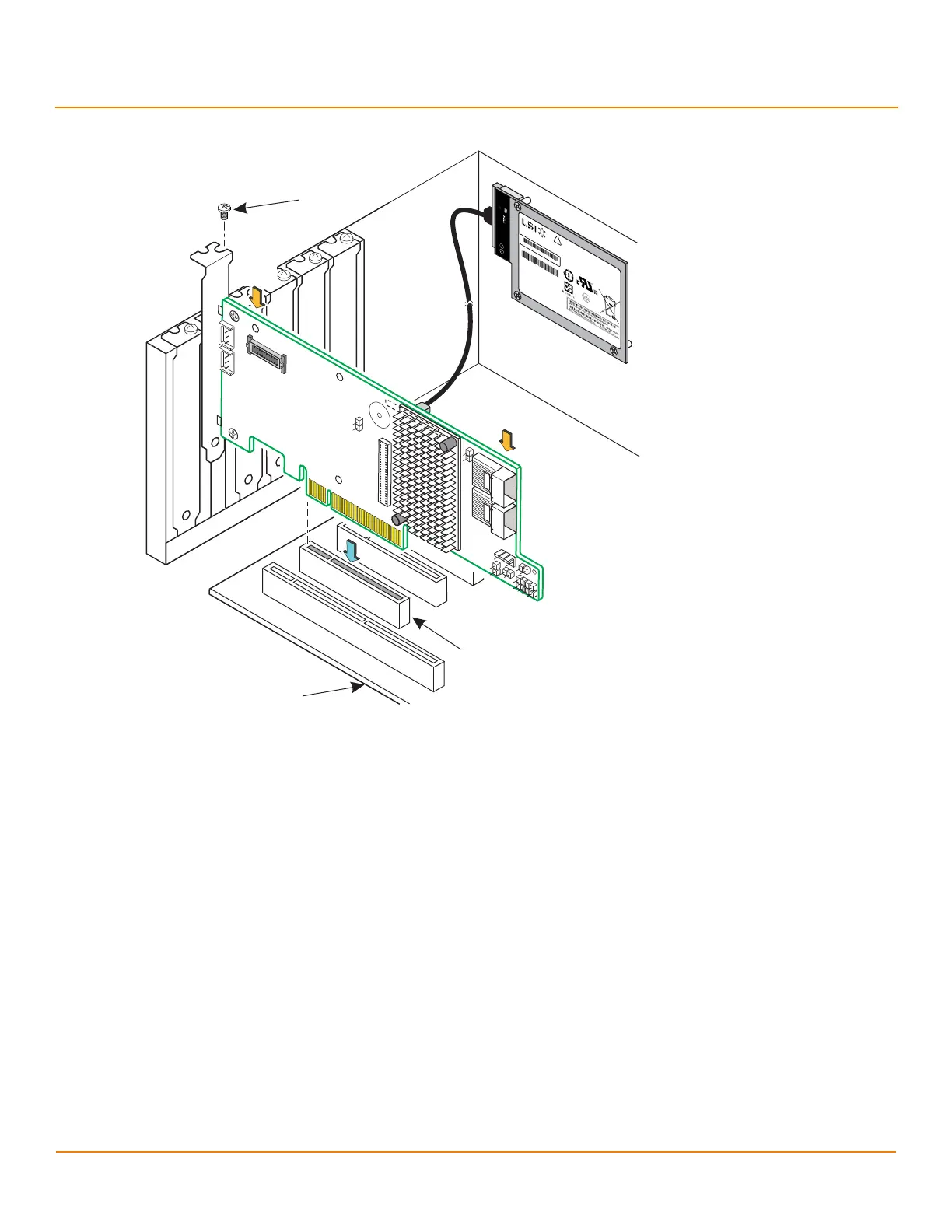

Figure 15 Reinstalling the RAID Controller
6. Reinstall the computer cover, and reattach the power cords.
7. Turn on the power to the computer.
Refer to the MegaRAID SAS Software User Guide for information about running the RAID configuration utility and
installing the software drivers.
