1. Basic information and precautions

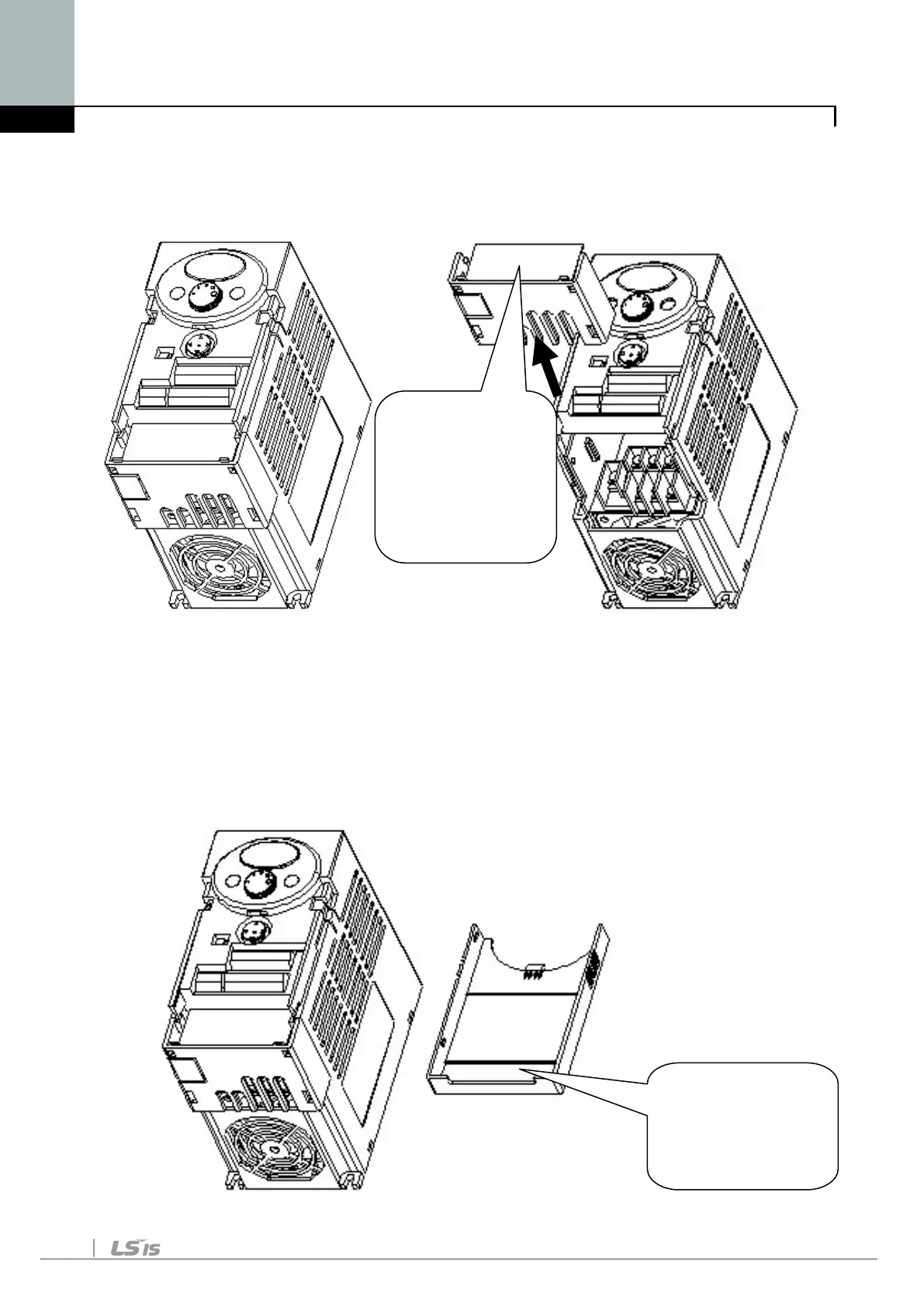

Removal for wiring input power and terminals: After removing the
front cover, lift the bottom cover up to disconnect.
To access control terminals: after finishing power terminal wiring,
reinstall the bottom cover and then start wiring control terminals.
☞ Note : Use the recommended size of the cable as indicated in this
manual ONLY. Using larger size cable may lead to mis-wiring or
damage the insulation.
Note: Input
Power
Terminals
name is
labeled here.
Note: Control
Terminals name
is labeled here.
To Next Page
