LSIS SV008iC5-1 User Manual

DECLARATION OF CONFIRMITY
vii

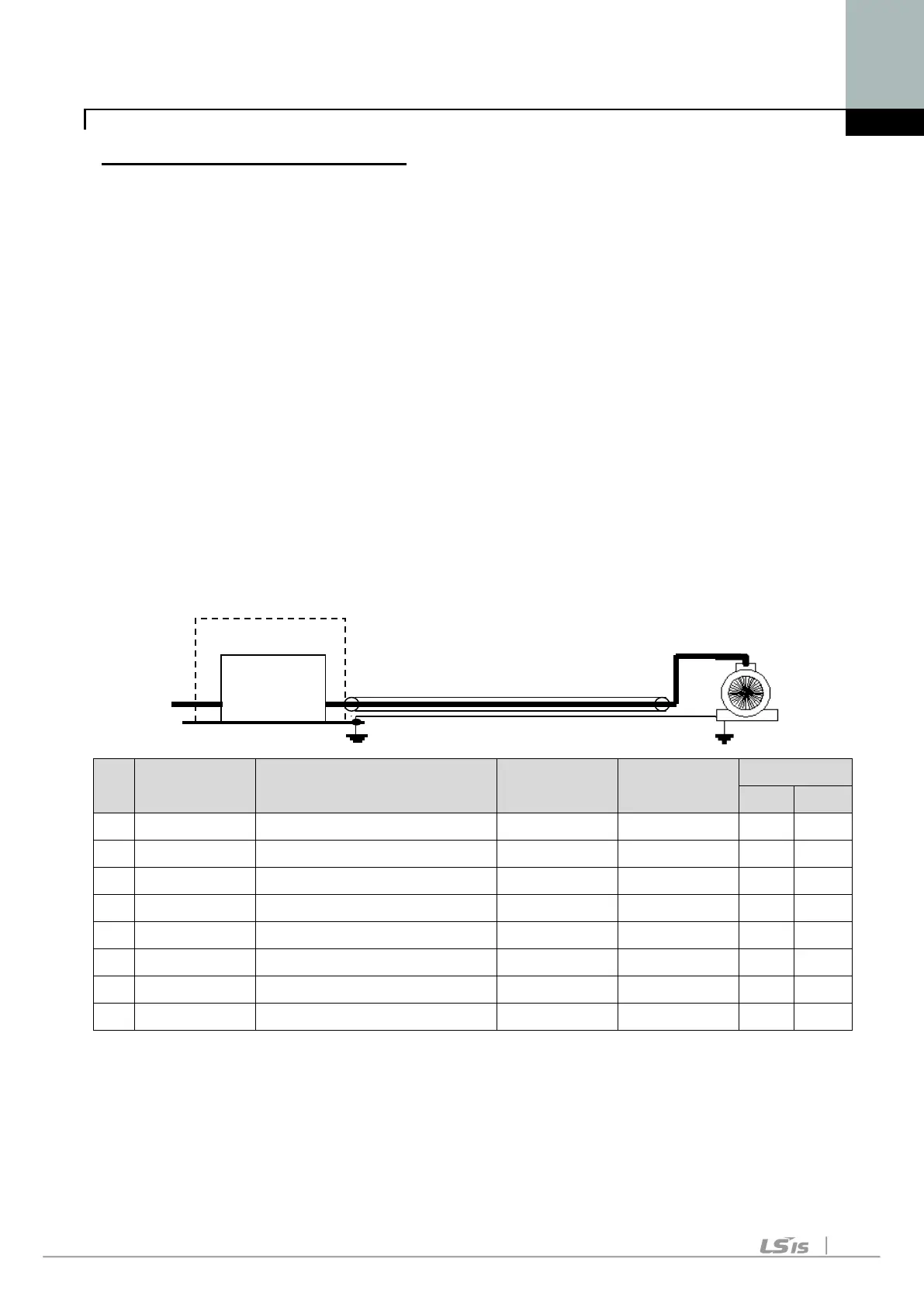

EMC INSTALLATION GUIDE
LS inverters are tested to meet Electromagnetic Compatibility (EMC) Directive
89/336/EEC and Low Voltage (LV) Directive 73/23/EEC using a technical
construction file. However, Conformity of the inverter with CE EMC requirements
does not guarantee an entire machine installation complies with CE EMC
requirements. Many factors can influence total machine installation compliance.
Essential Requirements for CE Compliance
Following conditions must be satisfied for LS inverters to meet the CE EMC
requirements.
1. CE compatible LS inverter
2. Installing inverter in an EMC enclosure
3. Grounding enclosure and shielded parts of wire
4. Using shielded cable
5. Use it under industrial environment.
6. It is important that all lead lengths are kept as short as possible and that
incoming mains and outgoing motor cables are kept well separated.
No Models Description
Interface
Module1*
Interface
Module 2**
CE Mark
EMC
LVD
1 SV004iC5-1F AC Drive, 0.5HP, 220V, 1 phase - - Yes 1
2
SV008iC5-1F
AC Drive, 1HP, 220V, 1 phase
-
-
Yes
2
3 SV015iC5-1F AC Drive, 2HP, 220V, 1 phase - - Yes 3
4
SV022iC5-1F
AC Drive, 3HP, 220V, 1 phase
-
-
Yes
4
5 SV004iC5-1 AC Drive, 0.5HP, 220V, 1 phase 10120001681 10120001677 Yes 5
6
SV008iC5-1
AC Drive, 1HP, 220V, 1 phase
10120001682
10120001678
Yes
6
7 SV015iC5-1 AC Drive, 2HP, 220V, 1 phase 10110001458 09710000110 Yes 7
8
SV022iC5-1
AC Drive, 3HP, 220V, 1 phase
10110001458
09710000110
Yes
8
 Models No. 1, 2, 3 and 4 are EMC Filters integrated and compliant with CE.
 EMC Filters are not provided for models No. 5, 6, 7 and 8. They should be
provided with Interface Module 2 for CE compliance.
* Module 1: Non-Filter Type PCB Assembly
** Module 2: Filter Type PCB Assembly
INVERTER
MOTOR
SHIELDED CABLE
