LSIS XP Series Troubleshooting Manual

2. Troubleshooting
21
Remark
(1) Touch precision is calibrated initially. If precision error is big, it might hard to be reset by screen
touch. In this case, please connect an USB mouse to XGT Panel and do touch calibration easily..
(2) When touch location changes during operation, please re-calibrate the touch precision as below:
Touch calibration setting page will show up if you touch 5 times consecutively on an empty space.
2.1.2 Communication Setting
Communication parameters between XGT Panel and other devices can be set in XP-Builder.
Please refer to XP-Builder User’s manual to set in detail. User’s manual can be downloaded on official webpage:
http://www.lsis.com
The basic information port settings and communication settings are as below:

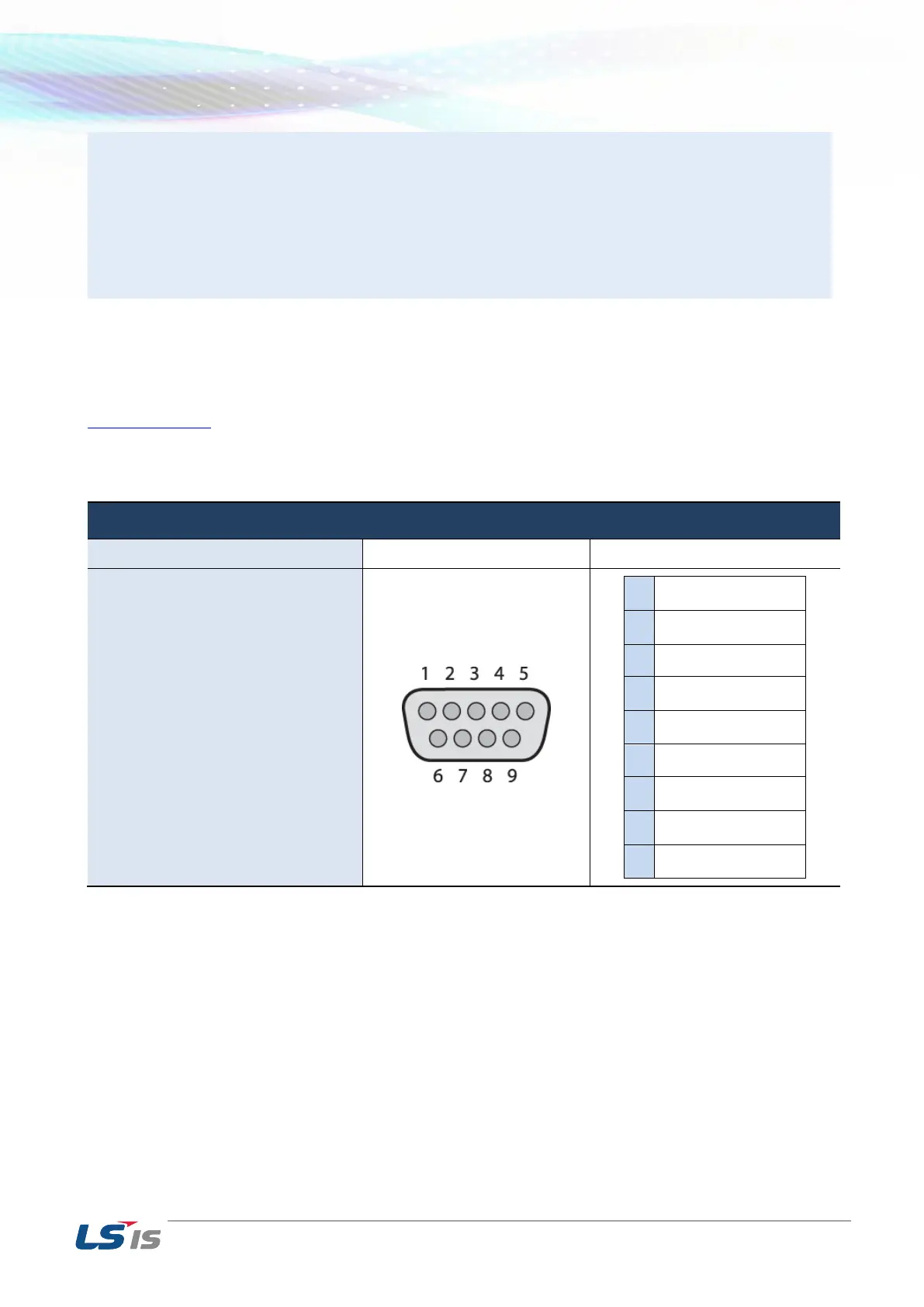

 Communication port setting
RS232C
Specification
Port
Description
1) Connector type: D-Sub 9P, male
2) Cable maximum length: 15m
3) Shielded cable recommended
1
2
Receive Data
3
Transmit Data
4
5
Signal Ground
6
7
8
9
