9.1 ELECTRICAL COMPONENT
TERMINOLOGY
To understand the safety, operation, and service
information presented in this section, it is necessary that
the operator/mechanic be familiar with the name and
location of the electrical components of the machine. The
following illustration identifies the components that are
referred to throughout this section.

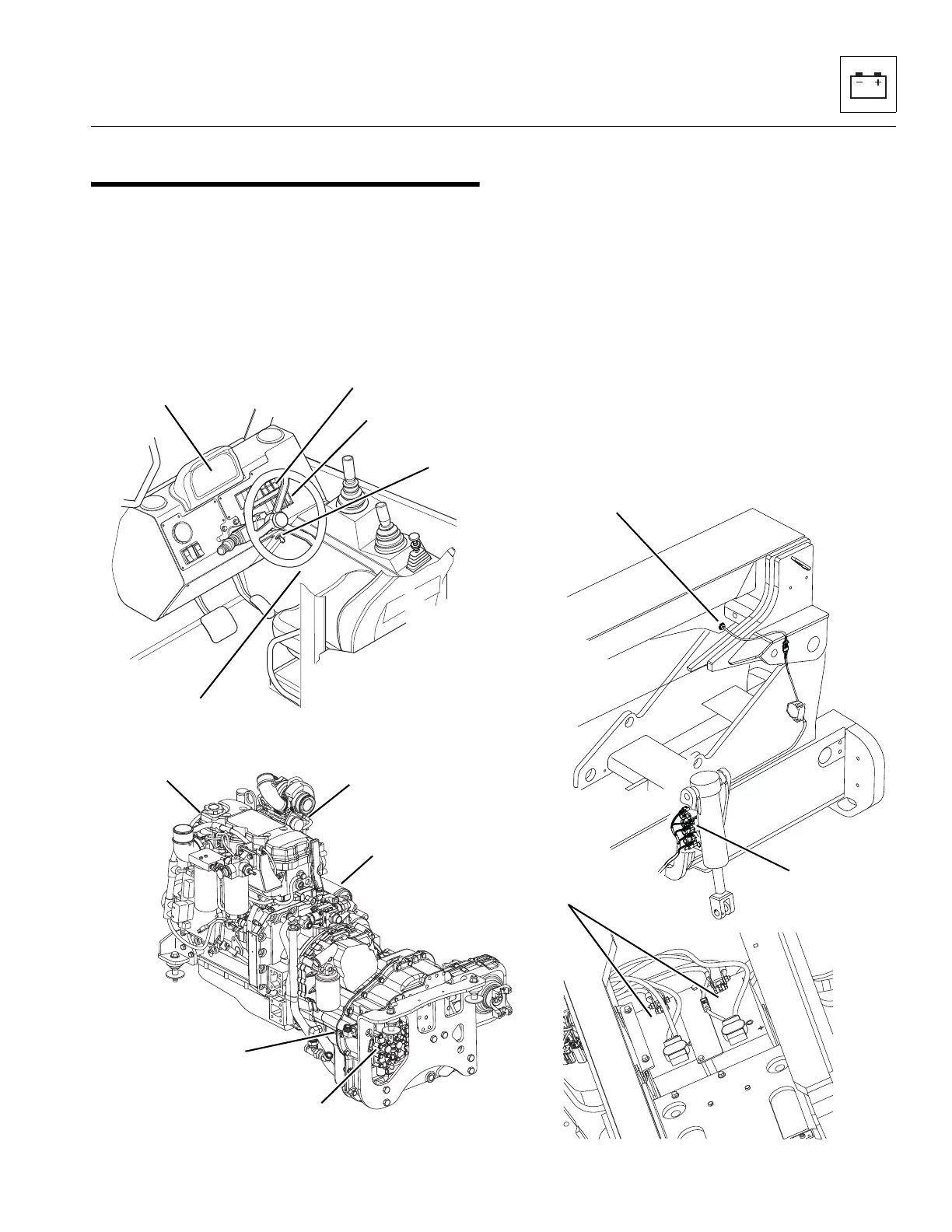

9.1.1 General Overview
MU6891
MU7630
DASH SWITCHES
BOOM PROXIMITY
SWITCH
STABILIZER
CYLINDER
SOLENOIDS
FUSE & RELAY PANEL
IGNITION SWITCH
HEATER/AC CONTROLS
FRONT DASH PANEL
MU7420
STARTER
ALTERNATOR
TRANSMISSION
SOLENOIDS
TRANSMISSION
TEMPERATURE
SWITCH
COOLANT
TEMPERATURE
SWITCH
BATTERIES
