Electrical System
9-4
944E-42
9.2 SPECIFICATIONS
Electrical system specifications are listed in Section 2,
“General Information and Specifications.”
9.3 SAFETY INFORMATION
9.4 FUSES AND RELAYS
9.4.1 Engine Compartment

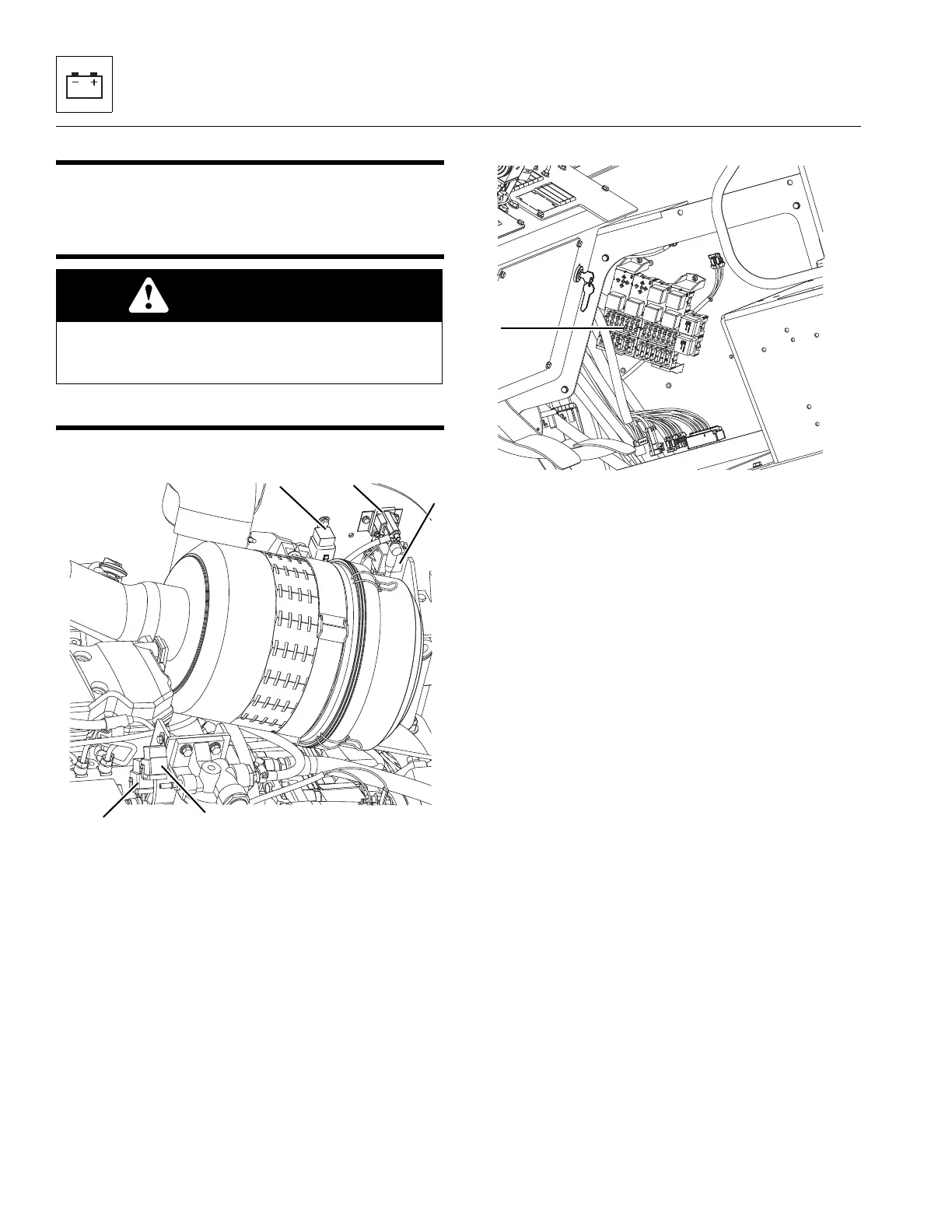

The starter relay (1), grid heater relay (2), grid heater fuse
block (3) for the cold start grid heater (if equipped) are
located inside the engine compartment and are mounted
on the firewall.
The oil pressure sender relay (4) and water temperature
sender relay (5) are located inside the engine
compartment and are mounted on the fuel filter bracket.
The fuse holder that protects the ECM diagnostic system
is located under the engine hood and is tie wrapped to the
wire harness by the engine starter.
9.4.2 Cab
The fuse and relay block (6) is mounted under the lower
right side of the operators side console. To gain access,
remove the cover plate from the right side console.
WARNING
DO NOT service the machine without following all
safety precautions as outlined in Section 1, “Safety
Practices,” of this manual.
