10.1 STABIL-TRAK™ SYSTEM
COMPONENT TERMINOLOGY
To understand the safety, operation and maintenance
information presented in this section, it is necessary that
the operator/mechanic be familiar with the names and
locations of the major assemblies of the Stabil-TRAK™

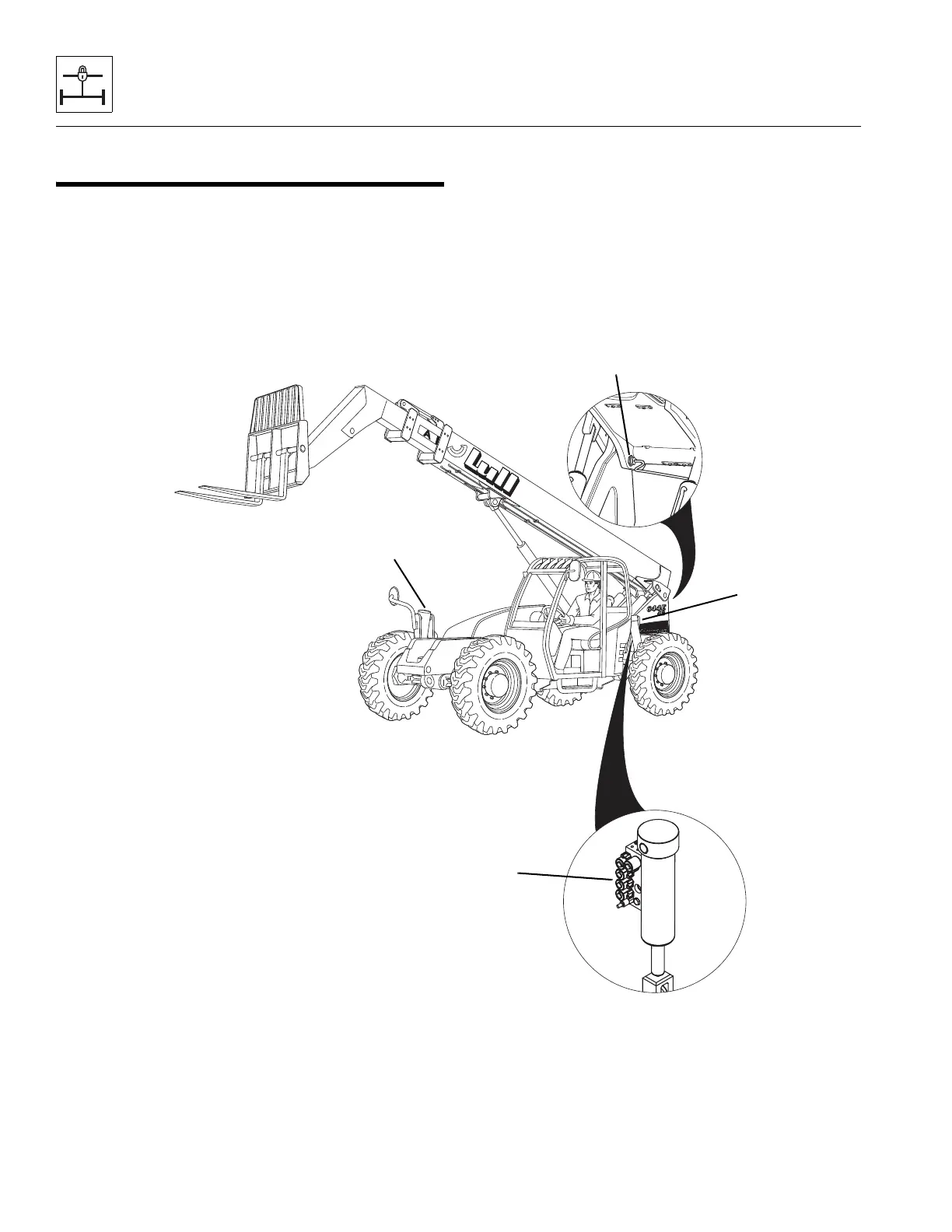

system. The following illustration identifies the
components that are referred to throughout this section.
BOOM PROXIMITY
SWITCH
FRAME SWAY
CYLINDER
STABILIZER
CYLINDER
STABIL-TRAK™
MANIFOLD
To Next Page
