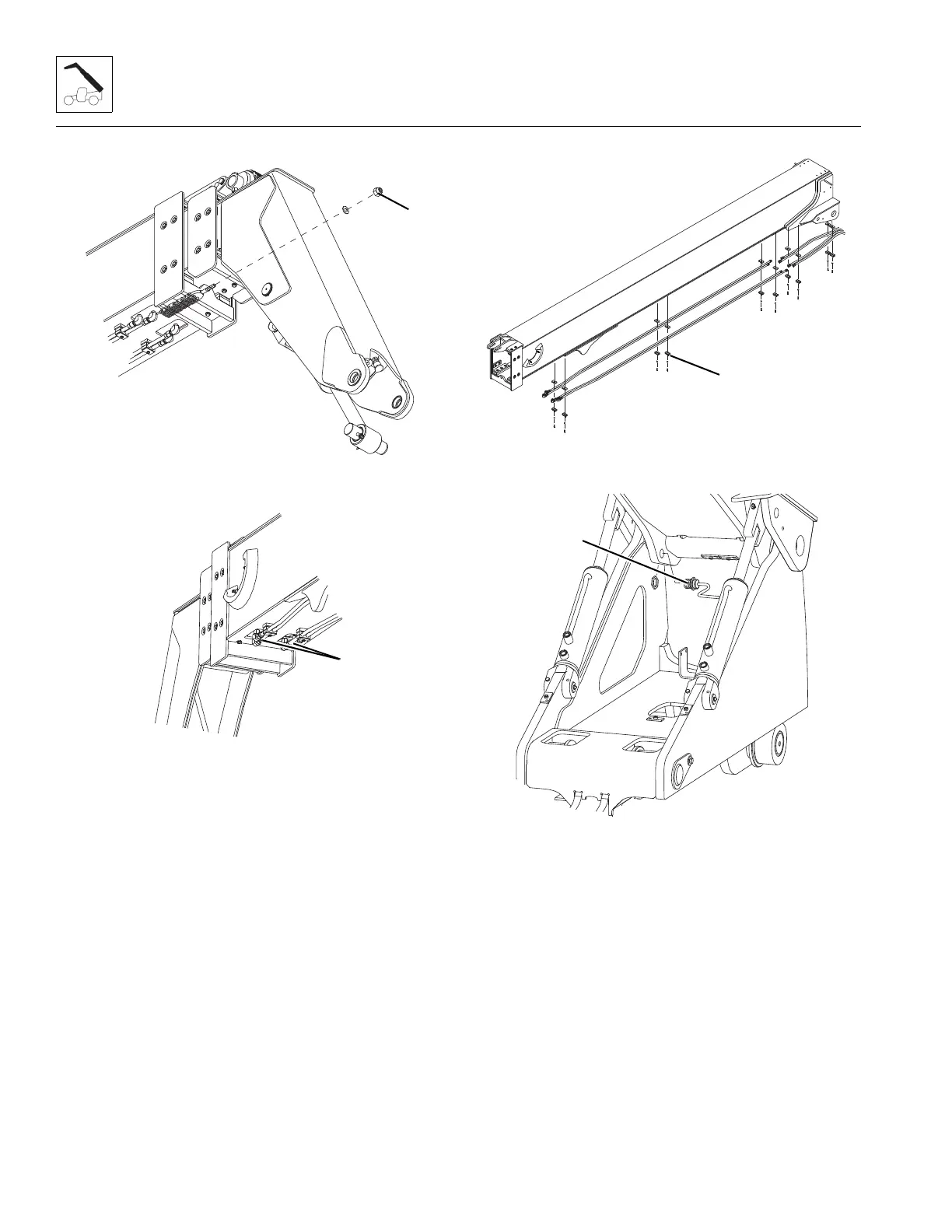

3.3.3 First Boom Section Removal
1. At the front of the boom, remove the retract chain
locknut (18) and washer.
2. Label, disconnect and cap the hydraulic hoses (19)
attached to the attachment tilt and auxiliary hydraulic
tubes. Plug all fitting to keep dirt & debris from
entering the hydraulic system.
3. Remove all clamps (1) securing the hydraulic tubes
and rear hydraulic hoses to the boom and frame.
Label and remove the tubes. Cap all hose ends.
4. Pull the hydraulic hoses out of the boom. Label all
parts for installation.
5. Remove the boom proximity sensor (2) from the
boom.
