IS 12 / IGA 12 Manual Introduction • 12

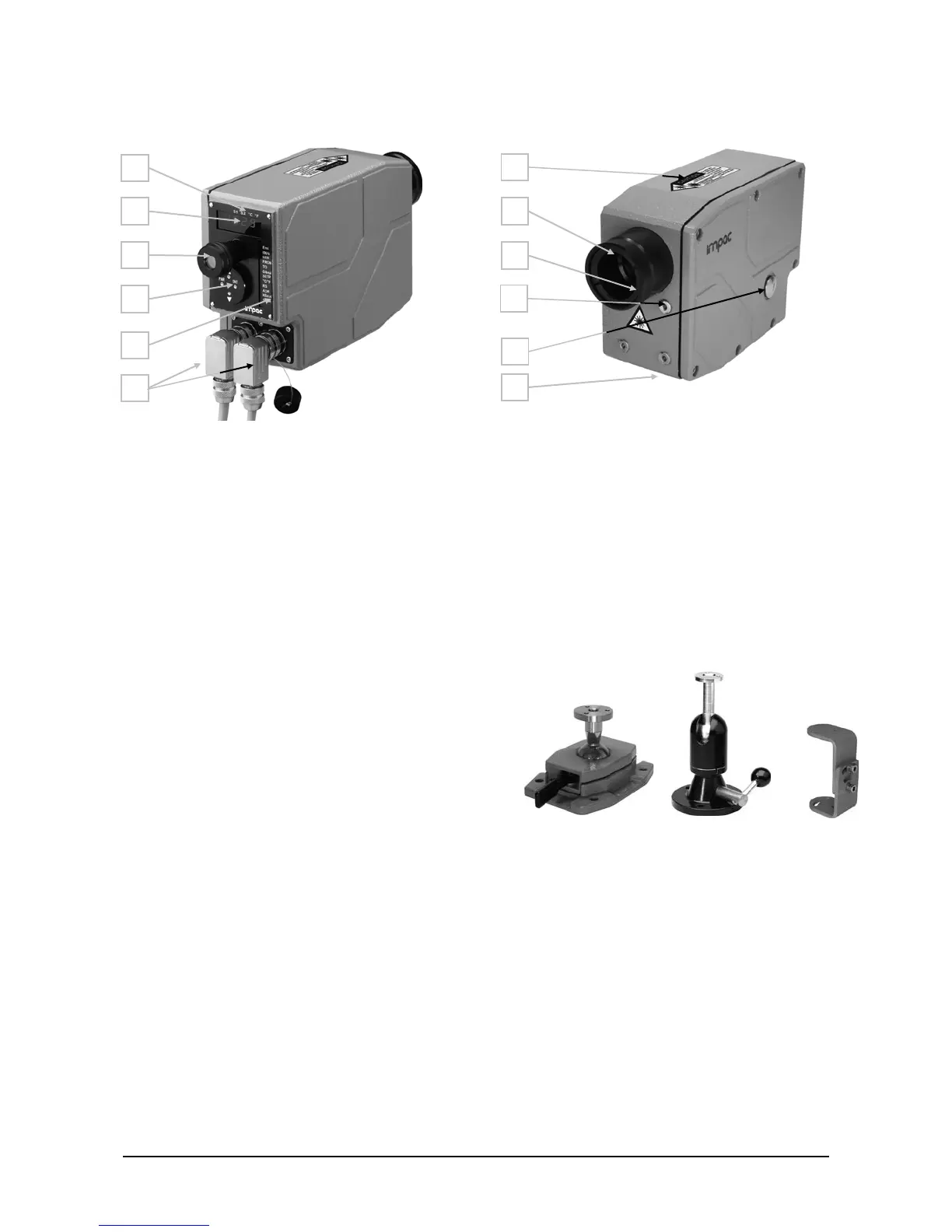

2.5 Physical user interface
1 Display °C or °F as well as active limit switches
2 LED display
3 Parallax free thru-lens view finder
4 Setting keys (operate with Tip of ball-point pen)
5 Parameter indicator
6 Main connection cable and
additional cable for limit contacts
7 Laser warning label (only instruments with
laser targeting light)
8 Fixed or focusable optics
9 Label with optics information
10 Mounting holes
11 Cap for scanner adjustments
(only types IS 12-S or IGA 12-S)
12 Type label (bottom side of the instrument)
2.6 Accessories (Option)
Numerous accessories guarantee easy installation of the pyrometers. The following overview
shows a selection of suitable accessories. You can find the entire accessory list with all reference
numbers in Section 10.2 Reference numbers accessories).
2.6.1 Mounting
For mounting and aligning the pyrometer to the
measured object, a mounting angle or ball and
socket mountings are available. The ball and socket
mounting is an easy way to align the pyrometer or
water cooling jacket (ball and socket mounting steel)
to the measured object. The quick-clamping-screws
of the ball and socket mounting enable easy and fast
adjustment of the pyrometer in all directions.
Ball and socket
mounting
Ball and socket
mounting, steel
Mounting
angle
1
2
3
4
6
10
11
8
7
5
12
9
