2.6.2 Cooling
The pyrometer can be used in ambient temperatures
outside of the specifications if preventive
maintenance is taken.
The cooling plate is used to protect the pyrometer
from heat coming from the front. The completely
covered water cooling jacket made from stainless
steel protects the pyrometer if exposed to a hot
environment. It is designed for ambient
temperatures up to 180 °C.

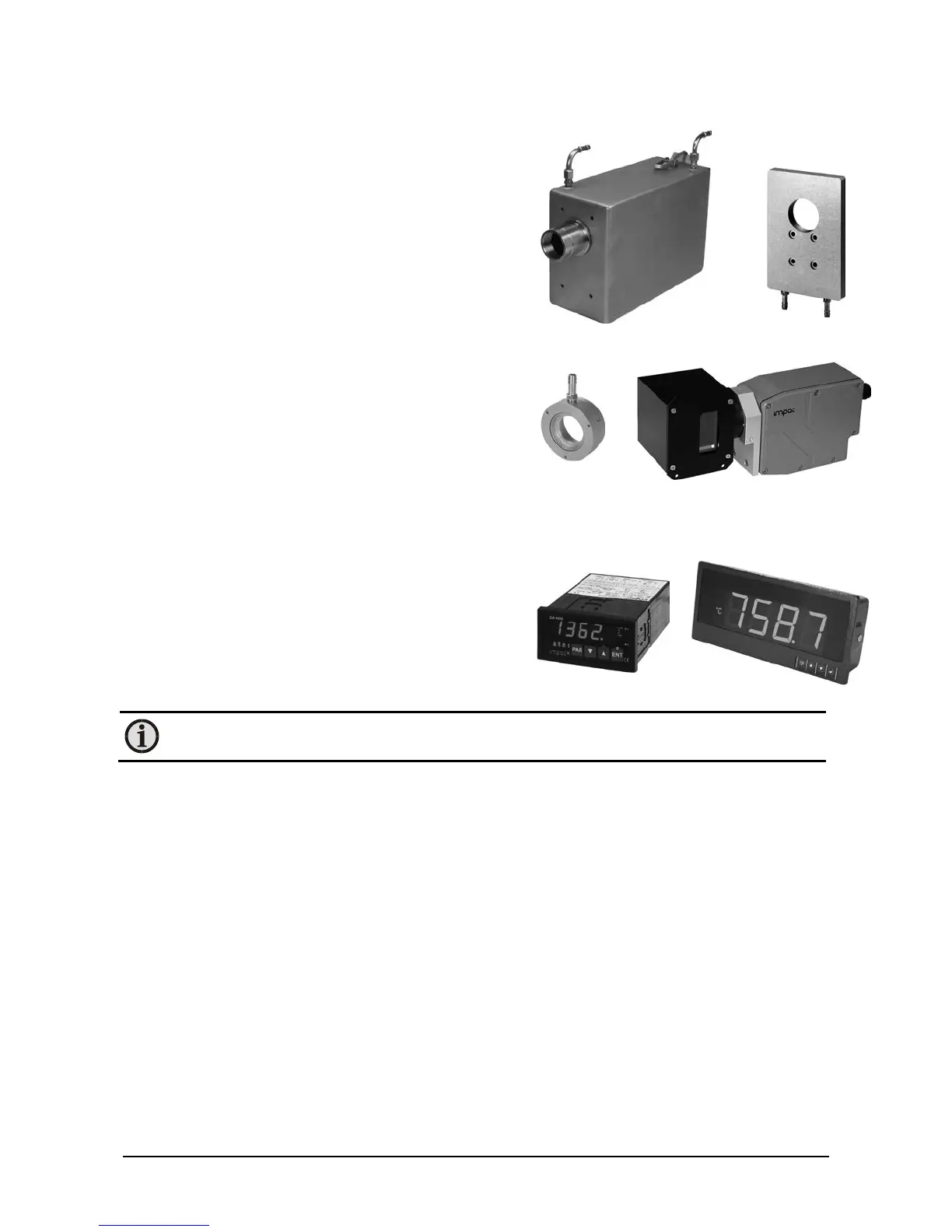

Water cooling jacket
Cooling plate
2.6.3 Miscellaneous
The air purge protects the lens from dust and
moisture contamination. Using dry and oil-free
pressurized air, it generates an air stream shaped like
a cone.
The rotary mirror attachment ROT 10 can only be
used in combination with pyrometers with fixed
optics. A rotating mirror system moves the measuring
beam in a line over the measuring object with a
scanning angle up to 73°.
Air purge
Rotary mirror attachment ROT 10
2.6.4 Displays
In addition to the built-in temperature indicator of
the pyrometer, LumaSense offers several digital
displays which can also be used for remote
parametrizing of the pyrometer.
Digital display DA 6000
LED large display
Note: In instances where s
trong incidence of daylight or lamp light into the view finder
can affect the measurement, the ocular has to be covered.
