Lumens VC-A51SB User Manual

English -
38

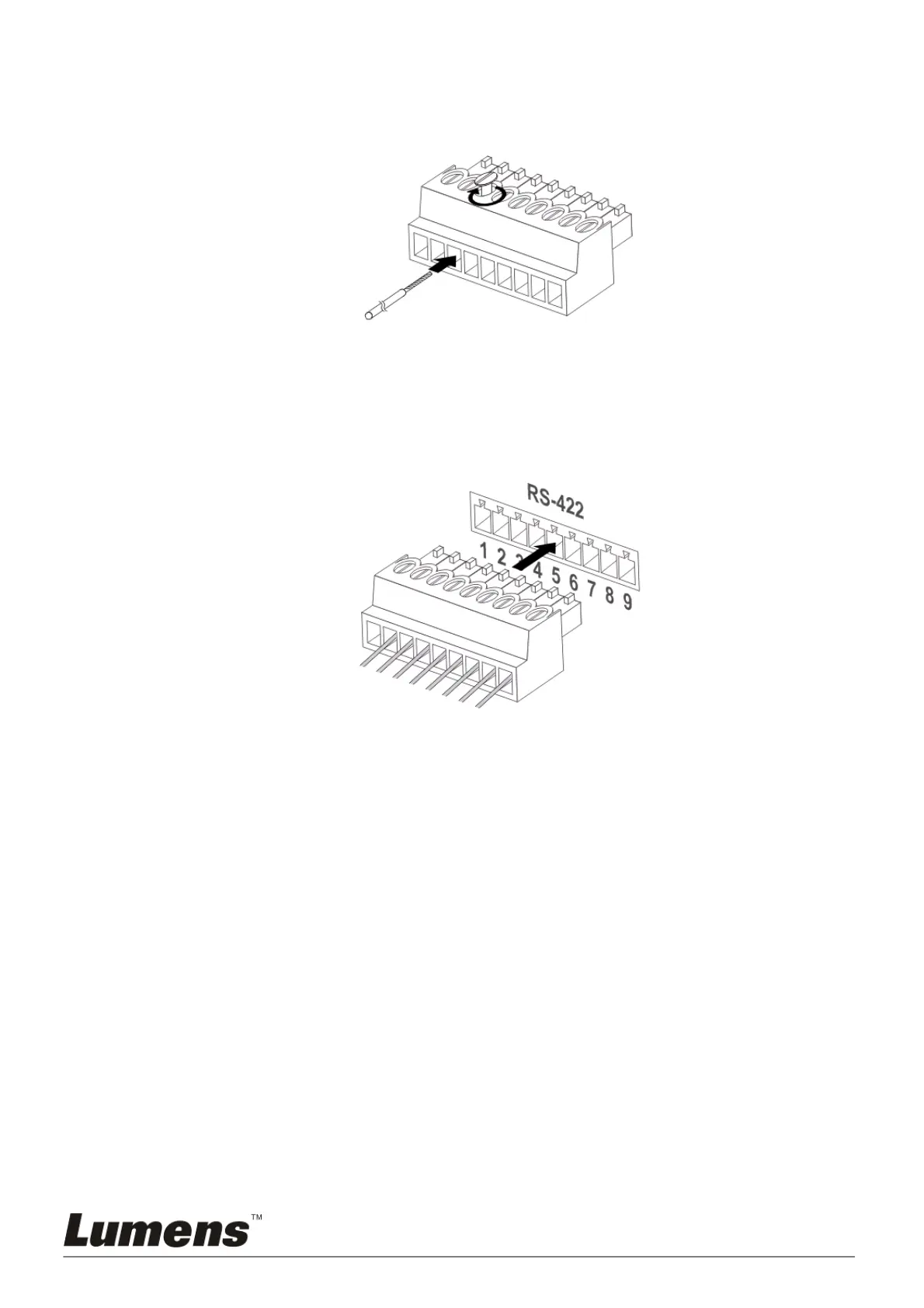

2. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into
the connector hole; then use flat screw driver to fix it
3. Insert the wired RS-422 connector back to the camera. Now the
connection is completed
<Note> When RS-422 connection is being used, do not use
RS-232C connection.

Lumens VC-A51SB Specifications

General

Brand	Lumens
Model	VC-A51SB
Category	Security Camera
Language	English
