34

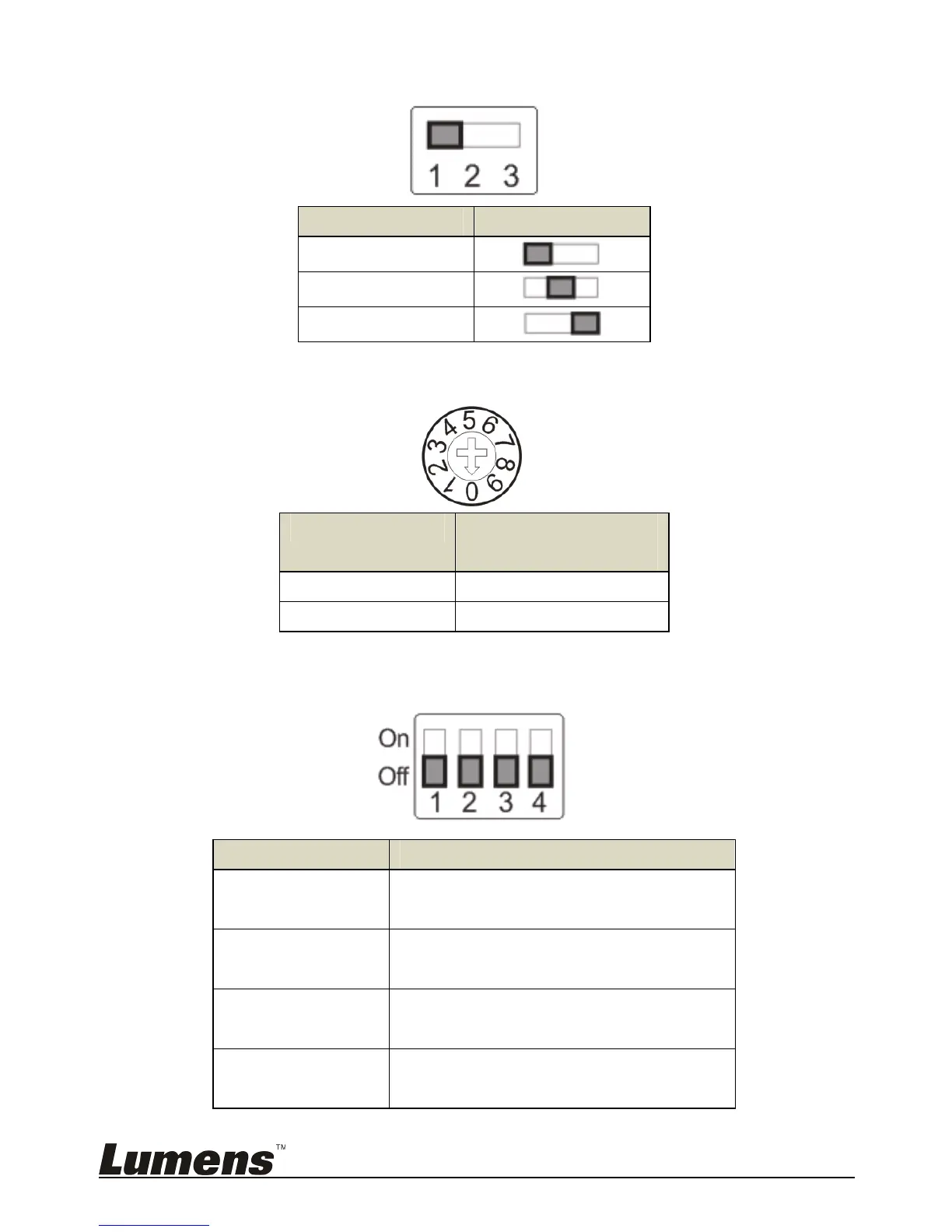

7.1.2 IR
SELECT
ID
Setting
1
2
3
7.1.3 Camera
Address
Selector
Setting
Function
Descriptions
0~7 ID
0~7
8~9 R
eser
ved
7.1.4 System
Sw
itch
Setting
Function Descriptions
DIP
1
RS-232C/RS-422 selector
OFF : RS-232C / ON : RS-422
DIP
2
Infrared signal output swit
ch
OFF : Of
f / ON : On
DIP
3
Communicati
on baud rate selector
OFF : 9600 / ON : 38400
DIP
4
Reserved
34
36
Table of Contents
Default Chapter
2
Table of Contents
2
Copyright Information
4
Chapter 1 Safety Instructions
5
Precautions
6
FCC Warning
6
EN55022 (CE Radiation) Warning
6
KCC Warning
7
Chapter 2 Package Contents
8
Chapter 3 Product Overview
9
Overview
9
Description of LED Indicator
9
Chapter 4 Instruction for Installation
10
Preparation before Installation
10
Instruction for Installation
10
Connecting the Device
19
Chapter 5 Remote Control and Setting Menu
22
Functions of Remote Control
22
Setting Menu
23
Chapter 6 Descriptions of Major Functions
31
I Would Like to Switch to VC-G30
31
I Would Like to Save the Current Lens Position Data
31
I Would Like to Clear the Saved Position Data
31
I Would Like to Turn on the Back Light Compensation Function
31
I Would Like to Adjust the Shooting Angle of the Lens
31
I Would Like to Zoom In/Out Images
31
I Would Like to Adjust the Focal Length
32
I Would Like to Adjust the Focus Speed
32
I Would Like to Set the Image Mode
33
I Would Like to Freeze Images
33
I Would Like to Rotate the Image
33
I Would Like to Change the Camera Direction
33
I Would Like to Display the Current Status
33
Chapter 7 DIP Switch Setting
34
Dip Switch
34
RS-422 Connection
36
Chapter 8 Troubleshooting
38
