Chapter 3 Product Overview

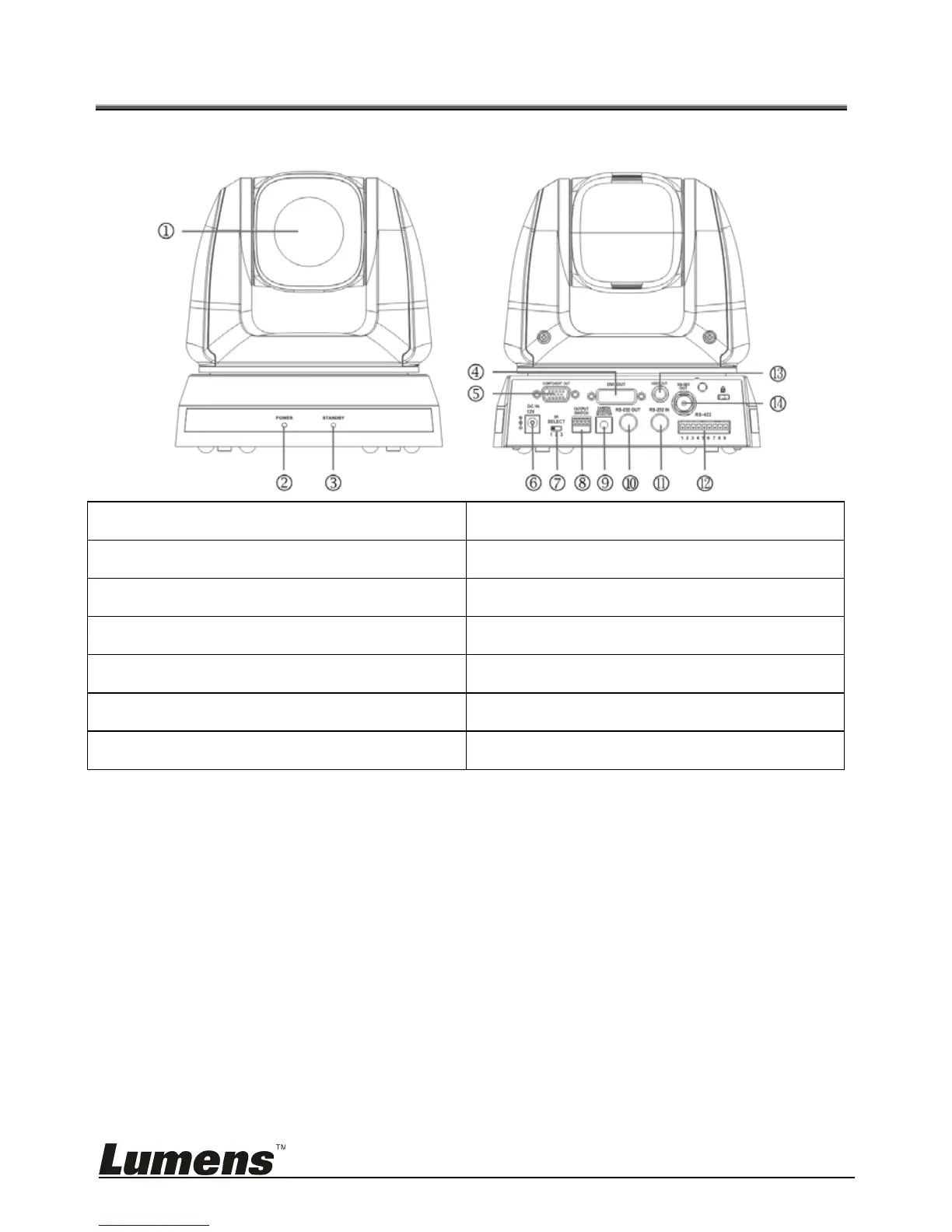

3.1 Overview
1. Camera lens 2. Power LED indicator
3. Standby LED indicator 4. DVI output
5. Component output 6. Power input
7. IR SELECT 8. OUTPUT Switch
9. Camera Address Selectors 10. RS-232 output
11. RS-232 input 12. RS-422 connection
13. VIDEO output 14. 3G-SDI output
3.2 Description of LED indicator
3.2.1 Power：
3.2.1.1 No light: Power off
3.2.1.2 Green light: In use
3.2.1.3 Flickering green: Signal from the remote control is received;
the indicator flickers every 0.5 second
3.2.2 Standby：
3.2.2.1 Orange: In standby mode
3.2.2.2 No light: Power on
Front View Back View
