36

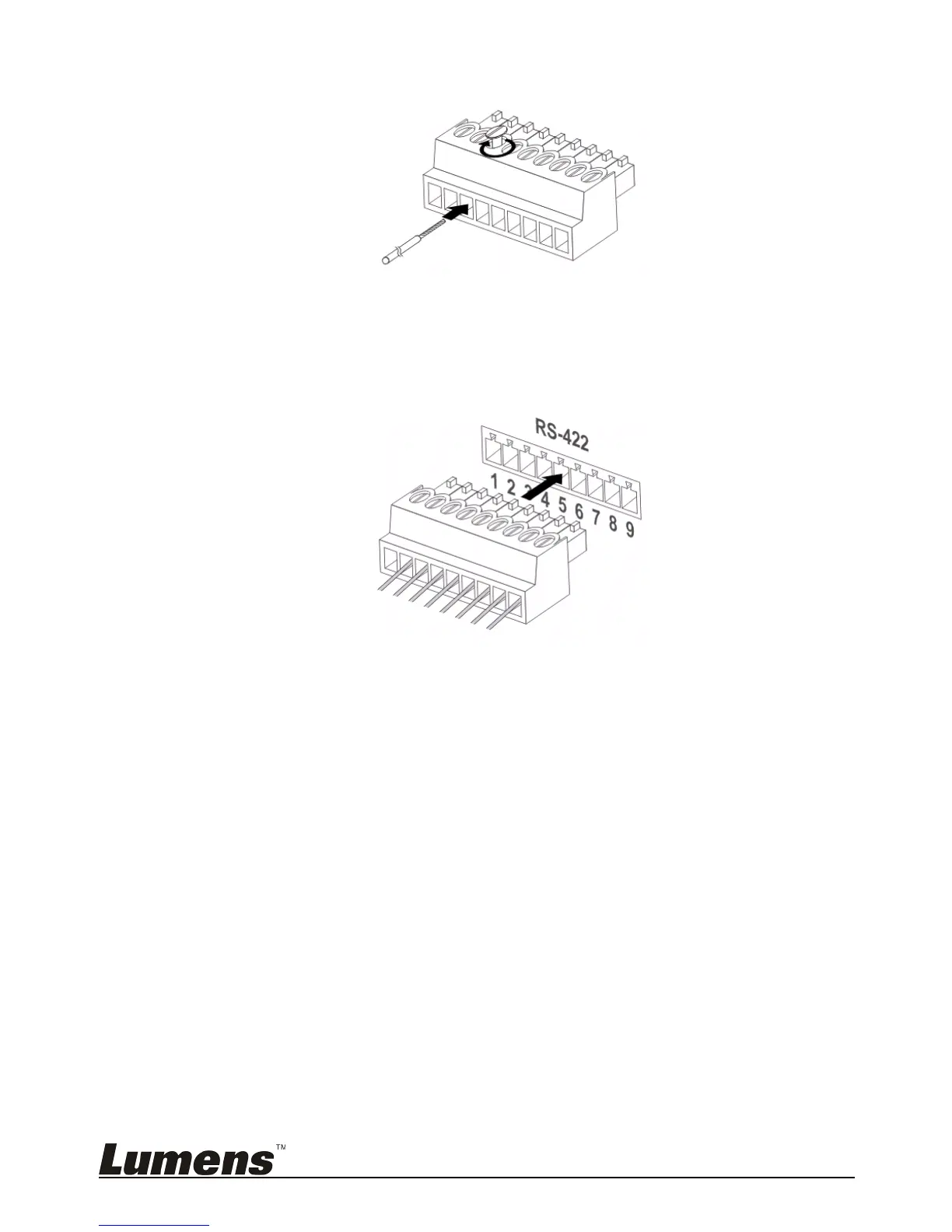

the connector hole; then use flat screw driver to fix it
3.
Insert the wired RS-422 co
nnect
or back to the camera
. Now the
connec
tion is c
ompleted
<Note>
When RS-4
22 connection is being used, do not use
RS-232C connection.
