The name can contain commas (,) to distinguish different
groups
Example: default, 123, abc means this machine belongs to
three groups at the same time (default/ 123/ abc)
4
NDI|HX
Set NDI HX 2/ HX3/ Off
 NDI HX 2/ HX3: Support NDI (ONVIF cannot find
devices, and RTSP/ RTMP/ RTMPS/ MPEG-TS/ SRT
streams cannot be used.)
 Off: Support RTSP/ RTMP/ RTMPS/ MPEG-TS/ SRT,
and ONVIF can find devices but cannot be used with
NDI Tool
V
V
5
Streaming 1 / 2 / 3
This can be seen when 5.2.4 Settings - System Settings
- Output Signals is set to HDMI + Streaming
Turn on streaming function. VC-A71SN supports 3
streaming outputs. Please refer to Streaming Parameter
Setting table below for relevant settings
V
6
UVC
This can be seen when 5.2.4 Settings - System Settings
- Output Signals is set to HDMI + UVC
 Encode Format:
 3840x2160 29.97 / 25 fps: H.264
 Less than 1080p (inclusive): H.264/ MJPEG
 Resolution: It is shown based on 5.2.4 Settings -
System Settings – Resolution
 Frame Rate: 3840 x 2160 can only select the highest
29.97 fps
V
V
7
Apply
After the setting has been modified, select this button to
apply the setting
V
V

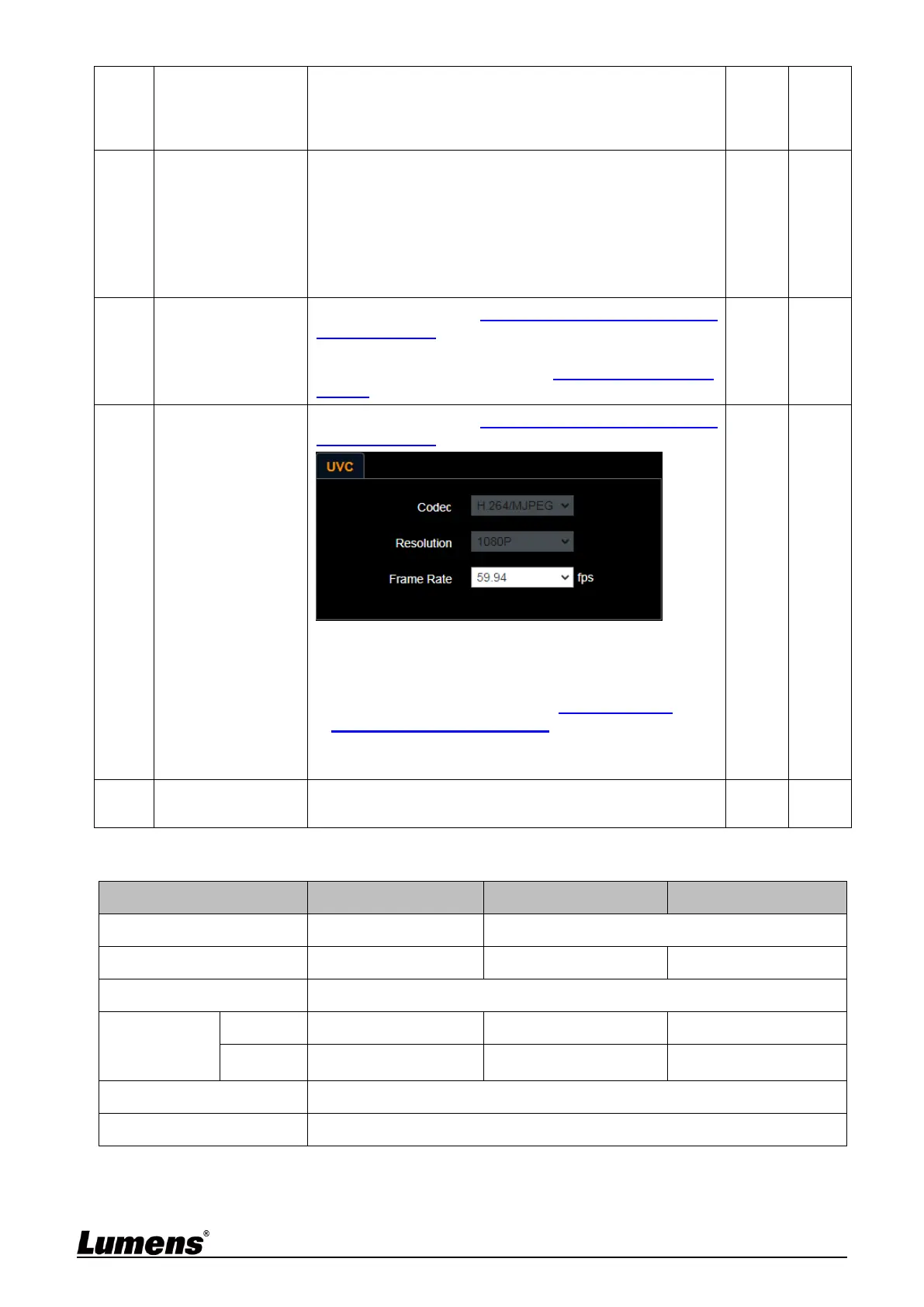

 Streaming parameter setting
Function
Streaming 1
Streaming 2
Streaming 3
Encode Format
H.265
H.264
Resolution
4K /1080P / 720P
1080P / 720P/ 1080i
640x360
Frame Rate
Setting according to the supported resolution
Bit Rate(kbps)
Range
2,000~20,000
2,000~20,000
512~5,000
Factory
Default
15,000
7,500
1,000
Rate Control
CBR / VBR
IP Ratio
Setting according to the supported resolution
