Lund Cargo Carrier - Assembly Steps; Attaching Cargo Carrier to Vehicle Roof Rack

1
2
3
Page 2 of 4
Page 3 of 4
Assembly Steps
Installation Steps
Rev. B
45044
Rev. B
45044
Insure that all the hardware is tightened securely and the cargo carrier does not move along the roof rack.
Self Tapping Screw
(2) Required
Halves Cargo
Attaching Cargo Carrier to Vehicle Roof Rack:
Note: Follow your vehicle's owner's manual for instructions for altering the roof rack's support bars spacing (if
equipped).
If your vehicle's roof rack is adjustable maximize the support bar spacing for the Cargo Carrier. See Clamp
Installation illustration.
Star Knobs
Top Clamp
U-Bolt
M6-1 Nuts
Clamp Installation
(4X)

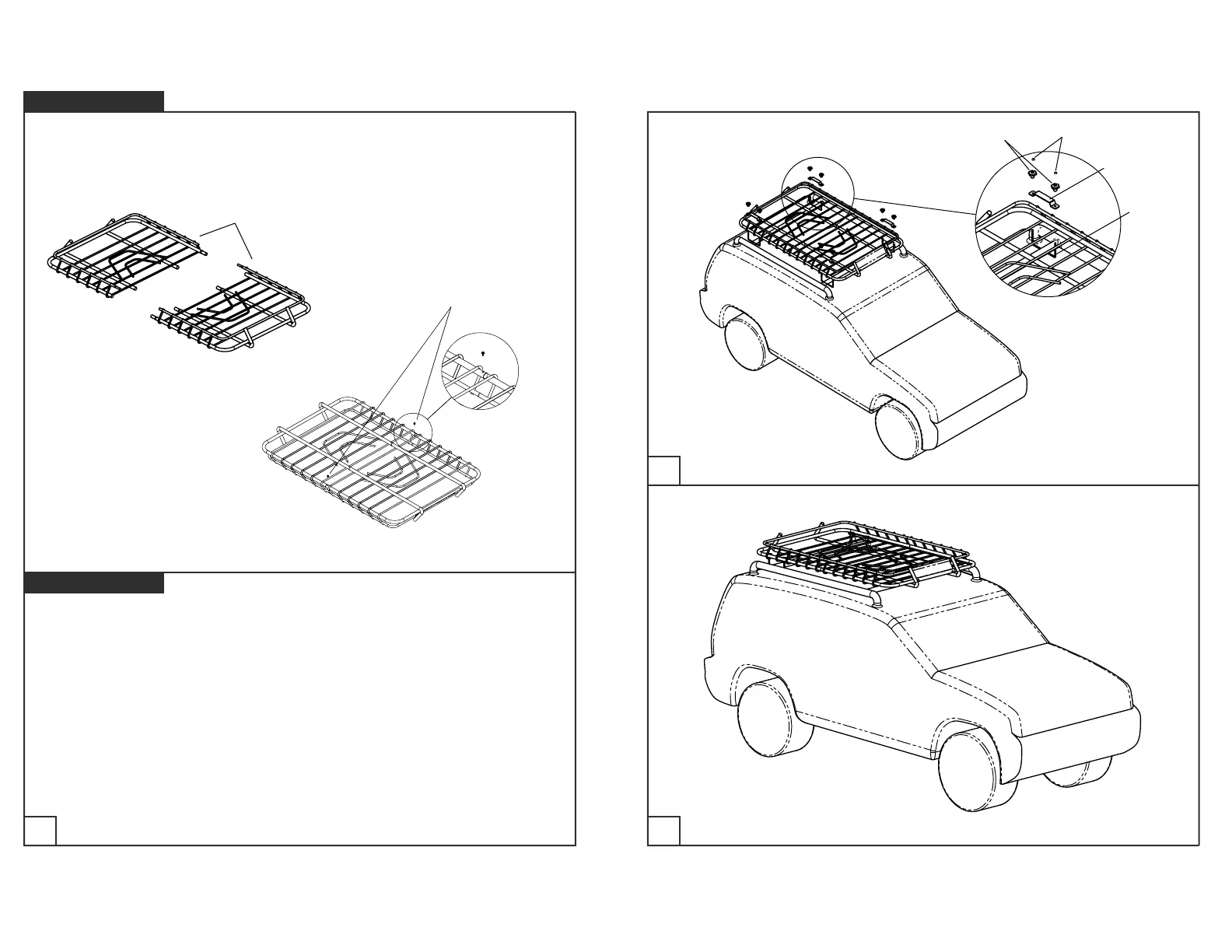

Assemble the cargo carrier as shown. Use a rubber mallet, if needed, to
mate the halves. Lock the carrier together use the tapping screws as
shown.
