Lund REVOLUTION - Light Bar Installation; Bull Bar Installation

I-Sheet Number I-20251 Rev.A
REVOLUTION BULL BAR
2007-CURRENT CHEVY SILVERADO1500/GMC SIERRA1500
2007-CURRENT TAHOE/SUBURBAN/YUKON/YUKON XL
2007-14 CADILLAC ESCALADE 1500/ESV/EXT
2007-13 CHEVY AVALANCHE
Page 2 of 7 11/21/16

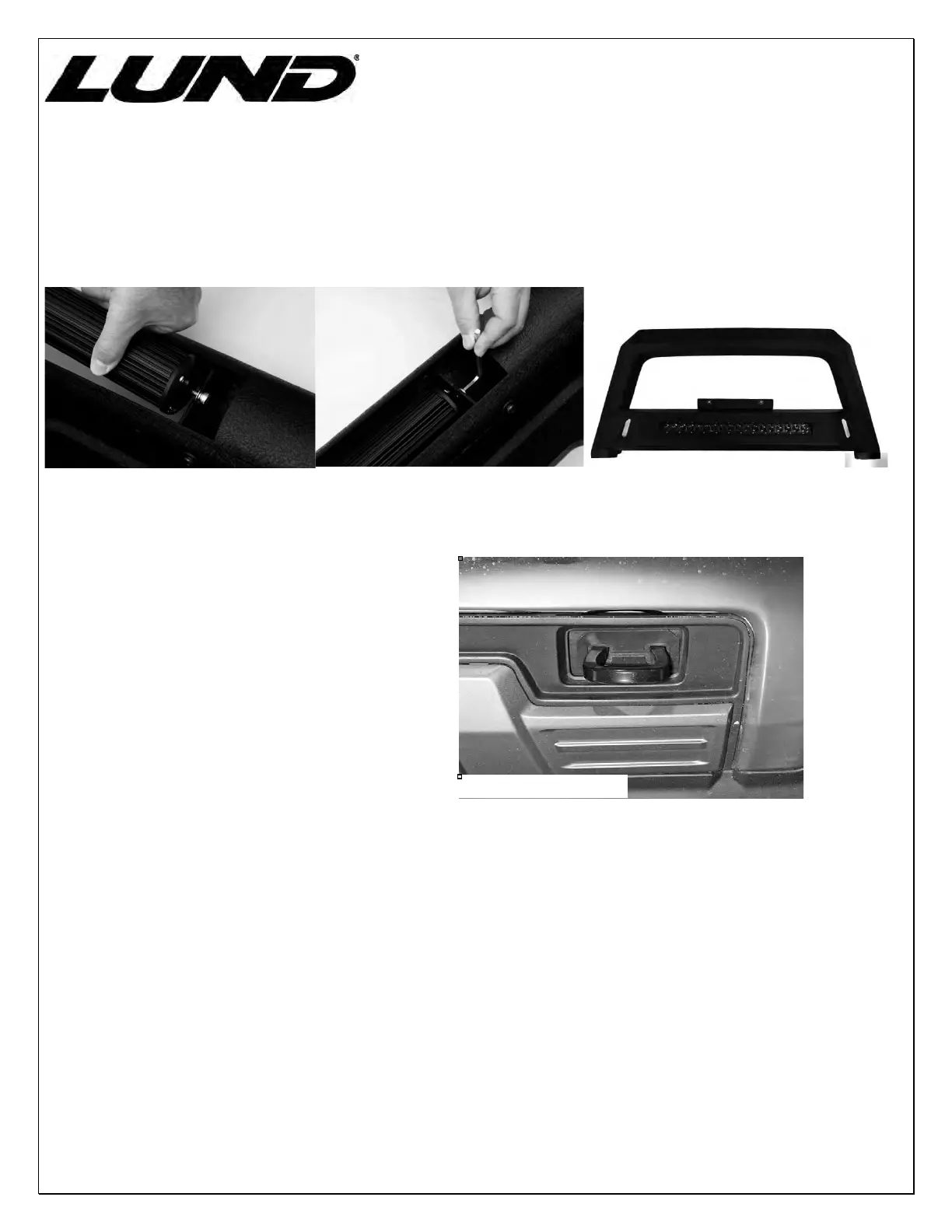

LIGHT BAR INSTALLATION:
1. Remove light bar from box and screw bolts and washers into each end.
2. Slide bolts into crossbeam brackets with the washers on the outside of the bracket, and tighten using the
supplied allen key.
BULL BAR INSTALLATION:
1. Start Bull Bar installation from under the front of the vehicle. Determine if the vehicle is equipped with tow
hooks. IMPORTANT: Tow hooks cannot be reinstalled with the Bull Bar.
Tow Hook equipped vehicles (Figure 1):
(Fig 1) Tow hook
pictured
