Lund REVOLUTION - Tow Hook Removal Procedures

I-Sheet Number I-20251 Rev.A
REVOLUTION BULL BAR
2007-CURRENT CHEVY SILVERADO1500/GMC SIERRA1500
2007-CURRENT TAHOE/SUBURBAN/YUKON/YUKON XL
2007-14 CADILLAC ESCALADE 1500/ESV/EXT
2007-13 CHEVY AVALANCHE
Page 3 of 7 11/21/16
Tow hook removal-option 1: Remove the hex bolts securing the driver side of the bumper
to the bracket. Use a short pry bar or large screwdriver to move the tab on the bumper
bracket up and away to clear the hex bolt and slide it out past the bumper bracket, (Figures
2A & 2B).
NOTE: The driver side tow hook on some later models may be difficult to remove and
assistance is highly recommended on these models. The following info only applies to the
later GM models.
Option 2: Remove plastic radiator grille. Loosen and/or completely remove the front
bumper to remove the long hex bolt in the driver side tow hook, (Figure 2B).
a. Reattach the bumper after both tow hooks have been removed and the openings have been
checked for Bracket clearance. Tighten all factory bumper hardware at this time.
b. Proceed to Step 2.

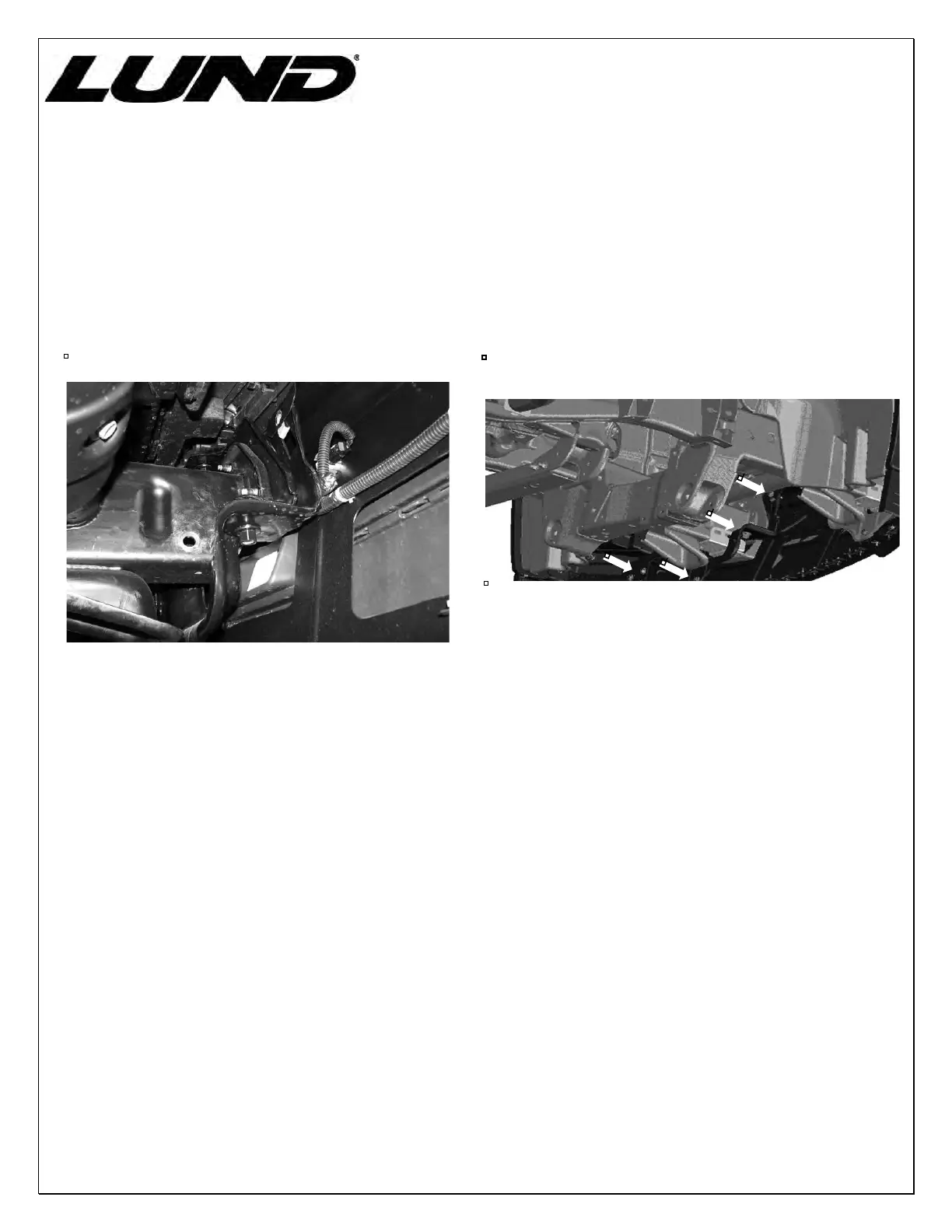

(Fig 2B) driver side illustrated from behind bumper to
show bumper bolt locations
(Fig 2A) Driver side pictured from behind bumper
Remove the bolts securing the driver side of the
bumper to the bumper bracket. Use a large
screwdriver or pry bar to move the mounting tab up
enough to get the long bolt through the tow hook out
of the end of the frame
