CDD3000-HF Operation Manual
A.6 Layout

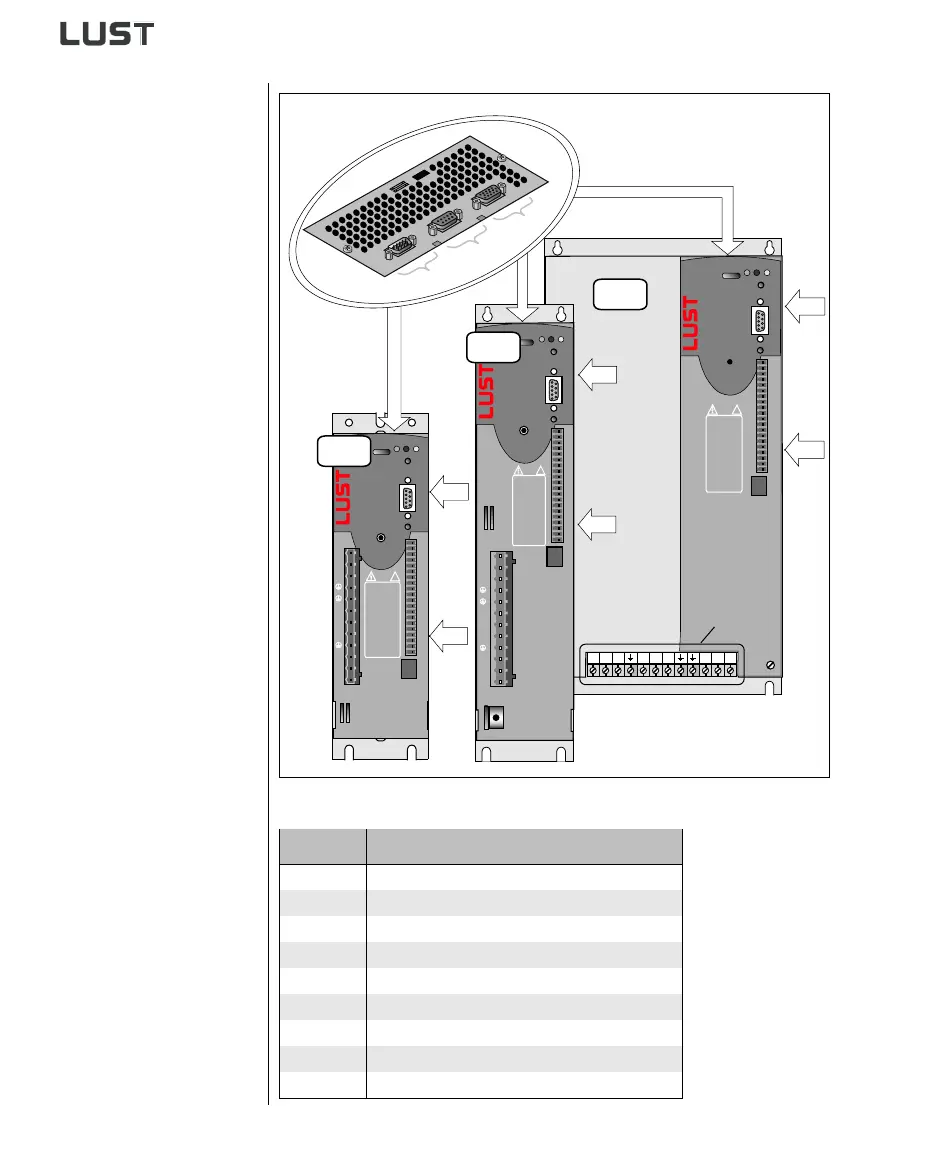

Figure A.3 Layout of CDD3000-HF drive controller, size 1 to 5
Terminal Explanation
X1 Power connections
X2 Control connections
X3 Motor PTC connections
X4 PC/KP200 connection (RS232-interface)
X5 Encoder simulation/master encoder
