Need help? Call the Lutron Technical Support Center, 24/7 at 800.523.9466

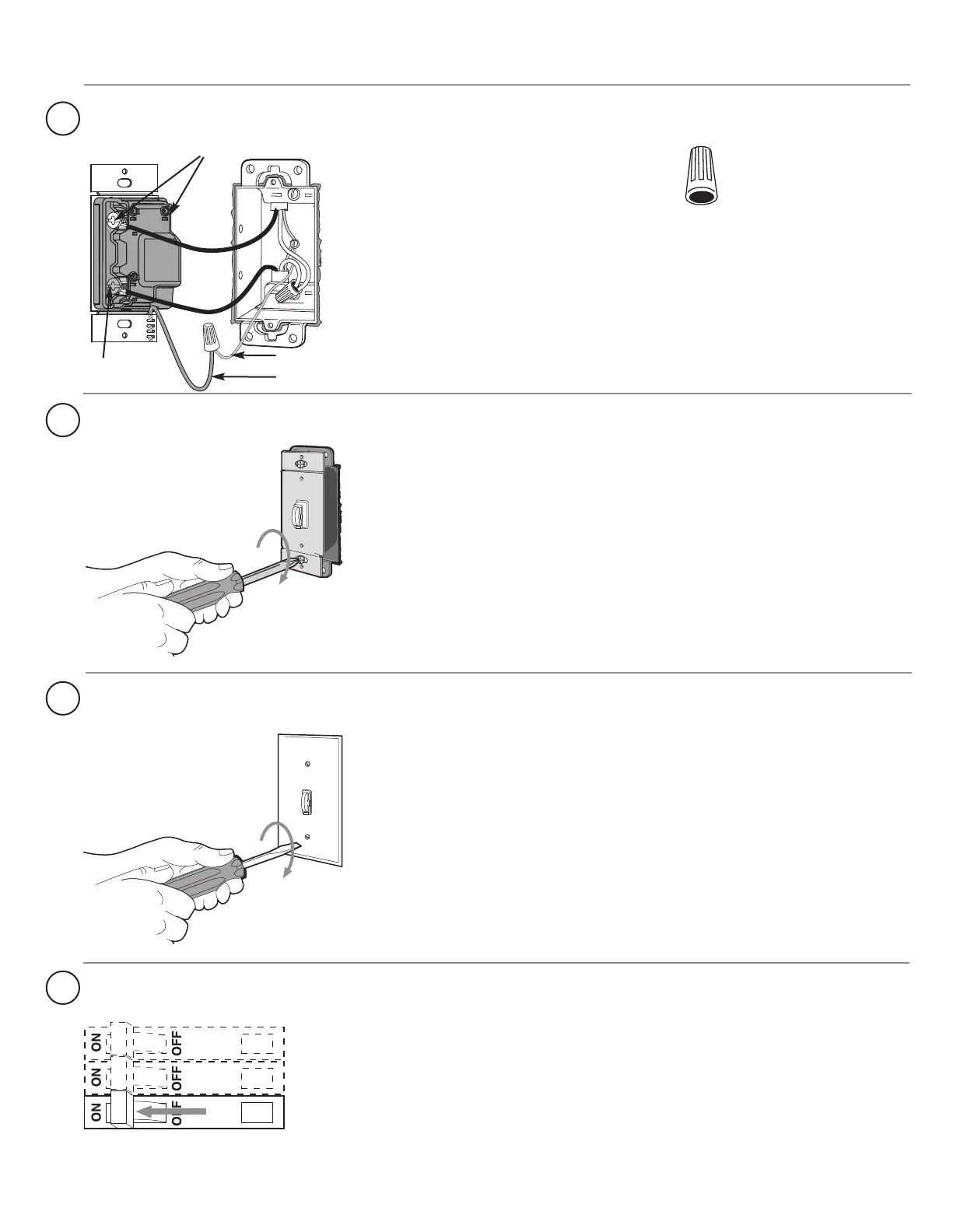

Mount dimmer
Turn power on at circuit breaker or replace fuse
Install dimmer
A. Connect the green or bare wire
(ground wire) to the green wire
on the dimmer with a wire nut.
B. Connect one wire to the black
screw on the dimmer.
C. Connect the other wire to one of
the two gold colored screws (brass)
on the dimmer.
5
6
7
8
Replace wallplate
brass screws
ground wire
green wire
black screw
Need help? Call the Lutron Technical Support Center, 24/7 at 800.523.9466
Enjoying Your System
Monitor and control lights throughout your home from one place
Dim to transform the look of any room
1
3
Have your lights welcome you home
2
Tap to turn lights
on and off.
Slide to adjust
light level.
Turn all dimmers
on to 100%
brightness.
Turn all
dimmers
off.
Turn all dimmers
on to the slider
levels.
Turn all dimmers on to 100% brightness.
Turn all dimmers off.
Turn dimmer on (to slider level) or off.
LED indicates dimmer is on.
Double-tap turns light on to 100%.
All On All Off
Rooms
Fr Entry
Grge Ext
Foyer
Kitchen
Family
Double-tap button turns
lights on to 100%.
Hold button for 1-2
seconds to start 10
second fade to off.
Service Switch: Pull service
switch out to open position
to replace light bulbs. Push
service switch in after new
bulb is installed.
