QS System QSE-IO Control Interface
369374a 8 08.07.12

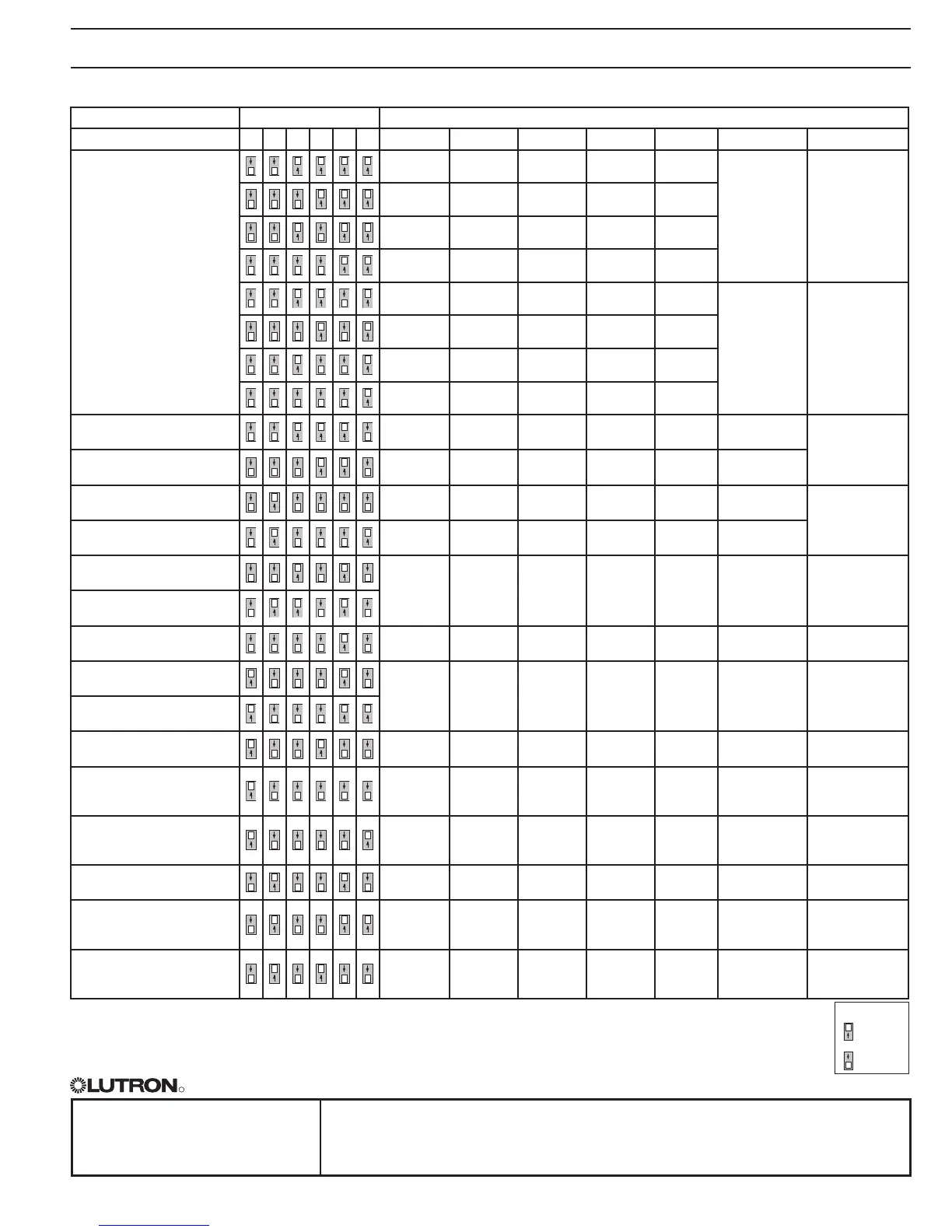

QSE-IO Operating Modes and DIP Switch Settings Overview
Mode Dip Switch Contact Closures Invoke:
Configuration 3 4 5 6 7 8 Input 1 Input 2 Input 3 Input 4 Input 5 Inputs Outputs
Scene selection
Scene 1 Scene 2 Scene 3 Scene 4 Scene Off
Maintained or
Momentary
Maintained
Scene 5 Scene 6 Scene 7 Scene 8 Scene Off
Scene 9 Scene 10 Scene 11 Scene 12 Scene Off
Scene 13 Scene 14 Scene 15 Scene 16 Scene Off
Scene 1 Scene 2 Scene 3 Scene 4 Scene Off
Maintained or
Momentary
Momentary
Scene 5 Scene 6 Scene 7 Scene 8 Scene Off
Scene 9 Scene 10 Scene 11 Scene 12 Scene Off
Scene 13 Scene 14 Scene 15 Scene 16 Scene Off
Special
(maintained)
Sequence
5–16
Zone
lockout
Scene
lockout
Panic
mode
Timeclock Maintained
Maintained
Special
(momentary)
Sequence
5–16
Zone
lockout
Scene
lockout
Panic
mode
Timeclock Momentary
Special 2
(maintained)
Sequence
1–4
Zone
lockout
Scene
lockout
Panic
mode
Afterhours
mode
Maintained
Maintained
Special 2
(momentary)
Sequence
1–4
Zone
lockout
Scene
lockout
Panic
mode
Afterhours
mode
Momentary
Shade input preset
(“stop if moving”)
Shade
open
Shade
preset 1
Shade
preset 2
Shade
preset 3
Shade
close
Maintained or
Momentary
Maintained
Shade input preset
(no “stop if moving”)
Shade input
(raise, lower, stop)
Shade
open
Shade
raise
Shade
lower
Shade stop
Shade
close
Momentary or
Maintained
Maintained
Shade input dual group
(“stop if moving”)
Open
Group 1
Close
Group 1
Open
Group 2
Close
Group 2
—
Maintained or
Momentary
Maintained
Shade input dual group
(no “stop if moving”)
Shade input dual group
(raise/lower)
Raise/Stop
Group 1
Lower/Stop
Group 1
Raise/Stop
Group 2
Lower/Stop
Group 2
— Momentary Momentary
Shade input toggle
(“stop if moving”:
open/stop/close/stop)
Toggle
Group 1
Toggle
Group 2
Toggle
Group 3
Toggle
Group 4
Toggle
Group 5
Momentary Momentary
Shade input toggle
(no “stop if moving”:
open/close)
Toggle
Group 1
Toggle
Group 2
Toggle
Group 3
Toggle
Group 4
Toggle
Group 5
Maintained Momentary
AC Shade output
(maintained outputs)
Open
Group 1
Stop Group
1
Close
Group 1
Open
Group 2
Close
Group 2
Maintained or
Momentary
Maintained
AC Shade output
(momentary stop)
Open
Group 1
Stop Group
1
if moving
Close
Group 1
Open
Group 2
Close
Group 2
Maintained or
Momentary
Maintained
(except 2, which
is Momentary)
AC Shade output
(momentary outputs)
Open
Group 1
Stop Group
1
if moving
Close
Group 1
Open
Group 2
Close
Group 2
Maintained or
Momentary
Momentary
Notes
• ForACshadeswithonly2inputs(open/close),setDIPswitch1totheup/onpositiontoenablethefeature
thatmimics“stop”(assertsboth“open”and“close”CCOstogetherwhena“stop”commandisreceived).
• TheQSE-IOprovidesnopower,onlyacontrolsignal,toACshades.Refertotheinstructionsthatcamewithyourshadesformore
information.
