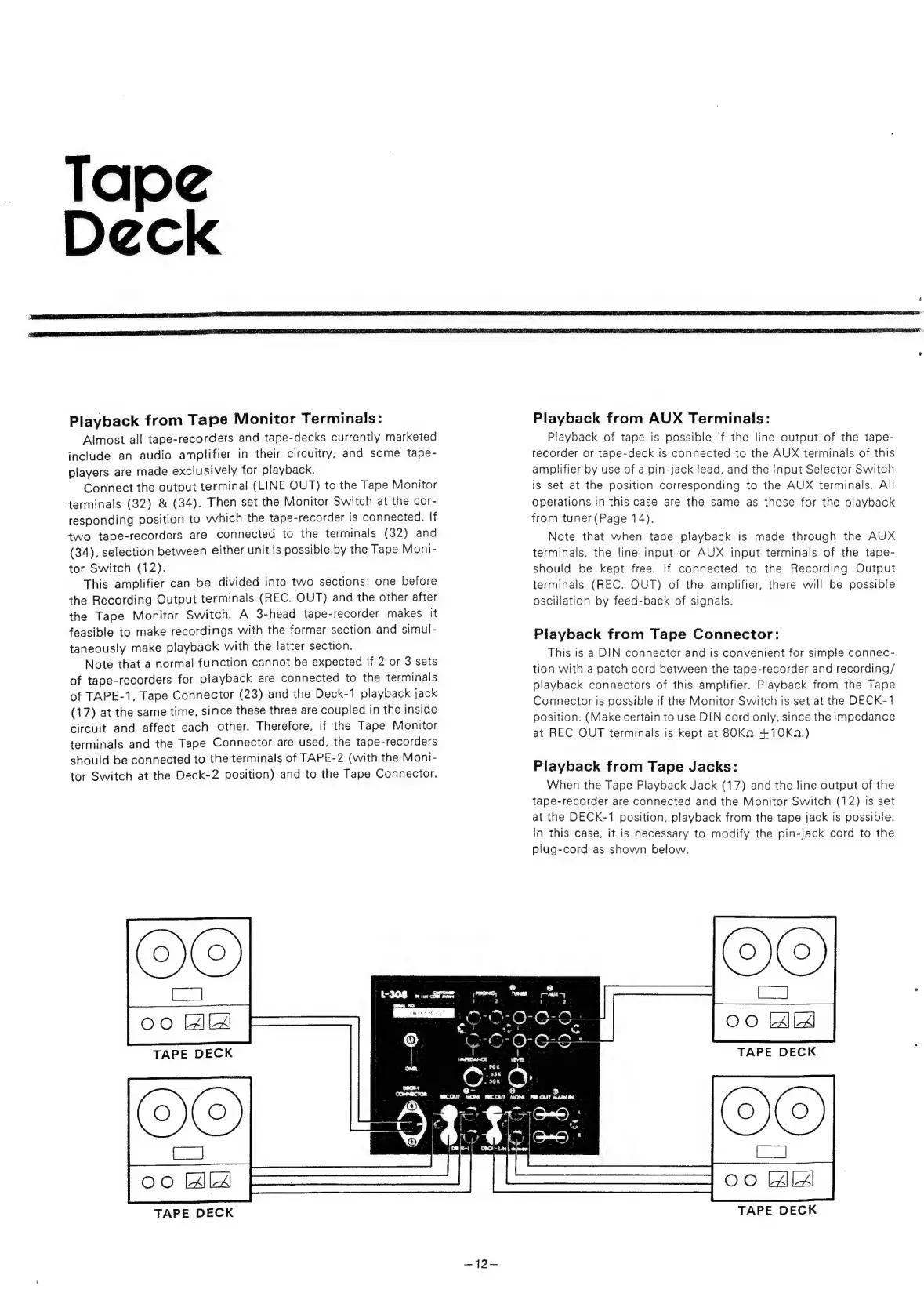

Playback
from
Tape
Monitor
Terminals:
Almost
all
tape-recorders
and
tape-decks
currently
marketed
include
an
audio
amplifier
in
their
circuitry,
and
some
tape-
players
are
made
exclusively
for
playback.
Connect
the
output
terminal
(LINE
OUT)
to
the
Tape
Monitor
terminals
(32)
&
(34).
Then
set
the
Monitor
Switch
at
the
cor-
responding
position
to
which
the
tape-recorder
is
connected.
If
two
tape-recorders
are
connected
to
the
terminals
(32)
and
(34),
selection
between
either
unit
is
possible
by
the
Tape
Moni-
tor
Switch
(12).
This
amplifier
can
be
divided
into
two
sections:
one
before
the
Recording
Output
terminals
(REC.
OUT)
and
the
other
after
the
Tape
Monitor
Switch.
A
3-head
tape-recorder
makes
it
feasible
to
make
recordings
with
the
former
section
and
simul-
taneously
make
playback
with
the
latter
section.
Note
that
a
normal
function
cannot
be
expected
if
2
or
3
sets
of
tape-recorders
for
playback
are
connected
to
the
terminals
of
TAPE-1,
Tape
Connector
(23)
and
the
Deck-1
playback
jack
(17)
at
the
same
time,
since
these
three
are
coupled
in
the
inside
circuit
and
affect
each
other.
Therefore,
if
the
Tape
Monitor
terminals
and
the
Tape
Connector
are
used,
the
tape-recorders
should
be
connected
to
the
terminals
of
TAPE-2
(with
the
Moni-
tor
Switch
at
the
Deck-2
position)
and
to
the
Tape
Connector.
OO LALA
TAPE DECK
t
TAPE DECK
= be
Playback from AUX Terminals:
Playback of tape is possible if the line output of the tape-
recorder or tape-deck is connected to the AUX terminals of this
amplifier by use of a pin-jack lead, and the Input Selector Switch
is set at the position corresponding to the AUX terminals. All
operations in this case are the same as those for the playback
from tuner (Page 14).
Note that when tape playback is made through the AUX
terminals, the fine input or AUX input terminals of the tape-
should be kept free. If connected to the Recording Output
terminals (REC. OUT) of the amplifier, there will be possible
oscillation by feed-back of signals.
Playback from Tape Connector:
This is a DIN connector and is convenient for simple connec-
tion with a patch cord between the tape-recorder and recording/
playback connectors of this amplifier. Playback from the Tape
Connector is possible if the Monitor Switch is set at the DECK-1
position. (Make certain to use DIN cord only, since the impedance
at REC OUT terminals is kept at 80KQ +10KaQ.)
Playback from Tape Jacks:
When the Tape Playback Jack (17) and the line output of the
tape-recorder are connected and the Monitor Switch (12) Is set
at the DECK-1 position, playback from the tape jack is possible.
In this case, it is necessary to modify the pin-jack cord to the
plug-cord as shown below.
OO
TAPE DECK
OO
TAPE DECK
