4-Channel
System
At
present
there
are
many
4-channel
systems
available,
Of
these,
the
three
most
popular
systems
are
the
CD-4®
_
(com-
pletely
discrete
disc),
the
R.M.@®
(Regular
Matrix)
and
the
S.0.®
systems.
Even
though
the
LUXMAN
L-308
is
a
2-channel
ampli-
fier,
it
can
be
used
with
other
equipment
to
provide
4-channel
sound.
If
you
use
a
CD4@®
de-modulator
unit,
there
will
be
four
output
terminals.
Connect
two
of
these
(such
as
Left-Front
and
Right-Front)
to
the
AUX-1
input
terminals
of
the
amplifier.
For
details,
refer
to
the
De-modulator
Instruction
Manual.

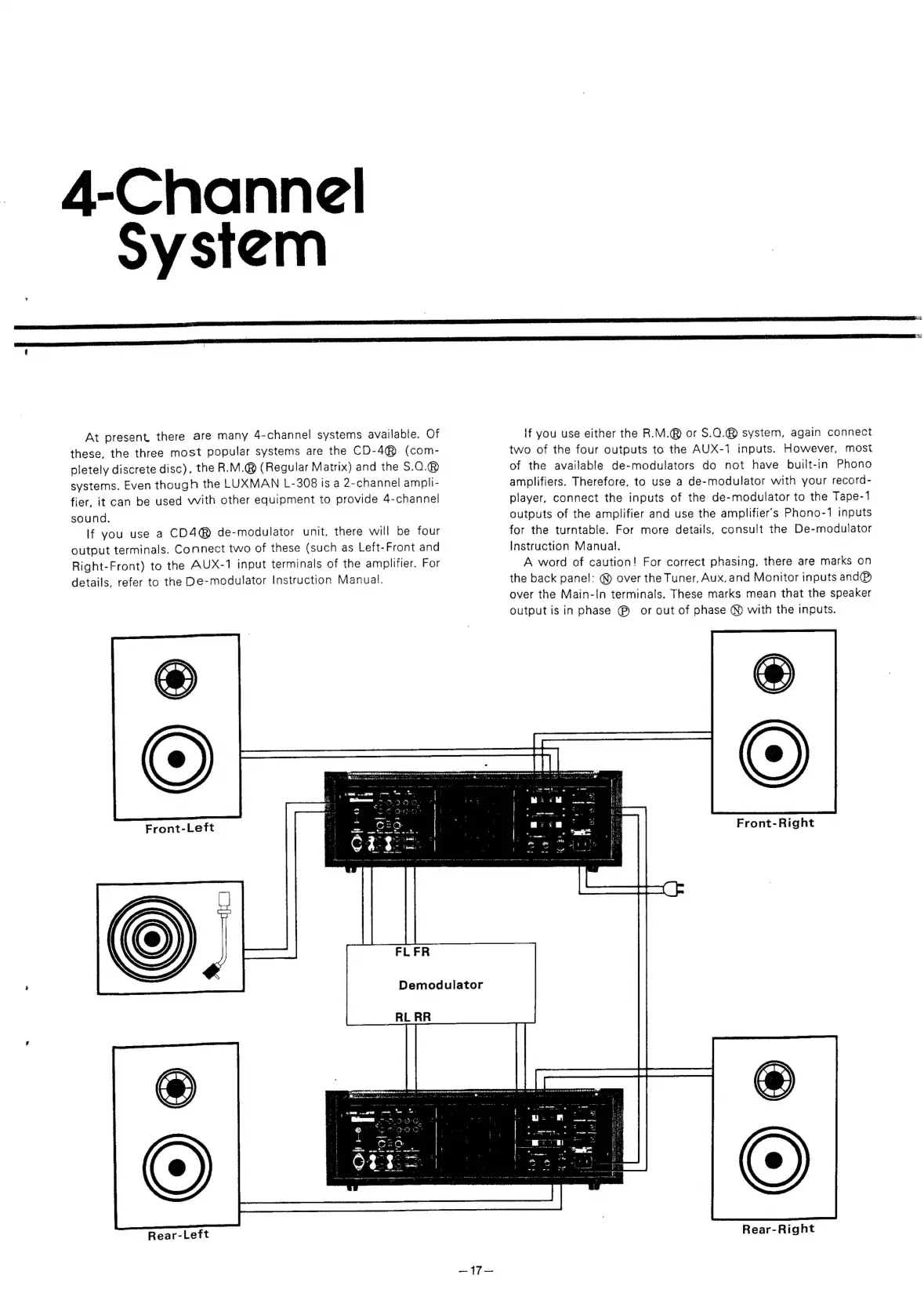

Front-Left
RL RR
Rear-Left
Demodulator
lf you use either the R.M.® or S.O.® system, again connect
two of the four outputs to the AUX-1 inputs. However, most
of the available de-modulators do not have built-in Phono
amplifiers. Therefore, to use a de-modulator with your record-
player, connect the inputs of the de-modulator to the Tape-1
outputs of the amplifier and use the amplifier’s Phono-1 inputs
for the turntable. For more details, consult the De-modulator
Instruction Manual.
A word of caution! For correct phasing, there are marks on
the back panel: @ over the Tuner, Aux, and Monitor inputs and®
over the Main-In terminals. These marks mean that the speaker
output is in phase ® or out of phase ® with the inputs.
Front-Right
Rear-Right
